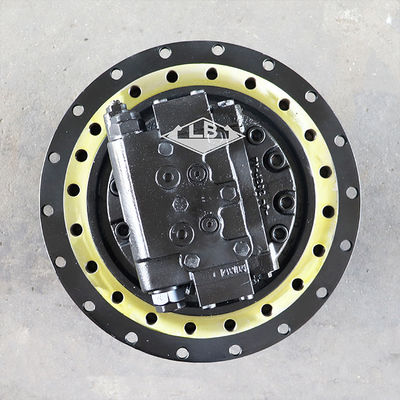

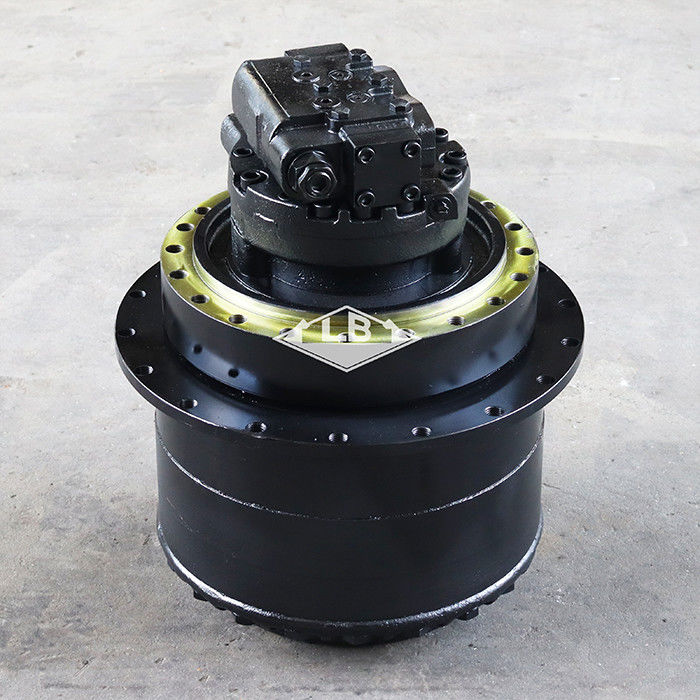

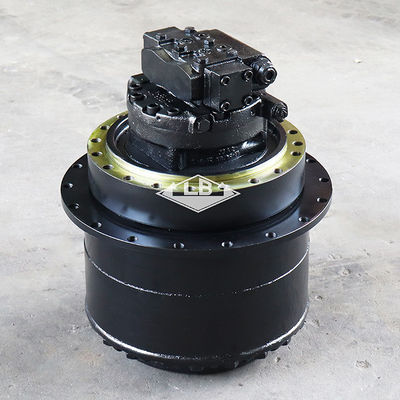

E325B E325B Travel Motor Assy 114-1331 1141331 114-1357 1141357 E325B
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | E325B travel motor assy,E325B travel motor assy,114-1331 |
||
|---|---|---|---|
Product Description
E325B E325B travel motor assy 114-1331 1141331 114-1357 1141357 E325B
PRODUCT PARAMETERS
| Part name | E 325B Final drive | |||||
| Equipment | Apply to E EXCAVATOR | |||||
| Part no. | 114-1331 | |||||
| Frame holes | 21 | |||||
| Sprocket holes | 18 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 380G | |||||
| MOQ | 1 pc | |||||
Product Description
Parts for your 325B L EXCAVATOR:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 114-1386 | [1] | HOUSING-MOTOR | |
| 2. | 9W-6699 | [1] | SEAL GP-DUO-CONE | |
| 3. | 7Y-5217 M | [16] | BOLT-SOCKET HEAD (M20X2.5X70-MM) | |
| 4. | 110-7056 | [3] | GEAR-PLANETARY (23-TEETH) | |
| 5. | 110-7049 | [1] | GEAR-SUN (24-TEETH) | |
| 6. | 094-0574 | [2] | RING-RETAINING | |
| 7. | 110-7051 | [1] | GEAR-SUN (23-TEETH) | |
| 8. | 110-7059 | [1] | CARRIER-PLANETARY | |
| 9. | 114-1540 | [4] | PIN-DOWEL | |
| 10. | 168-8452 | [2] | BALL BEARING | |
| 11. | 7Y-0746 B | [1] | SHIM (0.15-MM THK) | |
| 7Y-0747 B | [1] | SHIM (0.3-MM THK) | ||
| 7Y-0748 B | [1] | SHIM (0.4-MM THK) | ||
| 7Y-0749 B | [1] | SHIM (0.5-MM THK) | ||
| 7Y-0750 B | [1] | SHIM (0.6-MM THK) | ||
| 7Y-0751 B | [1] | SHIM (0.7-MM THK) | ||
| 7Y-0752 B | [1] | SHIM (0.8-MM THK) | ||
| 7Y-0753 B | [1] | SHIM (1-MM THK) | ||
| 7Y-0754 B | [1] | SHIM (1.6-MM THK) | ||
| 12. | 7Y-0219 | [1] | GEAR-COUPLING (58-TEETH) | |
| 13. | 110-7058 | [1] | CARRIER-PLANETARY | |
| 14. | 110-7055 | [1] | GEAR-RING (66-TEETH) | |
| 15. | 7M-8485 | [2] | SEAL-O-RING | |
| 16. | 3E-2338 | [2] | PLUG-PIPE | |
| 17. | 110-7050 | [1] | GEAR-SUN (23-TEETH) | |
| 18. | 114-1359 | [1] | HOUSING | |
| 19. | 7Y-0595 | [2] | SPACER (58X79.6X6-MM THK) | |
| 20. | 8T-4240 | [3] | RING-RETAINING | |
| 21. | 110-7209 | [1] | CARRIER AS | |
| 22. | 7Y-0251 | [3] | BEARING AS-ROLLER | |
| 23. | 094-0584 | [6] | WASHER (40.3X72X1-MM THK) | |
| 24. | 7Y-0213 | [3] | GEAR-PLANETARY (21-TEETH) | |
| 25. | 9X-6032 M | [12] | BOLT-SOCKET HEAD (M10X1.5X30-MM) | |
| 26. | 7X-2568 M | [20] | BOLT (M20X2.5X180-MM) | |
| 27. | 7Y-0896 | [1] | COVER | |
| 28. | 110-7053 | [3] | GEAR-PLANETARY (23-TEETH) | |
| 29. | 7Y-0252 | [3] | BEARING AS-ROLLER | |
| 30. | 094-0579 B | [1] | PLATE (9-MM THK) | |
| 094-0578 B | [1] | PLATE (8-MM THK) | ||
| 094-0580 B | [1] | PLATE (10-MM THK) | ||
| 31. | 7Y-0248 | [1] | SPACER | |
| 32. | 7Y-0225 | [3] | SHAFT-PLANETARY | |
| 33. | 094-0611 | [6] | WASHER (47.3X76X1-MM THK) | |
| 34. | 095-0891 | [6] | PIN-SPRING | |
| 35. | 7Y-0999 | [1] | GEAR-RING (70-TEETH) | |
| 36. | 094-1542 | [6] | BEARING-ROLLER | |
| 37. | 6D-0692 | [1] | SEAL-O-RING | |
| 38. | 094-1528 | [6] | WASHER (53X84X1-MM THK) | |
| 39. | 7Y-0223 | [3] | SHAFT-PLANETARY | |
| 40. | 1U-8846 B | SEALANT-GASKET | ||
| 41. | 096-3216 M | [2] | SETSCREW-SOCKET (M12X1.75X12-MM) | |
| 42. | 8T-4123 | [20] | WASHER (3.62X5.75X0.375-MM THK) |
