584-2566 538-5277 Travel Gear Box 612-2204 613-2198 612-2201 E326GC
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | 584-2566 Travel Gear box,538-5277 Travel Gear box,612-2201 E326GC |
||
|---|---|---|---|
Product Description

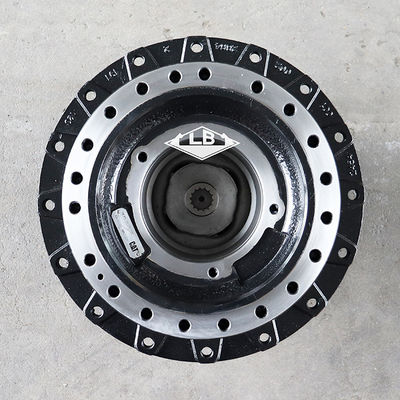

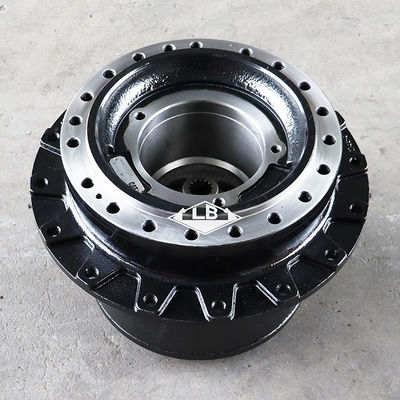

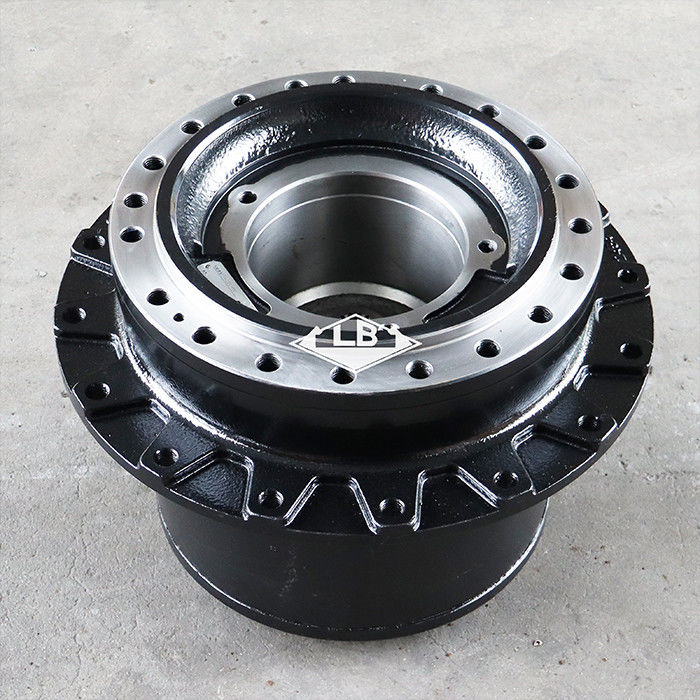

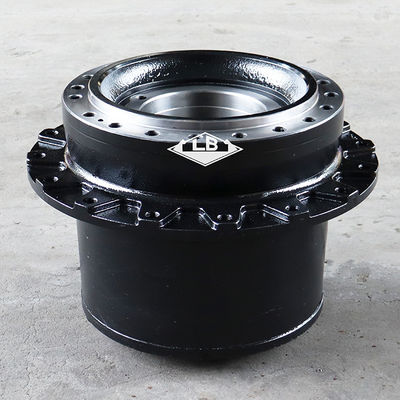

E 326D2 326GC FINAL DRIVE WIHOUT MOTOR 584-2566 538-5277 612-2204 613-2198 612-2201 E326GC TRAVEL GEARBOX
PRODUCT PARAMETERS
| Part name | E 326 326D2 326GC Travel gearbox | |||||
| Equipment | Apply to E EXCAVATOR | |||||
| Part no. | 612-2204 613-2198 612-2201 612-2204 584-2566 538-5277 | |||||
| Frame holes | 20 | |||||
| Sprocket holes | 16 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||
Product Description
612-2201 DRIVE GP-FINAL
S/N MFJ1-UP
WITHOUT MOTOR, RH
PART OF 593-7305 DRIVE & MOUNTING GP-FINAL
FIELD REPLACEMENT ORDER 613-2198
S/N MFJ1-UP
WITHOUT MOTOR, RH
PART OF 593-7305 DRIVE & MOUNTING GP-FINAL
FIELD REPLACEMENT ORDER 613-2198
| Callout # | Part Number | Part Name | Quantity |
| Group Part | |||
| 612-2201 | Drive GP-Final | ||
| 1 | 567-7181 | Hub | 1 |
| 2 | 613-8739 | Gear-Sun | 1 |
| 3 | 566-1452 | Spacer | 1 |
| (8.1X24X5.5-MM Thk) | |||
| 4 | 567-7160 | Spacer | |
| (39X132X6.5-MM Thk) | |||
| 5 | 567-7161 | Spacer | 4 |
| (52X70X7-MM Thk) | |||
| 6 | 567-7162 | Housing | |
| 7 | 613-8737 | Cover AS | 1 |
| 8 | 613-8740 | Shaft | 1 |
| 9 | 567-7166 | Gear-Planetary | 4 |
| 10 | 567-7126 | Gear-Ring | 1 |
| (77-TEETH) | |||
| 11 | 567-7167 | Nut | |
| M | (M250X3-THD) | ||
| 12 | 567-7168 | Planetary AS | 1 |
| 13 | 567-7169 | Planetary AS | 1 |
| 14 | 613-8738 | Ring-Retaining | 1 |
| 15 | 465-7842 | Ring | 4 |
| 16 | 4D-6695 | Seal-O-Ring | 1 |
| 17 | 567-7171 | Seal GP-Duo-Cone | 1 |
| 18 | 567-7172 | Bearing | 4 |
| 19 | 567-7173 | Bearing | 1 |
| 20 | 567-7174 | Bearing | 1 |
| 21 | 567-7180 | Plug AS-Drain | 2 |
| 7M-8485 | Seal-O-Ring | 1 | |
| 22 | 311-0501 | Bolt | 8 |
| M | (M8X1.25X25-MM) | ||
