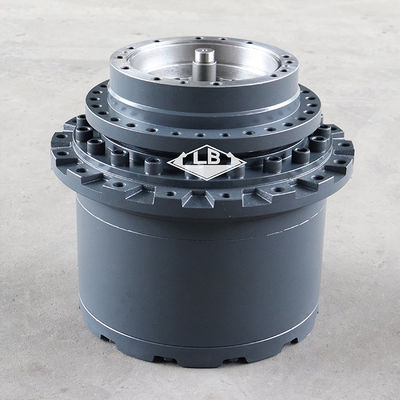

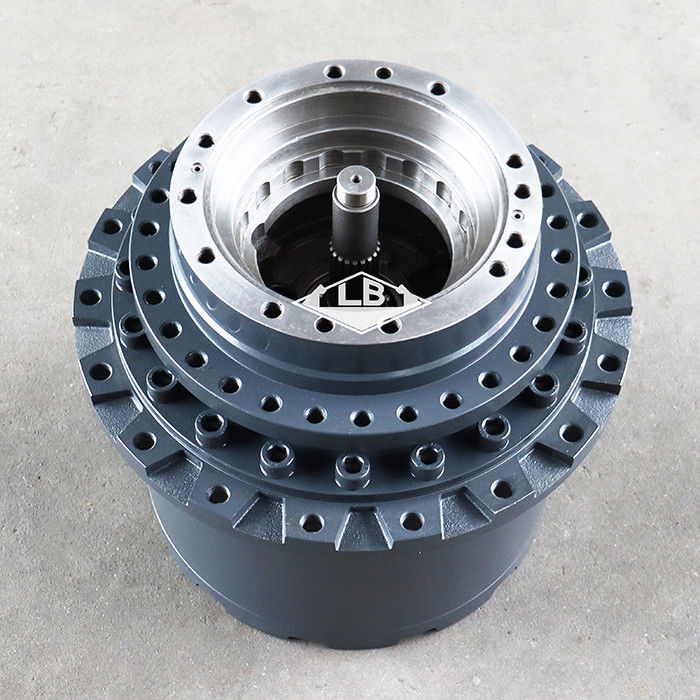

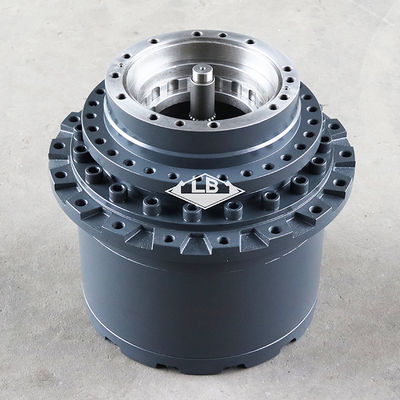

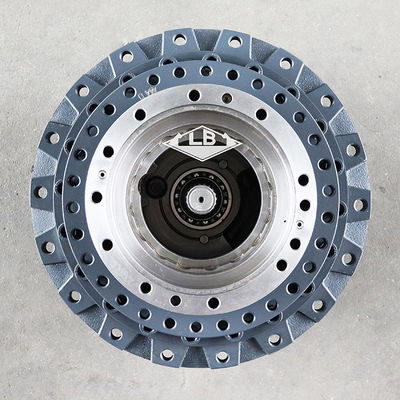

EC220D EC250D EC250E FINAL DRIVE VOE146930359 EC250 TRAVEL GEARBOX
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | Travel Gearbox,final drive,hydraulic final drive |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | EC220D EC250D EC250E Travel gearbox | |||||
| Equipment | Apply to VOLVO EXCAVATOR | |||||
| Part no. | VOE146930359 | |||||
| Frame holes | 30 | |||||
| Sprocket holes | 18 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 290 KG | |||||
| MOQ | 1 pc | |||||
Product Description
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14621718 | Travel gearbox | |||
| VOE14621718 | [1] | Travel gearbox | S/N -230428/ -240159 S/N -270667/ -280026 | |
| VOE14693059 | [1] | Travel gearbox | S/N 270668-270930 S/N 280027-280308 | |
| VOE14735901 | [1] | Travel gearbox | S/N 270931-/ 280309- | |
| 1. | VOE14505739 | Housing | ||
| VOE14505739 | [1] | Housing | S/N -230428/ -240159 S/N -270667/ -280026 | |
| VOE14693060 | [1] | Housing | S/N 230429-/ 240160- S/N 270668-/ 280027- | |
| 2. | VOE14621719 | [1] | Gear | |
| 3. | VOE14505742 | [1] | Seal | |
| 4. | VOE14505744 | [1] | Gear | |
| 5. | VOE14505745 | [1] | Retainer | |
| 6. | VOE14575734 | [1] | Flexible coupling | |
| 7. | VOE14506421 | [1] | Ring retainer | |
| 8. | VOE14575733 | [1] | Gear | |
| 9. | VOE14621720 | [1] | Cover | |
| 10. | VOE14505737 | [1] | Planet carrier | |
| 11. | VOE14505751 | [1] | Planet carrier | |
| 12. | VOE14505756 | [6] | Washer | |
| 13. | VOE14505757 | [3] | Pin | |
| 14. | VOE14505755 | [3] | Planetary gear | |
| 15. | VOE14505754 | [2] | Ring retainer | |
| 16. | VOE14505753 | [1] | Ring | |
| 17. | VOE14505752 | [1] | Gear | |
| 18. | SA9325-06012 | [3] | Spring pin | |
| 19. | SA7117-30320 | [3] | Needle bearing | |
| 20. | VOE14505738 | [1] | Planet carrier | |
| 21. | VOE14505746 | [1] | Planet carrier | |
| 22. | VOE14505748 | [8] | Washer | |
| 23. | VOE14505749 | [4] | Pin | |
| 24. | VOE14505747 | [4] | Planetary gear | |
| 25. | VOE14505753 | [1] | Ring | |
| 26. | VOE951993 | [4] | Spring pin | |
| 27. | SA7117-38520 | [4] | Needle bearing | |
| 28. | VOE14507345 | [1] | Shim | THICK = 1 MM |
| 28. | VOE14507346 | [1] | Shim | THICK = 0,7 MM |
| 28. | VOE14507347 | [1] | Shim | THICK = 0,5 MM |
| 28. | VOE14507348 | [1] | Shim | THICK = 0,1 MM |
| 29. | VOE14505743 | [1] | Seal | S/N 230001-/ 240001- S/N -270930/ -280308 |
| 29. | VOE14565060 | [1] | Seal | S/N 270931-/ 280309- |
| 29. | VOE14505743 | Seal | ||
| 30. | VOE983524 | [2] | O-ring | |
| 31. | VOE14577793 | [2] | Plug | |
| 32. | VOE984370 | [20] | Hex. socket screw | |
| 33. | VOE983919 | [12] | Hex. socket screw | |
| 34. | VOE997963 | [20] | Hexagon screw | |
| 35. | VOE955926 | [20] | Spring washer | S/N 230001-/ 240001- S/N -270930/ -280308 |
| 35. | VOE60110237 | [20] | Washer | S/N 270931-/ 280309- |
| 35. | VOE955926 | Spring washer | ||
| 36. | VOE14556703 | [2] | Bearing | |
| 37. | SA7117-15230 | [1] | Pad |
