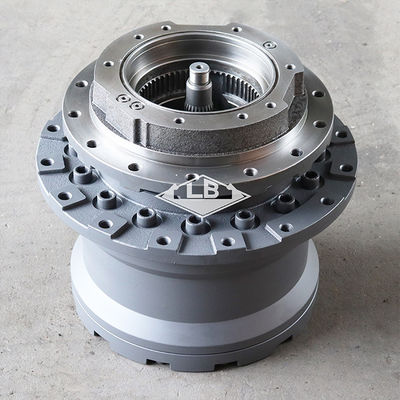

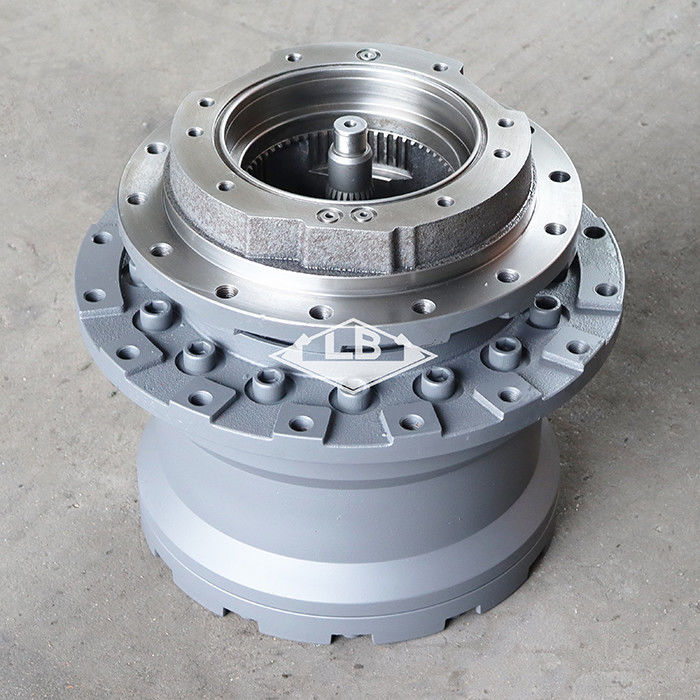

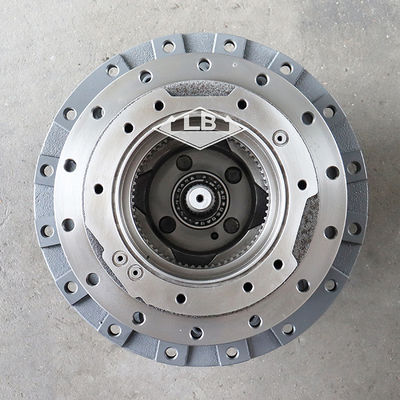

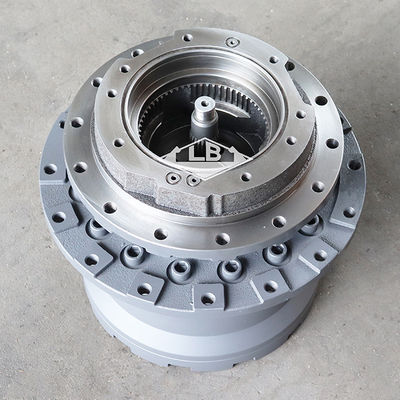

EX120-2 EX120-3 TRAVEL DEVICE 9133211 9123358 TRAVEL REDUCER EX120-3 TRAVEL GEARBOX
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | Travel Gearbox,final drive,hydraulic final drive |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | EX120-2 EX120-3 Travel gearbox | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | 9133211 9123358 | |||||
| Frame holes | 14 | |||||
| Sprocket holes | 16 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 160 KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts on group TRAVEL DEVICE:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00-42. | (9133211) | [2] | TRAVEL DEVICE ASS'Y | (for transportation) |
| 00-42. | 9123358 | [2] | TRAVEL DEVICE ASS'Y | I 9133211 (for assembly of machine) |
| 00. | (9133168) | [1] | MOTOR;OIL | (for transportation) |
| 00. | 9122946 | [1] | MOTOR;OIL | I 9133168 (for assembly of machine) |
| 02. | 4110369 | [1] | SEAL;GROUP | |
| 03. | 4321887 | [2] | BRG.;ROL. | |
| 05. | 1010325 | [1] | SPROCKET | |
| 06. | J931640 | [16] | BOLT | |
| 09. | 4148012 | [1] | PIN;KNOCK | |
| 11. | 1014516 | [1] | CARRIER | |
| 12. | 3049926 | [3] | GEAR;PLANETARY | |
| 13. | 4115435 | [6] | BRG.;NEEDLE | |
| 14. | 4245966 | [3] | PIN | |
| 15. | 4144020 | [3] | PIN;SPRING | |
| 16. | 3043237 | [1] | GEAR;SUN | Y 3072878 |
| 16. | 3072878 | [1] | GEAR;SUN | |
| 17. | 4192982 | [12] | PLATE;THRUST | |
| 18. | 2028797 | [1] | CARRIER | |
| 19. | 4252721 | [1] | SPACER | |
| 20. | 3049925 | [3] | GEAR;PLANETARY | |
| 21. | 4252658 | [3] | BRG.;NEEDLE | |
| 22. | 4178203 | [3] | PIN | |
| 23. | 4192020 | [3] | PIN;SPRING | |
| 24. | 2028798 | [1] | SHAFT;PROP. | |
| 25. | 4258916 | [1] | PIN;STOPPER | |
| 26. | 2028800 | [1] | COVER | |
| 28. | J011230 | [12] | BOLT;SEMS | |
| 30. | 1016124 | [1] | GEAR;RING | |
| 31. | 1016125 | [1] | DRUM | |
| 33. | J931660 | [16] | BOLT | |
| 34. | 4245797 | [3] | PLUG | |
| 35. | 3053559 | [1] | NAME-PLATE | |
| 36. | M492564 | [2] | SCREW;DRIVE | |
| 39. | 3057124 | [1] | NUT | |
| 42. | 3059034 | [1] | HUB | |
| 132. | 4272305 | [28] | BOLT | |
| 134. | J222016 | [28] | WASHER |
