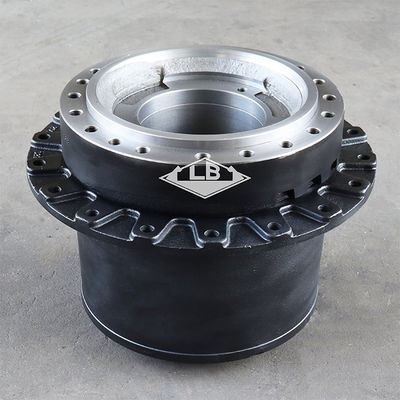

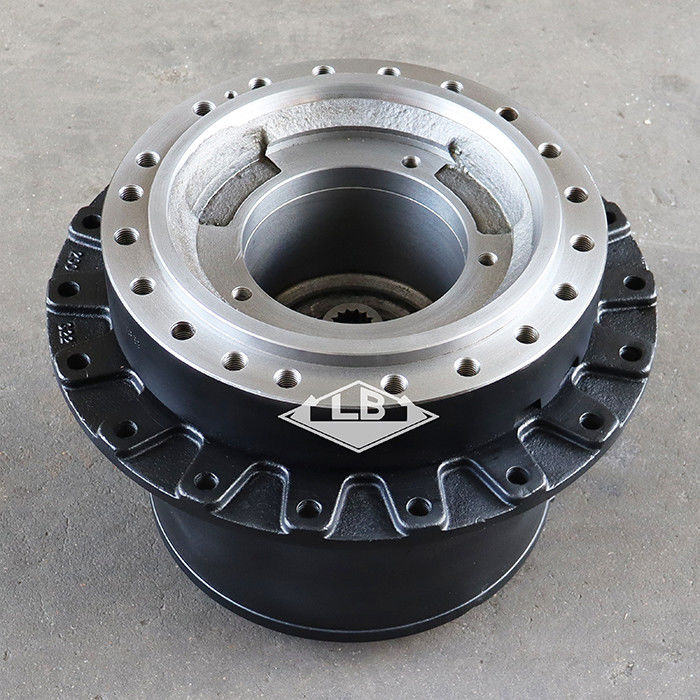

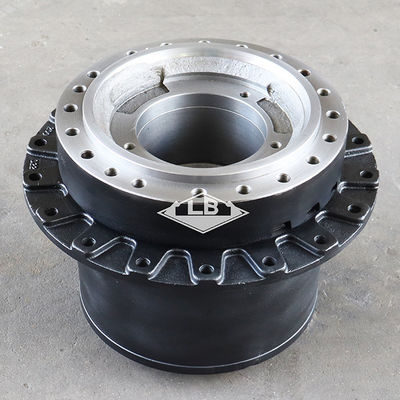

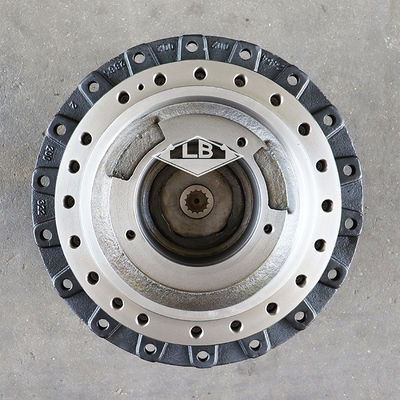

E 330 330GC 330F FINAL DRIVE 538-5278 5385278 E330 GC TRAVEL GEARBOX
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | Travel Gearbox,final drive,hydraulic final drive |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | E 330GC 330F Travel gearbox | |||||
| Equipment | Apply to E EXCAVATOR | |||||
| Part no. | 538-5278 | |||||
| Frame holes | 20 | |||||
| Sprocket holes | 18 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||
Product Description
Parts for your 330F EXCAVATOR:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 567-7158 | [1] | GEAR-SUN (48-TEETH) | |
| 2. | 566-1452 | [1] | SPACER | |
| 3. | 567-7160 | [1] | SPACER | |
| 4. | 567-7161 | [5] | SPACER | |
| 5. | 569-4206 | [1] | HOUSING (SPROCKET) | |
| 6. | 567-7163 | [1] | COVER-FINAL DRIVE | |
| 7. | 569-4210 | [1] | HUB (RH) | |
| 8. | 567-7165 | [1] | SHAFT (CONNECTION) | |
| 9. | 567-7166 | [5] | GEAR-PLANETARY (27-TEETH) | |
| 10. | 567-7126 | [1] | GEAR-RING (77-TEETH) | |
| 11. | 567-7167 M | [1] | NUT (M250X3-THD) | |
| 12. | 569-4208 | [1] | PLANETARY AS | |
| 13. | 569-4209 | [1] | PLANETARY AS | |
| 14. | 567-7170 | [1] | RING-RETAINING | |
| 15. | 465-7842 | [5] | RING | |
| 16. | 4D-6695 | [1] | SEAL-O-RING | |
| 17. | 567-7171 | [1] | SEAL GP-DUO-CONE | |
| 18. | 567-7172 | [5] | BEARING | |
| 19. | 567-7173 | [1] | BEARING | |
| 20. | 567-7174 | [1] | BEARING | |
| 21. | 567-7177 | [1] | PLUG-DRAIN | |
| 22. | 567-7180 | [1] | PLUG-DRAIN | |
| 23. | 311-0501 M | [8] | BOLT (M8X1.25X25-MM) | |
| M | METRIC PART | |||
