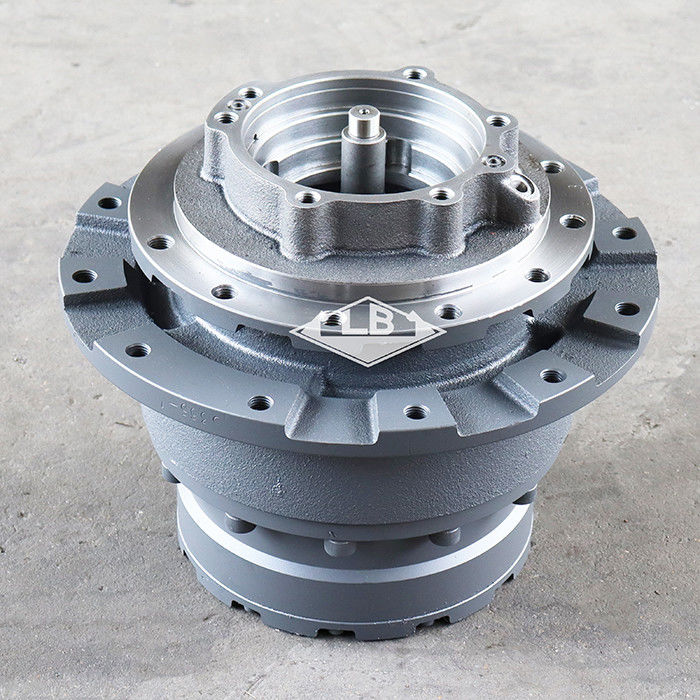

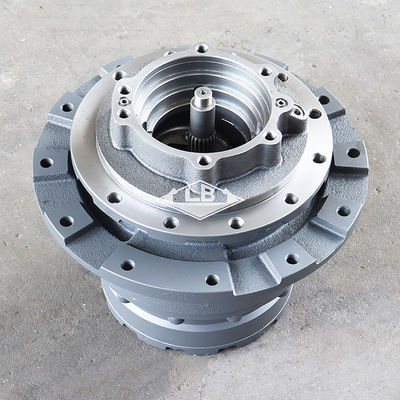

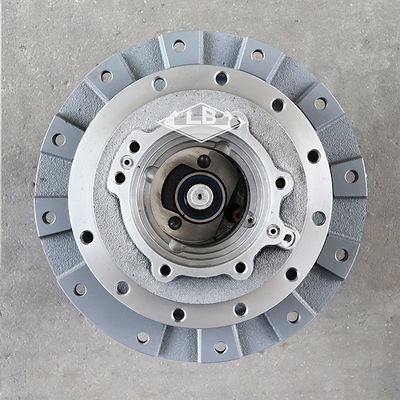

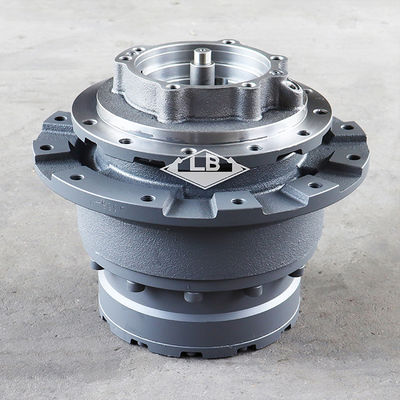

ZX70 ZX75 ZX80 TRAVEL DEVICE ASSY 9224123 9224241 ZX70 Travel gearbox
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | Travel Gearbox,final drive,hydraulic final drive |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | ZX70 ZX80 Travel gearbox | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | 9224123 9224241 | |||||
| Frame holes | 10 | |||||
| Sprocket holes | 12 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 120 KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts on group TRAVEL DEVICE <70,80,K>:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 9224123 | [2] | TRAVEL DEVICE ASS'Y | ||
| 00. | 9190694 | [1] | MOTOR;OIL | I 9204752 (for assembly of machine) |
| 00. | 9204752 | [1] | MOTOR;OIL | (for transportation) |
| 02. | 4468674 | [2] | BRG.;BOLL | |
| 03. | 4082631 | [1] | SEAL;GROUP | |
| 04. | 4468675 | [1] | DRUM | |
| 06. | J931635 | [12] | BOLT | |
| 08. | 4468676 | [1] | GEAR;RING | |
| 09. | M341440 | [12] | BOLT;SOCKET | |
| 10. | 1024217 | [1] | SPROCKET | |
| 12. | 4468678 | [1] | COVER | |
| 13. | 4392320 | [1] | RING | |
| 14. | 4245797 | [3] | PLUG | |
| 15. | 4468679 | [1] | PIN | |
| 16. | 4407802 | [1] | O-RING | |
| 19. | 4468680 | [1] | CARRIER | |
| 20. | 4468681 | [1] | SHAFT;PROP. | |
| 21. | 4468682 | [3] | GEAR;PLANETARY | |
| 22. | 4392321 | [3] | BRG.;NEEDLE | |
| 23. | 4392322 | [6] | PLATE;THRUST 0.5mm | |
| 24. | 4468683 | [3] | PIN | |
| 25. | 4116305 | [3] | PIN;SPRING | |
| 26. | 4392324 | [1] | PLATE;THRUST 3.2mm | |
| 29. | 4468684 | [1] | CARRIER | |
| 30. | 4468685 | [1] | GEAR;SUN | |
| 31. | 4468686 | [3] | GEAR;PLANETARY | |
| 32. | 4468687 | [3] | BRG.;NEEDLE | |
| 33. | 4392326 | [6] | PLATE;THRUST 0.5mm | |
| 34. | 4468688 | [3] | PIN | |
| 35. | 4105691 | [3] | PIN;SPRING | |
| 37. | 3080619 | [1] | NUT | |
| 38. | J401032 | [1] | PIN;KNOCK | |
| 40. | 3094065 | [1] | NAME-PLATE | |
| 41. | M492564 | [2] | SCREW;DRIVE |
