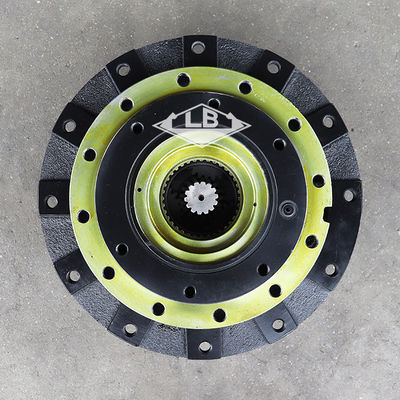

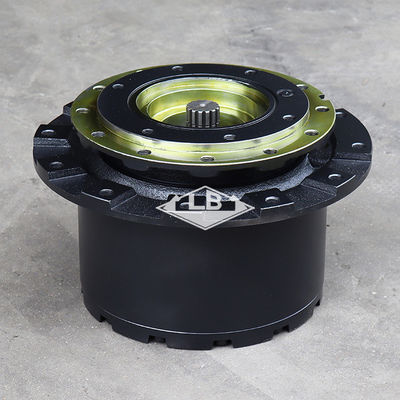

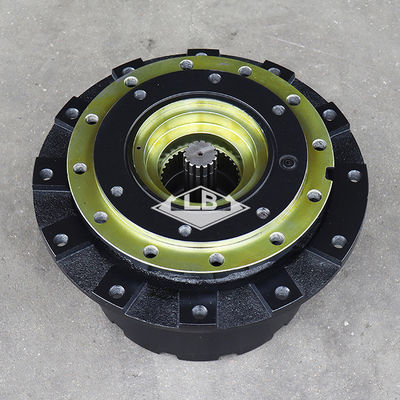

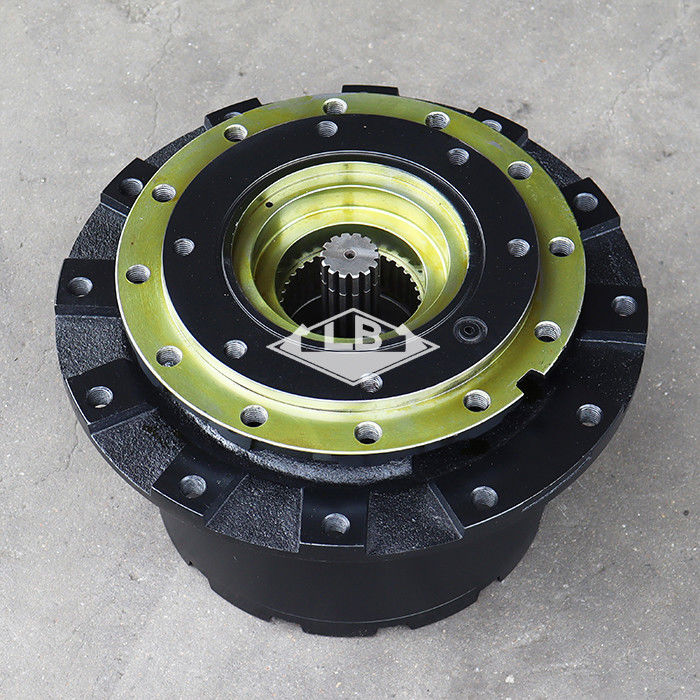

EX60-2 EX60-3 TRAVEL REDUCER 9111033 TRAVEL DEVICE EX60-2 TRAVEL GEARBOX
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | Travel Gearbox,final drive,hydraulic final drive |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | EX60-2 EX60-3 Travel gearbox | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | 9111033 | |||||
| Frame holes | 12 | |||||
| Sprocket holes | 12 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 90 KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts on group TRAVEL DEVICE:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00-48. | 9111033 | [2] | TRAVEL DEVICE ASS'Y | |
| 00. | 9099449 | [1] | MOTOR;OIL | |
| 01. | 1016273 | [1] | HOUSING | |
| 02. | 4192640 | [1] | SPACER | |
| 03. | 991728 | [1] | RING;RETAINING | |
| 04. | 4192639 | [2] | BRG.;ROL. | |
| 05. | 4082631 | [1] | SEAL;GROUP | |
| 06. | 1016274 | [1] | DRUM | |
| 07. | 1012495 | [1] | SPROCKET | |
| 08. | J931635 | [12] | BOLT | |
| 11. | 2031521 | [1] | GEAR;RING | |
| 12. | 3036163 | [1] | NUT | |
| 13. | 4148012 | [1] | PIN;KNOCK | |
| 15. | 2031497 | [1] | CARRIER | |
| 16. | 3054866 | [1] | GEAR;SUN | |
| 17. | 991345 | [1] | RING;RETAINING | |
| 18. | 3054865 | [3] | GEAR;PLANETARY | |
| 19. | 4271103 | [3] | BRG.;NEEDLE | |
| 20. | 4271349 | [6] | PLATE;THRUST | |
| 21. | 4271101 | [3] | PIN | |
| 22. | 4169566 | [3] | PIN;SPRING | |
| 24. | 1016275 | [1] | CARRIER | |
| 25. | 3054864 | [3] | GEAR;PLANETARY | |
| 26. | 4183108 | [3] | BRG.;NEEDLE | |
| 27. | 4269294 | [6] | PLATE;THRUST | |
| 28. | 4271102 | [3] | PIN | |
| 29. | 4169567 | [3] | PIN;SPRING | |
| 30. | J011230 | [12] | BOLT;SEMS | |
| 31. | 4245797 | [3] | PLUG | |
| 33. | 2031498 | [1] | SHAFT;PROP. | |
| 34. | 3036164 | [6] | PLATE | |
| 34. | 3064191 | [6] | PLATE | |
| 35. | 3036165 | [5] | PLATE;FRICTION | |
| 35. | 3064192 | [5] | PLATE;FRICTION | |
| 36. | 3036166 | [1] | PISTON | |
| 37. | 4150683 | [1] | D-RING | |
| 38. | 4150684 | [1] | D-RING | |
| 39. | 3017067 | [1] | SPRING;DISC | |
| 41. | 929231 | [1] | RING | |
| 42. | 4154877 | [1] | O-RING | |
| 43. | 4506418 | [1] | O-RING | |
| 44. | 4192042 | [6] | BOLT;SOCKET | |
| 45. | A590914 | [6] | WASHER;SPRING | |
| 47. | M492564 | [2] | SCREW;DRIVE | |
| 48. | 3061377 | [1] | NAME-PLATE | |
| 134. | J222016 | [20] | WASHER | |
| 135. | 4248606 | [20] | BOLT |
