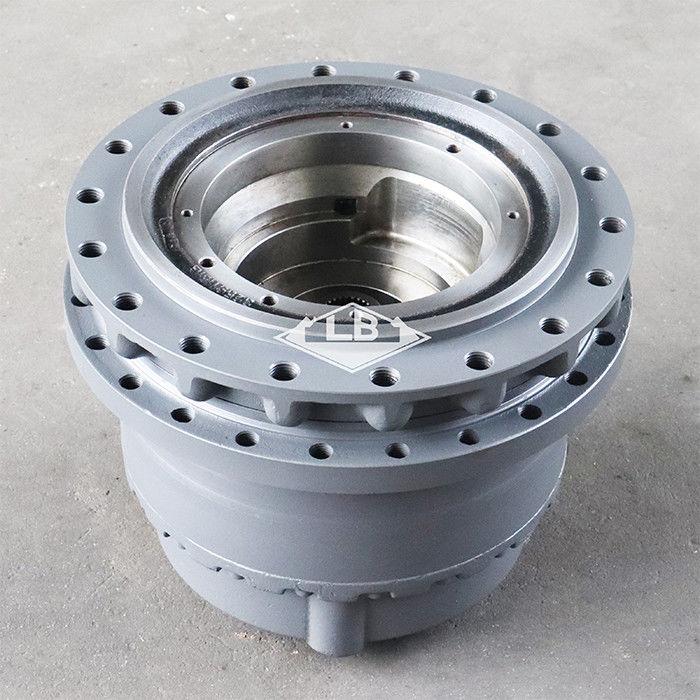

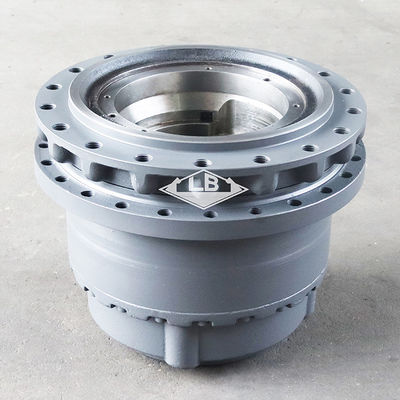

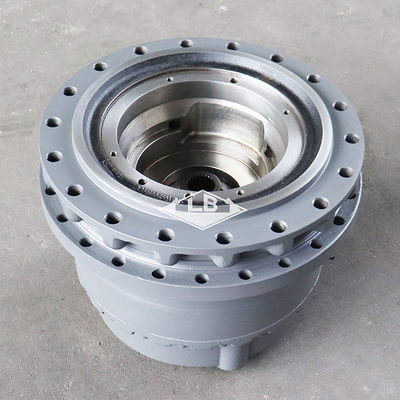

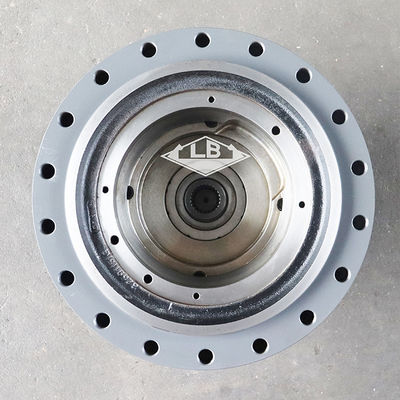

JCB JS360 JCB360 TRACK GEARBOX 05/204600 Gearbox assembly JS360 TRAVEL GEARBOX
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | Travel Gearbox,final drive,hydraulic final drive |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | JS360 JCB Travel gearbox | |||||
| Equipment | Apply to JCB EXCAVATOR | |||||
| Part no. | 05/204600 | |||||
| Frame holes | 30 | |||||
| Sprocket holes | 22 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 285KG | |||||
| MOQ | 1 pc | |||||
Product Description
| Item | Part# | Description | QTY |
| A | 05/204600 | Gearbox assembly | 1 |
| 1 | :05/903839 | Bolt | 20 |
| 2 | :05/903803 | Washer | 2 |
| 3 | :05/903822 | Plug breather | 2 |
| 4 | :05/903840 | 0 Ring | 1 |
| 5 | :05/903841 | Pad | 1 |
| 6 | :332/D1953 | Cover assembly | 1 |
| 7 | :332/D1961 | Gear Sun | 1 |
| 8 | 332/D1962 | Gear 1st reduction | 1 |
| 9 | 332/D1963 | Gear 2nd reduction | 1 |
| 10 | :05/903846 | Bolt | 4 |
| 11 | :05/903847 | Gear planet | 1 |
| 12 | :05/903848 | Bush | 4 |
| 13 | :332/D1965 | Housing gearbox | 1 |
| 14 | :05/903850 | Seal assembly | 1 |
| 15 | :05/903851 | Retainer | 1 |
| 16 | :332/D1972 | Hub | 1 |
| 17 | :332/D1976 | Spacer | 1 |
| 18 | :332/D1994 | O Ring | 1 |
| 19 | :332/D1978 | Coupling | 1 |
| 20 | :332/D1980 | Circlip | 1 |
| 21 | :332/D1987 | Motor Hydraulic See page E2-6-1 for components | 1 |
| 22 | :332/D1983 | Capscrew | 3 |
| 23 | :332/D1975 | Capscrew | 4 |
