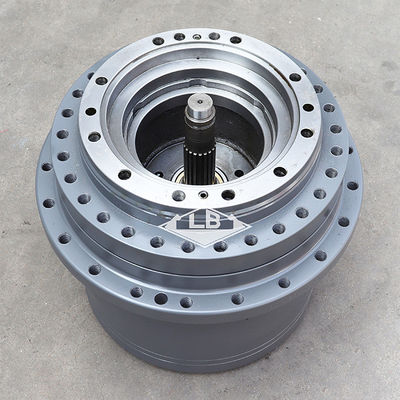

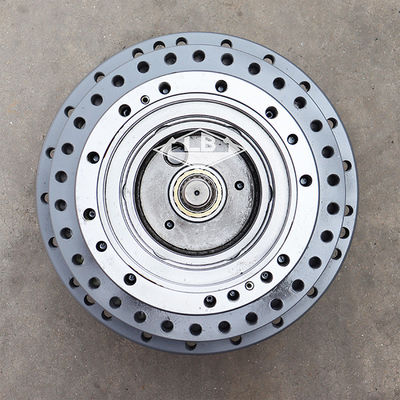

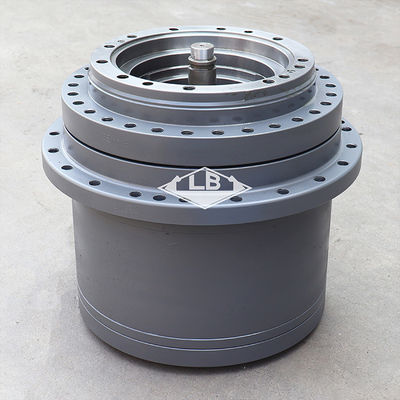

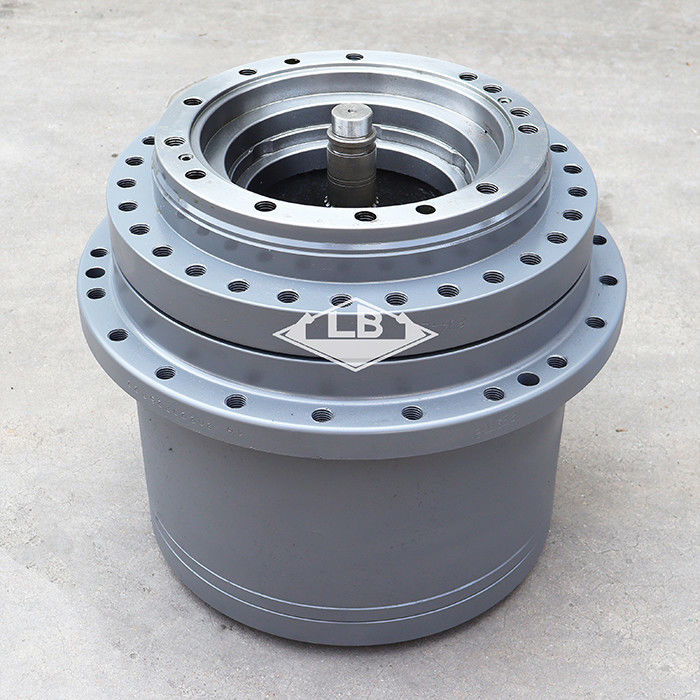

R140-7 R160-7 TRAVEL REDUCTION GEAR XKAH-00367 R140-7 Travel gearbox
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | Travel Gearbox,final drive,hydraulic final drive |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | R140-7 R160-7 Travel gearbox | |||||
| Equipment | Apply to HYUNDAI EXCAVATOR | |||||
| Part no. | XKAH-00367 | |||||
| Frame holes | 30 | |||||
| Sprocket holes | 21 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 205 KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts on group TRAVEL REDUCTION GEAR(TYPE 1):
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| *. | @ | [1] | TRAVEL MOTOR | *-1,*-2 |
| *-1. | XKAH-00367 | [1] | REDUCTION GEAR ASSY | |
| *-11. | XKAH-00368 | [1] | HUB ASSY | |
| 1. | XKAH-00364 | [1] | HUB | |
| 4. | XKAH-00363 | [1] | GEAR-RING(A) | |
| *-12. | XKAH-00369 | [1] | SPINDLE KIT | |
| *-12A. | XKAH-00362 | [1] | SPINDLE ASSY | |
| N2. | XKAH-00361 | [1] | SPINDLE | |
| N8. | XKAH-00360 | [1] | GEAR-COUPLING | |
| 17. | XKAH-00334 | [10] | PIN-PARALLEL | |
| 35. | XKAH-00359 | [10] | BOLT-SOCKET | |
| *-13. | XKAH-00358 | [1] | CARRIER KIT | |
| *-13A. | XKAH-00357 | [1] | CARRIER ASSY | |
| 3. | XKAH-00356 | [1] | CARRIER | |
| 6. | XKAH-00355 | [3] | GEAR-CLUSTER | |
| 9. | XKAH-00354 | [3] | SHAFT-CLUSTER | |
| 14. | XKAH-00353 | [6] | COLLAR-THRUST | |
| 25. | XKAH-00352 | [6] | BEARING-NEEDLE | |
| 34. | XKAH-00351 | [3] | PIN-PARALLEL | |
| 5. | XKAH-00350 | [1] | GEAR-RING(B) | |
| 7. | XKAH-00349 | [1] | GEAR-SUN | |
| 12. | XKAH-00348 | [1] | PIECE-DISTANCE | |
| 13. | XKAH-00347 | [1] | COVER | |
| 15. | XKAH-00346 | [1] | RING | |
| 19. | XKAH-00345 | [1] | COUPLING | |
| 20. | XKAH-00344 | [2] | PLATE-THRUST | |
| 23. | XKAH-00343 | [1] | RING-SEAL | |
| *-14. | XKAH-00342 | [1] | FLOATING SEAL KIT | |
| N31. | XKAH-00341 | [2] | SEAL-FLOATING | |
| 24. | XKAH-00340 | [2] | BEARING-A/BALL | |
| 27. | XKAH-00339 | [10] | PIN-PARALLEL | |
| 28. | XKAH-00194 | [2] | O-RING | |
| 29. | XKAH-00028 | [1] | O-RING | |
| 30. | XKAH-00338 | [3] | PLUG-PT | |
| 32. | XKAH-00337 | [20] | BOLT | |
| 33. | XKAH-00336 | [20] | WASHER-SPRING | |
| 36. | XKAH-00033 | [1] | BALL-STEEL | |
| 40. | XKAH-00335 | [1] | O-RING | |
| 42. | XKAH-00034 | [2] | PIN-PARALLEL | |
| N*-2. | XKAH-00333 | [1] | CONTROL UNIT | |
| N*-3. | XKAH-00322 | [1] | TRAVEL MOTOR UNIT | |
| *-4. | XKAH-00097 | [1] | RELIEF VALVE KIT | |
| K. | XKAH-00366 | [1] | SEAL KIT | SEE ILLUST |
| N. | @ | [1] | NOT SUPPLIED PARTS |
