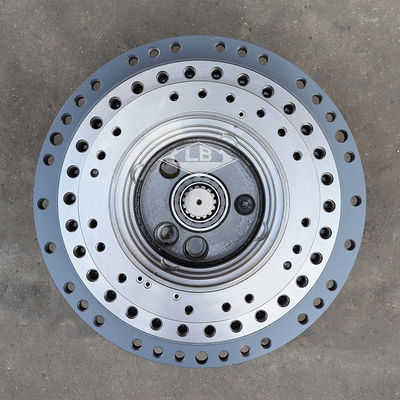

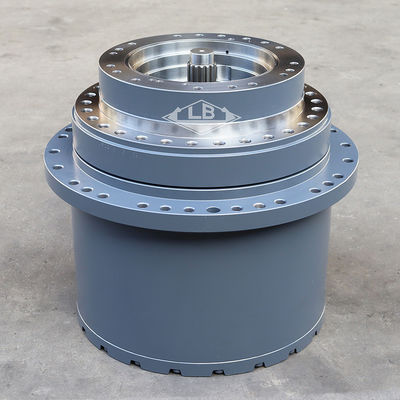

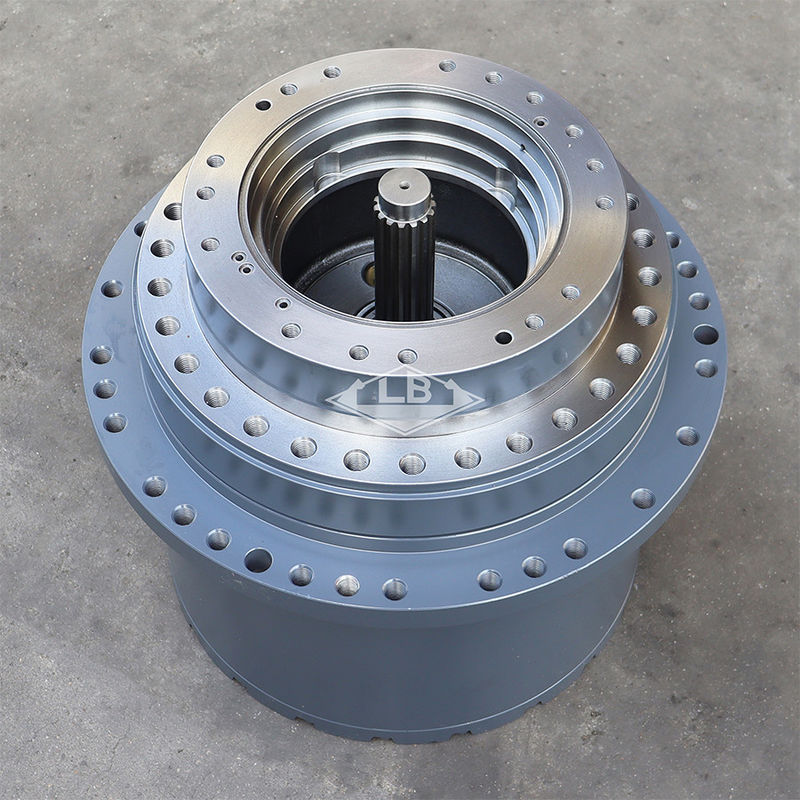

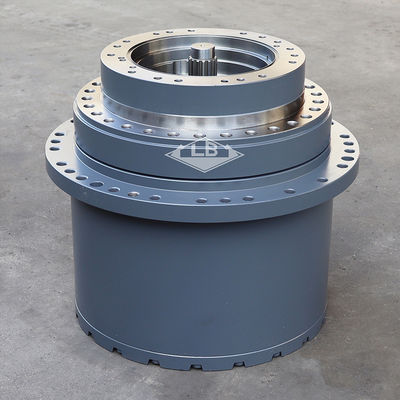

R225-9 R210-7 Final drive without motor 31Q6-40020 31Q6-40021 31Q6-40022 31N6-40040 31N6-40041 31N6-40042 R210-7 Travel gearbox
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | Travel Gearbox,final drive,hydraulic final drive |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | R140-9 R160-9 R180-9 R210-9 R220-9 R225-9 R215-9 Travel gearbox | |||||
| Equipment | Apply to HYUNDAI EXCAVATOR | |||||
| Part no. | 31Q6-40020 31Q6-40021 31Q6-40022 | |||||
| Frame holes | 30 | |||||
| Sprocket holes | 30 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 245 KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts on group TRAVEL REDUCTION GEAR (TYPE 1):
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| *. | @ | [1] | TRAVEL MOTOR ASSY | SEE 4150 |
| *. | @ | [1] | TRAVEL MOTOR ASSY | SEE 4150 |
| *-2. | 31Q6-40020 | [1] | TRAVEL REDUCTION GEAR | |
| *-2. | 31Q6-40021 | [1] | TRAVEL REDUCTION GEAR | |
| *-2. | 31Q6-40022 | [1] | T/REDUCTION GEAR | |
| N1. | XKAQ-00217 | [1] | HOUSING | |
| 2. | XKAQ-00218 | [2] | BEARING-MAIN | |
| 2. | XKAQ-00986 | [2] | BEARING-MAIN | |
| 3. | XKAQ-00219 | [1] | SEAL-FLOATING | |
| 4. | XKAQ-00220 | [1] | SHIM | |
| 5. | XKAQ-00221 | [1] | RETAINER | |
| 6. | XKAQ-00222 | [12] | BOLT-HEX | |
| 7. | XKAQ-00223 | [2] | PIN-PARALLEL | |
| 8. | XKAQ-00224 | [1] | GEAR-RING | |
| 9. | XKAQ-00225 | [1] | COUPLING | |
| 9. | 39Q6-42170 | [1] | COUPLING | |
| 10. | XKAQ-00226 | [1] | CARRIER 2 ASSY | |
| 10-1. | XKAQ-00227 | [1] | CARRIER 2 | |
| 10-2. | XKAQ-00228 | [4] | GEAR-PLANET 2 | |
| 10-3. | XKAQ-00229 | [8] | BEARING-NEEDLE 2 | |
| 10-4. | XKAQ-00230 | [8] | WASHER-THRUST | |
| 10-5. | XKAQ-00231 | [4] | PIN 2 | |
| 10-6. | XKAQ-00232 | [4] | PIN-SPRING | |
| 10-7. | XKAQ-00208 | [2] | RING-THRUST | |
| 11. | XKAQ-00653 | [1] | CARRIER ASSY 1 | |
| 11-1. | XKAQ-00234 | [1] | CARRIER 1 | |
| 11-2. | XKAQ-00235 | [1] | GEAR-SUN 2 | |
| 11-3. | XKAQ-00236 | [1] | RING-RETAINING | |
| 11-4. | XKAQ-00237 | [3] | GEAR-PLANET 1 | |
| 11-5. | XKAQ-00238 | [3] | BEARNG-NEEDLE 1 | |
| 11-6. | XKAQ-00657 | [6] | WASHER-THRUST | |
| 11-7. | XKAQ-00240 | [3] | PIN 1 | |
| 11-8. | XKAQ-00241 | [3] | PIN-SPRING | |
| 11-9. | XKAQ-00655 | [1] | PIN-SPRING | |
| 12. | XKAQ-00402 | [1] | GEAR-SUN 1 | |
| 12. | XKAQ-00795 | [1] | GEAR-SUN 1 | |
| 13. | XKAQ-00243 | [1] | COVER | |
| 14. | XKAQ-00214 | [1] | PAD | |
| 15. | XKAQ-00244 | [20] | BOLT-SOCKET | |
| 16. | XKAQ-00245 | [2] | SCREW-HEX SOCKET | |
| 17. | XKAQ-00246 | [3] | PLUG-HYDRAULIC | |
| 18. | XKAQ-00247 | [3] | O-RING | |
| 19. | XKAQ-00248 | [1] | NAME PLATE | |
| 19. | XKAQ-00990 | [1] | NAME PLATE |
