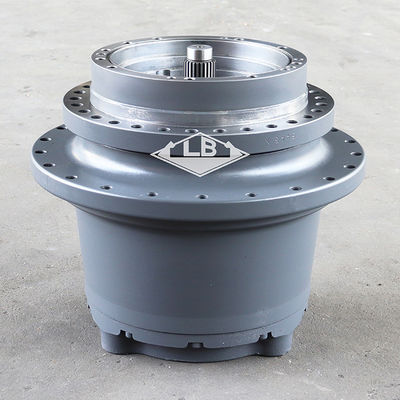

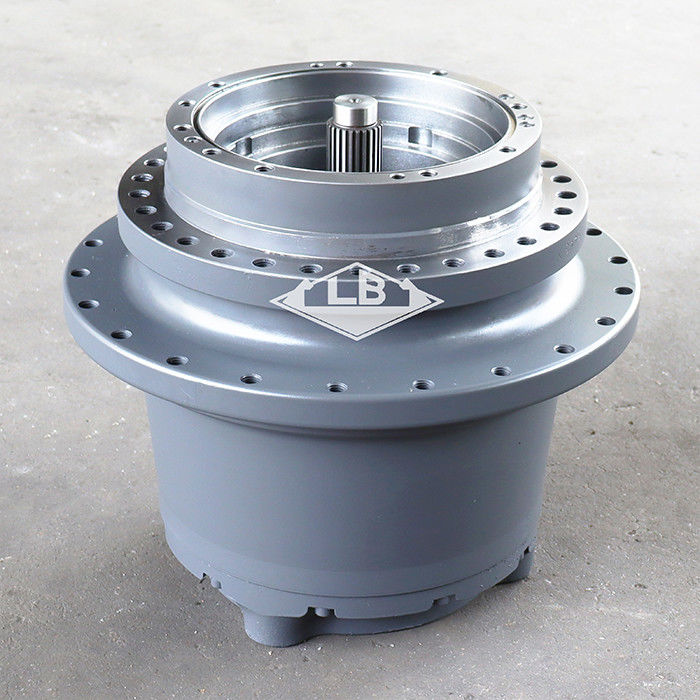

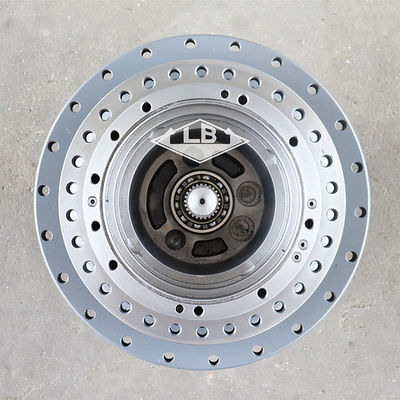

JCB JS200 JS205 JS220 FINAL DRIVE 20/925465 JRA0264 JRA0121 20/925318 JCB220 TRAVEL GEARBOX
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | Travel Gearbox,final drive,hydraulic final drive |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | JS200 JS205 JS220 JCB220 Travel gearbox | |||||
| Equipment | Apply to JCB EXCAVATOR | |||||
| Part no. | 20/925465 JRA0264 JRA0121 20/925318 | |||||
| Frame holes | 30 | |||||
| Sprocket holes | 22 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||
Product Description
| Pos. | Part No | Qty | Parts name | Comments | |
|---|---|---|---|---|---|
| A. | 20/925318 | [2] | Motor Travel | Gearbox not available as a sub-assembly. | |
| 1. | 05/901963 | [10] | Capscrew | ||
| 2. | 05/903801 | [1] | Cover set | ||
| 2. | 05/903821 | [1] | Cover assembly | ||
| 3. | 05/903822 | [2] | Plug breather | ||
| 3. | 05/903802 | [2] | Plug breather | ||
| 4. | 05/903803 | [2] | Washer | ||
| 5. | 05/903820 | [1] | Pad | ||
| 5. | 05/901926 | [1] | Pad thrust | ||
| 6. | 05/903819 | [1] | O Ring | ||
| 7. | 20/951592 | [1] | Gear Sun Gear Track Motor/Gearbox | ||
| 8. | 05/903805 | [1] | Gear reduction set 1st planet | ||
| 9. | 05/903806 | [1] | Gear reduction set 2nd planet | ||
| 10. | 05/903807 | [5] | Circlip | ||
| 11. | 20/951596 | [5] | Gear Planetary Gear Assem Track Motor/Gearbox | ||
| 12. | 05/903809 | [1] | Nut | ||
| 13. | 05/903859 | [1] | Housing with bearing | ||
| 14. | 05/903811 | [1] | Seal assembly | ||
| 15. | 05/903812 | [1] | Ring centering | ||
| 20. | 05/903899 | [1] | Motor track | ||
| 23. | 05/903838 | [5] | Spacer | ||
