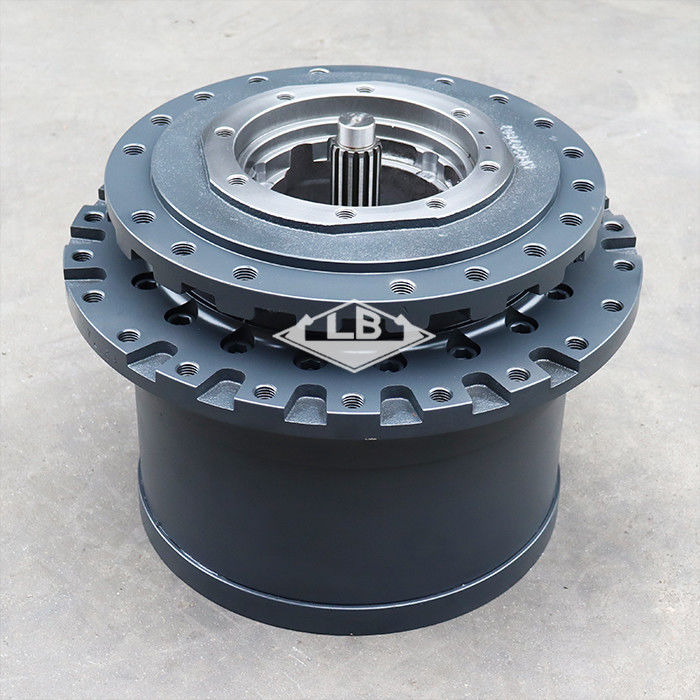

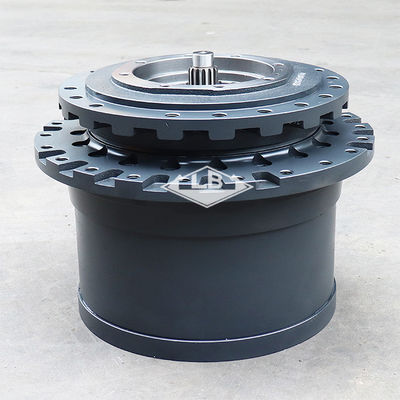

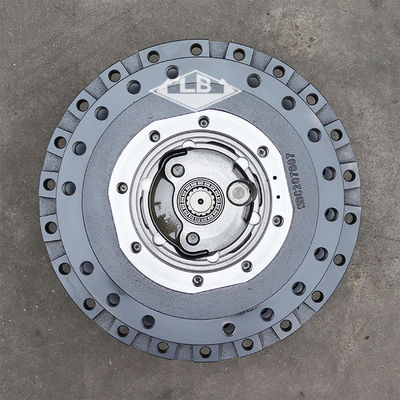

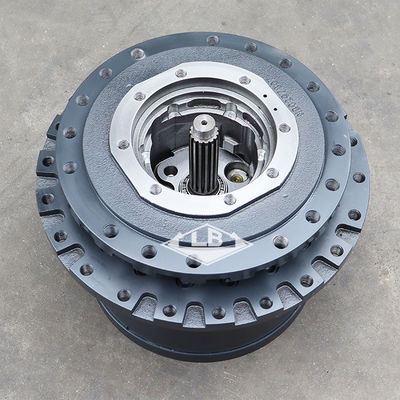

SK200-6 ED150 TRAVEL MOTOR REDUCER YN53D00008F1 YN53D00008F2 YN53D00008F3 SK200-6 TRAVEL GEARBOX
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | Travel Gearbox,final drive,hydraulic final drive |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | SK200-6 Travel gearbox | |||||
| Equipment | Apply to Kobelco EXCAVATOR | |||||
| Part no. | YN53D00008F1 YN53D00008F2 YN53D00008F3 | |||||
| Frame holes | 17 | |||||
| Sprocket holes | 22 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||
Product Description
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | YN53D00008F1 | [1] | HYDRAULIC MOTOR | KOB (PROPELLING) Superseded by part number: YN53D00008F3 |
| . . | YN53D00008F2 | [1] | REDUCER | KOB ASSY (PROPELLING) Superseded by part number: YN53D00008F3 |
| . . | YN53D00008F3 | [1] | HYDRAULIC MOTOR | KOB REDUCTION ASSY (PROPELLING) |
| 1. | YN53D00008S001 | [1] | COVER | KOB |
| 2. | YN53D00008S002 | [1] | ROTOR DISTRIBUTOR | KOB (F1 ONLY) |
| 3. | YN53D00008S003 | [3] | PIN | KOB (F1 ONLY) |
| 4. | LQ15V00005S004 | [3] | BEARING | KOB NEEDLE |
| 5. | YN53D00008S005 | [6] | WASHER | KOB |
| 6. | YN53D00008S006 | [3] | GEAR | KOB PLANETARY |
| 7. | ZP26D04022 | [3] | PIN | KOB SPRING (F1 Only) |
| 8. | LQ15V00005S008 | [1] | PLATE | KOB THRUST |
| 9. | YN53D00008S009 | [1] | GEAR | KOB SUN |
| 10. | YN53D00008S010 | [1] | GEAR | KOB SUN |
| 11. | YN53D00008S011 | [1] | SHAFT, PLANETARY CAR | KOB ROTOR (F1 ONLY) |
| 12. | YN53D00008S012 | [3] | PIN | KOB (F1 ONLY) |
| 13. | YN53D00004S013 | [3] | BEARING | KOB NEEDLE |
| 14. | YN53D00008S014 | [3] | GEAR | KOB PLANETARY |
| 15. | ZP26D06036 | [3] | PIN | KOB Roll, OD 06 x 36mm Long (F1 Only) |
| 16. | YN53D00008S016 | [6] | THRUST WASHER | KOB |
| 17. | YN53D00008S017 | [1] | GEAR | KOB RING |
| 18. | YN53D00008S018 | [1] | HOUSING | KOB (F1, F2 ONLY) |
| 19. | YN53D00008S019 | [2] | BEARING | KOB |
| 20. | YN53D00008S020 | [1] | SHIM | KOB |
| 21. | YN53D00008S021 | [2] | WASHER | KOB |
| 22. | YN53D00004S022 | [1] | RING | KOB |
| 23. | YN53D00008S023 | [1] | SEAL | KOB FLOATING |
| 24. | ZS23C10025 | [15] | SCREW,Hex Socket Head, M10 x 25mm | KOB M10 x 1.50 x 25mm Superseded by part number: ZS28C10025 |
| 25. | ZS23C16080 | [19] | CAPSCREW,Hex Socket Head, M16 x 80mm | KOB SCREW M16 x 2.0 x 80mm (F1, F2 ONLY) |
| 26. | ZE82T12000 | [2] | PLUG | KOB 3/4" PT |
| 27. | YN53D00008S027 | [1] | ROTOR | KOB (F2, F3 ONLY) |
| 28. | YN53D00008S028 | [3] | PIN | KOB (F2, F3 ONLY) |
| 29. | ZP26D05032 | [3] | PIN | KOB Spring (F2, F3 Only) |
| 30. | YN53D00008S030 | [1] | ROTOR | KOB (F2, F3 ONLY) |
| 31. | YN53D00008S031 | [3] | PIN | KOB SPRING (F2, F3 ONLY) |
| 32. | ZP26D08040 | [3] | PIN | KOB SPRING (F2, F3 ONLY) |
| 33. | YN53D00008S033 | [1] | HOUSING | KOB HOUSING (F3 ONLY) Superseded by part number: YN53D00008S018 |
| 34. | ZS23C16090 | [19] | SCREW,Hex Socket Head, M16 x 90mm | KOB M16 x 2.0 x 90mm (F3 Only) |
| . . | YN53D00008R100 | [1] | KIT | KOB REPAIR, CONSISTS OF REF. 4(3), 5(6), 6(3), 27(1), 28(3), 29(3) (F2, F3 ONLY) |
| . . | YN53D00008R200 | [1] | REPAIR KIT | KOB CONSISTS OF REF. 13(3), 14(3), 16(6), 30(1), 31(3), 32(3) (F2, F3 ONLY) |
