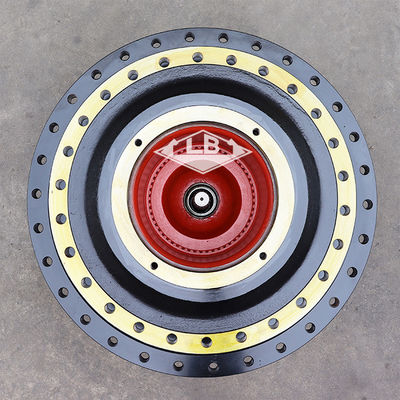

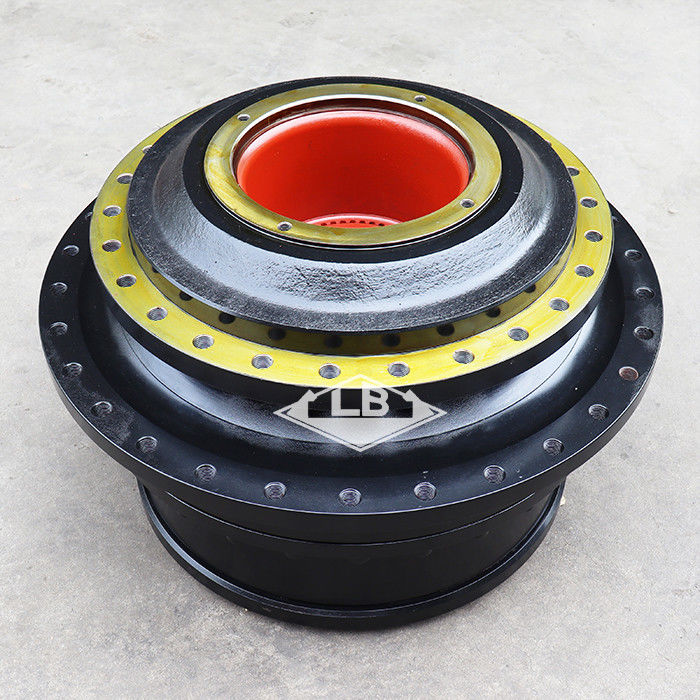

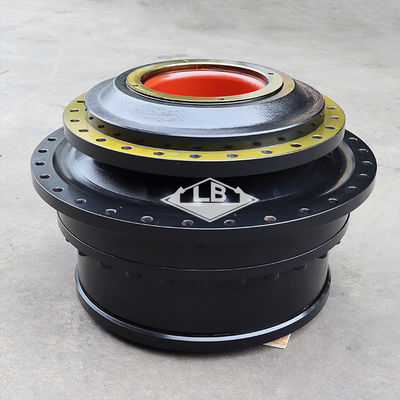

EX1200 EX1200-6 ZX1800-6 TRAVEL DEVICE YB60001978 9301480 9270013 9279168 EX1200-6 TRAVEL GEARBOX
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | Travel Gearbox,final drive,hydraulic final drive |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | EX1200-6 Travel gearbox | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | YB60001978 9301480 9270013 9279168 | |||||
| Frame holes | 26 | |||||
| Sprocket holes | 30 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 1300 KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts on group TRAVEL DEVICE:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 9270013 | [1] | TRAVEL DEVICE | I 9301480 <for assembly of machine> | |
| (9301480) | [1] | TRAVEL DEVICE | <for transportation> | |
| 00. | 1013435 | [1] | SPINDLE | |
| 02. | J931860 | [4] | BOLT | |
| 03. | A590918 | [4] | WASHER;SPRING | |
| 04. | 4271596 | [1] | O-RING | |
| 06. | 4688059 | [1] | MOTOR;OIL | |
| 07. | 1033971 | [1] | DRUM | |
| 09. | 2027546 | [1] | SUPPORT | |
| 10. | M341230 | [18] | BOLT;SOCKET | |
| 11. | 4082698 | [1] | SEAL;GROUP | |
| 12. | 4224213 | [1] | BRG.;ROL. | |
| 13. | 4236786 | [1] | BRG.;ROL. | |
| 15. | 4661591 | [1] | SPROCKET | |
| 17. | 4085857 | [30] | WASHER | |
| 18. | J932785 | [30] | BOLT | |
| 19. | 3045511 | [1] | NUT | |
| 20. | 3045510 | [1] | PLATE;LOCK | |
| 21. | J901430 | [2] | BOLT | |
| 22. | 4471870 | [4] | BRG.;SPH.ROL. | |
| 23. | 1030005 | [1] | CARRIER | |
| 24. | 3094471 | [4] | GEAR;PLANETARY | |
| 26. | 959503 | [4] | RING;RETAINING | |
| 27. | 4235272 | [4] | PIN;SPRING | |
| 28. | 4464815 | [4] | PIN | |
| 29. | 4263905 | [1] | SPACER | |
| 30. | 3094470 | [1] | GEAR;SUN | |
| 32. | 4236701 | [1] | O-RING | |
| 33. | J782470 | [28] | BOLT;SOCKET | |
| 35. | 1030106 | [1] | GEAR;RING | |
| 37. | 2047641 | [1] | CARRIER | |
| 38. | 3093778 | [4] | GEAR;PLANETARY | |
| 39. | 4452484 | [4] | BRG.;NEEDLE | |
| 40. | 4201913 | [8] | PLATE;THRUST | |
| 41. | 4464814 | [4] | PIN | |
| 42. | 4239705 | [4] | PIN;SPRING | |
| 43. | 4219641 | [1] | SPACER | |
| 44. | 3093780 | [1] | GEAR;SUN | |
| 46. | 2047640 | [1] | CARRIER | |
| 47. | 3093777 | [3] | GEAR;PLANETARY | |
| 48. | 4464813 | [3] | PIN | |
| 49. | 4096554 | [3] | BRG;NEEDLE | |
| 50. | 4239572 | [6] | PLATE;THRUST | |
| 51. | 4149437 | [3] | PIN;SPRING | |
| 53. | 4484178 | [1] | SPACER | |
| 54. | 2047642 | [1] | SHAFT;PROP. | |
| 56. | 1030007 | [1] | COVER | |
| 57. | 4160767 | [1] | BRG.;BALL | |
| 58. | 4277474 | [1] | PIN;STOPPER | |
| 59. | J901435 | [26] | BOLT | |
| 60. | A590914 | [26] | WASHER;SPRING | |
| 61. | 4462824 | [3] | PLUG | |
| 62. | 439641 | [2] | CORK | |
| 63. | 429597 | [2] | CORK | |
| 64. | 425175 | [2] | CORK | |
| 65. | 429597 | [2] | CORK | |
| 67. | +++++++ | [1] | NAME-PLATE | |
| 68. | M492564 | [2] | SCREW;DRIVE | |
| 200. | (9301479) | [1] | T.MISSION | <for transportation> |
