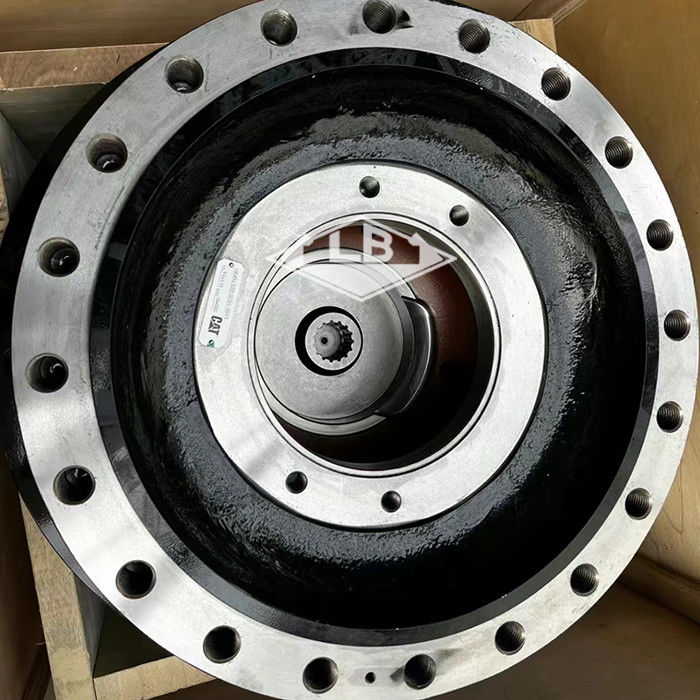

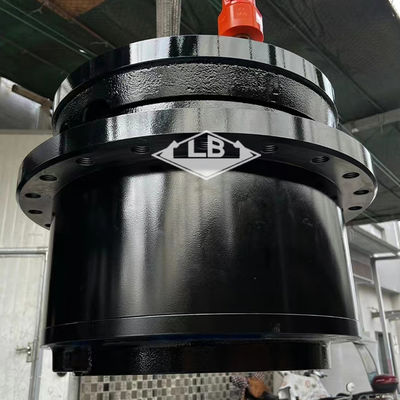

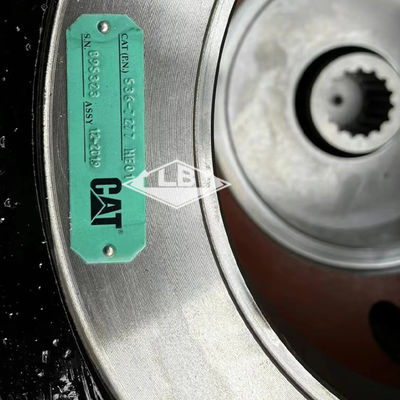

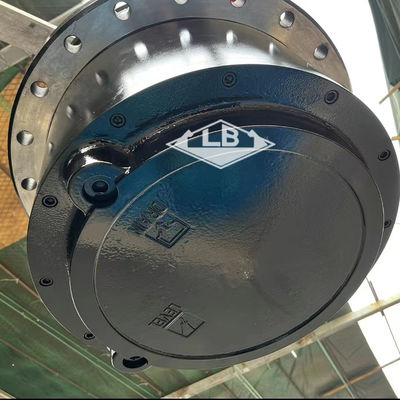

E Original NEW E374F E374D FINAL DRIVE 513-0384 513-0387 513-0833 513-0836 315-4480 E 374 TRAVEL GEARBOX
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | Travel Gearbox,final drive,hydraulic final drive |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | E 374 Travel gearbox | |||||
| Equipment | Apply to E EXCAVATOR | |||||
| Part no. | 513-0834 513-0837 | |||||
| Frame holes | -- | |||||
| Sprocket holes | -- | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 730 KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts for your 374F EXCAVATOR:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 7Y-0808 B | [1] | SHIM (1.6-MM THK) | |
| 2. | 7Y-1469 | [1] | COUPLING | |
| 3. | 7Y-1493 | [1] | SPACER (8.7X50X14-MM THK) | |
| 4. | 136-2920 | [1] | COVER | |
| 5. | 136-2921 | [1] | GEAR-SUN (22-TEETH) | |
| 6. | 136-2922 | [1] | GEAR-SUN (19-TEETH) | |
| 7. | 136-2923 | [1] | GEAR-SUN (20-TEETH) | |
| 8. | 136-2924 | [3] | GEAR-PLANETARY (31-TEETH) | |
| 9. | 136-2925 | [3] | GEAR-PLANETARY (23-TEETH) | |
| 10. | 136-2926 | [4] | GEAR-PLANETARY (22-TEETH) | |
| 11. | 136-2927 | [1] | GEAR-RING (86-TEETH) | |
| 12. | 136-2928 | [1] | GEAR-RING (68-TEETH) | |
| 13. | 136-2930 | [1] | CARRIER-PLANETARY | |
| 14. | 136-2932 | [3] | SHAFT-PLANETARY | |
| 15. | 136-2933 | [4] | SHAFT-PLANETARY | |
| 16. | 136-2934 | [1] | CARRIER AS | |
| 136-2931 | [3] | SHAFT-PLANETARY | ||
| 17. | 136-2943 | [1] | RING-RETAINING | |
| 18. | 136-2945 | [1] | SPACER (203X233X8.5-MM THK) | |
| 19. | 136-2947 | [1] | CARRIER-PLANETARY | |
| 20. | 136-2948 | [6] | PIN-DOWEL | |
| 21. | 136-2949 | [1] | GEAR-COUPLING (83-TEETH) | |
| 22. | 199-4728 | [1] | HOUSING (SPROCKET) | |
| 23. | 214-7880 | [1] | SEAL GP-DUO-CONE | |
| 214-7879 | [2] | RING-TORIC | ||
| 24. | 451-2178 | [18] | WASHER-HARD (33X56X6-MM THK) | |
| 25. | 452-3523 | [1] | HOUSING-MOTOR | |
| 26. | 453-4193 M | [18] | BOLT (M30X3.5X260-MM) | |
| 27. | 094-0584 | [6] | WASHER (40.3X72X1-MM THK) | |
| 28. | 096-3216 M | [2] | SETSCREW-SOCKET (M12X1.75X12-MM) | |
| 29. | 099-5194 | [7] | PIN-SPRING | |
| 30. | 136-2944 | [2] | SPACER (61X95.1X10-MM THK) | |
| 31. | 136-2946 | [3] | BEARING-CAGED | |
| 32. | 136-2959 B | [1] | SHIM (0.3-MM THK) | |
| 136-2962 B | [1] | SHIM (0.6-MM THK) | ||
| 136-2963 B | [1] | SHIM (0.7-MM THK) | ||
| 136-2964 B | [1] | SHIM (0.8-MM THK) | ||
| 136-2965 B | [1] | SHIM (1-MM THK) | ||
| 136-2966 B | [1] | SHIM (1.6-MM THK) | ||
| 37. | 163-1656 | [2] | CONE-SPECIAL TAPERED | |
| 38. | 163-1657 | [2] | CUP-SPECIAL TAPERED | |
| 40. | 136-2967 | [1] | SEAL-O-RING | |
| 41. | 3E-2338 | [2] | PLUG-PIPE | |
| 42. | 4I-7576 | [14] | WASHER (66.3X104X3-MM THK) | |
| 43. | 7M-8485 | [2] | SEAL-O-RING | |
| 44. | 7Y-0667 | [1] | RING-RETAINING | |
| 45. | 7Y-0912 | [11] | BEARING AS-ROLLER | |
| 46. | 173-9683 M | [10] | BOLT (M30X3.5X90-MM) | |
| 47. | 8T-3957 M | [12] | BOLT-SOCKET HEAD (M12X1.75X30-MM) | |
| 48. | 8T-4240 | [3] | RING-RETAINING |
