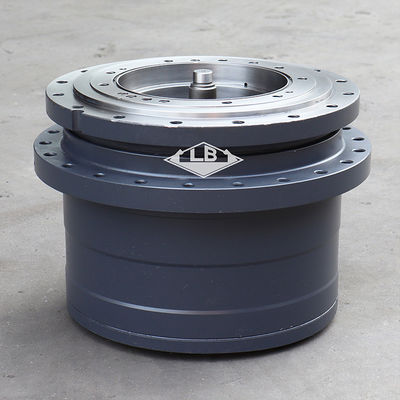

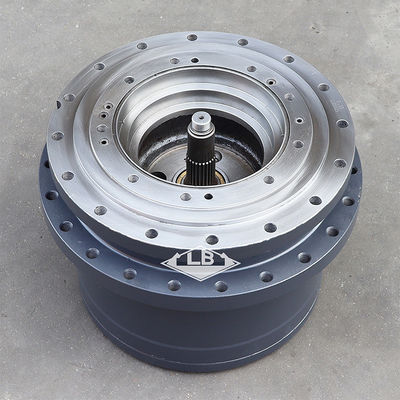

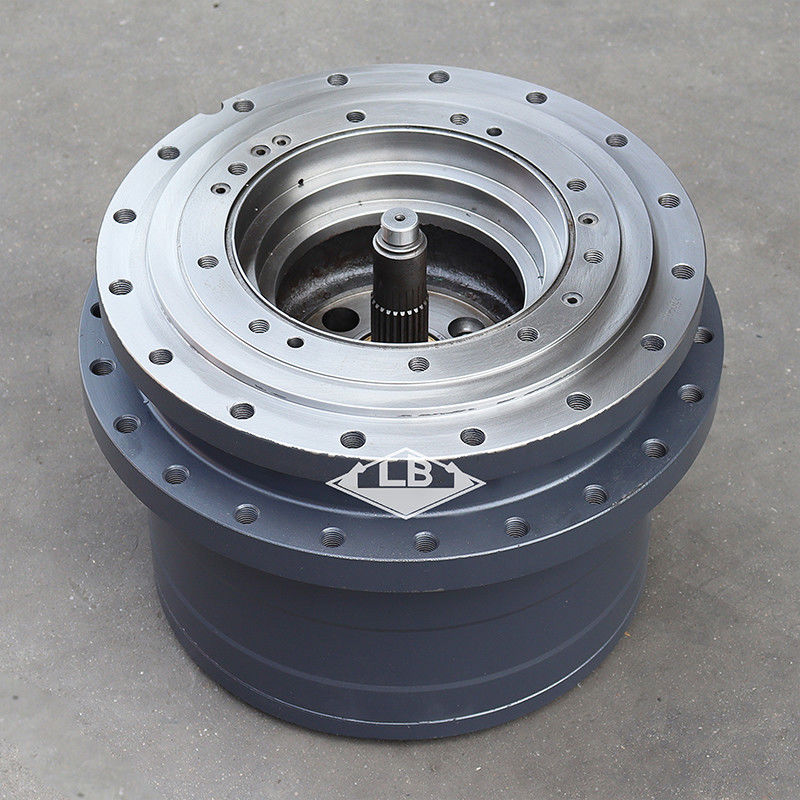

EC135B EC140B Travel gearbox SA8230-33470 VOE14524182 EC140 Travel gearbox
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | final drive on excavator,travel reduction gear,travel gear box |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | EC140 Travel gearbox | |||||
| Equipment | Apply to VOLVO EXCAVATOR | |||||
| Part no. | SA8230-33470 VOE14524182 | |||||
| Frame holes | 16 | |||||
| Sprocket holes | 22 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 180 KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts on group Travel gearbox:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| SA8230-33470 | [1] | Travel gearbox | ||
| 1. | SA8230-32570 | [1] | Cover | |
| 2. | SA8230-33210 | [12] | Bolt | |
| 3. | SA8230-32590 | [3] | Plug | |
| 4. | VOE983524 | [3] | O-ring | |
| 5. | [2] | Seal | ||
| 6. | SA8230-32450 | [2] | Bearing | |
| 7. | SA8230-32580 | [1] | Nut | |
| 8. | SA8230-32610 | [4] | Plug | |
| 9. | [1] | Housing | ||
| 10. | SA8230-32470 | [4] | Planetary Gear | |
| 11. | SA8230-32430 | [4] | Needle Bearing | |
| 12. | SA8230-32550 | [4] | Race | |
| 13. | VOE14534292 | [4] | Washer | |
| 14. | SA8230-32500 | [4] | Pressure Plate | |
| 15. | SA8230-32530 | [4] | Screw | |
| 16. | SA8230-33270 | [4] | Spring Pin | |
| 17. | SA8230-32460 | [1] | Gear | |
| 18. | SA8230-32520 | [1] | Washer | |
| 19. | SA8230-33480 | [1] | Holder | |
| 20. | SA8230-33500 | [3] | Planetary Gear | |
| 21. | SA8230-32440 | [3] | Needle Bearing | |
| 22. | SA8230-32560 | [3] | Race | |
| 23. | SA8230-32490 | [3] | Washer | |
| 24. | SA8230-33490 | [1] | Gear | |
| 25. | SA8230-33540 | [1] | Plate | |
| 100. | SA8230-32620 | [1] | Sealing Kit | INCL 4,5 |
| 200. | VOE14526218 | [1] | Overhaul kit | INCL 11,12,13,16,18, 21,22,23 |
