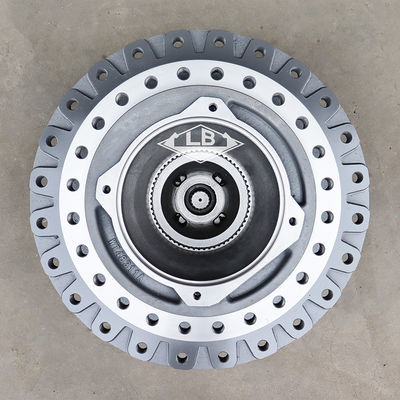

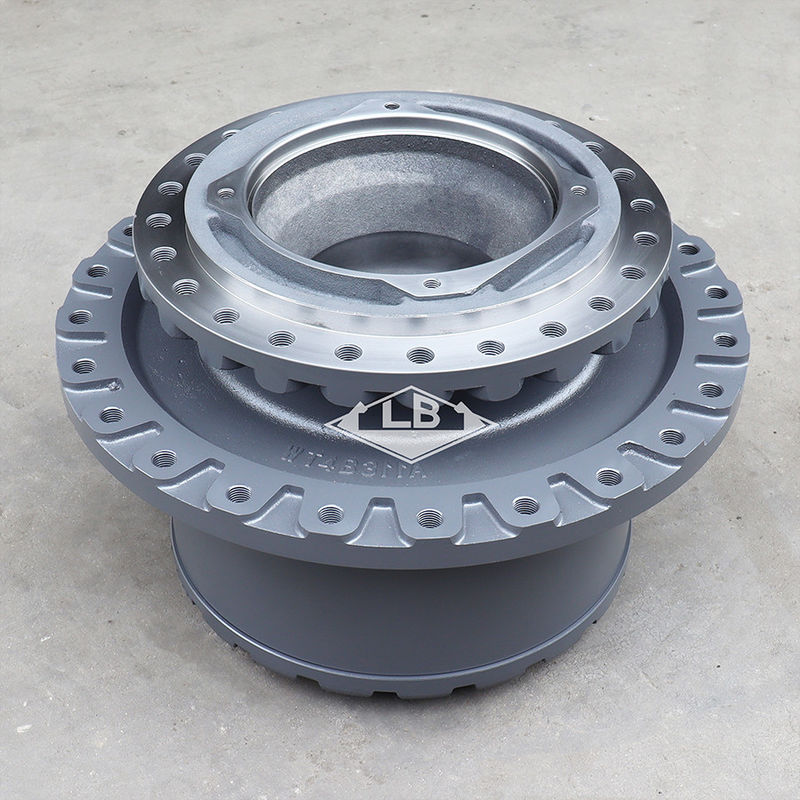

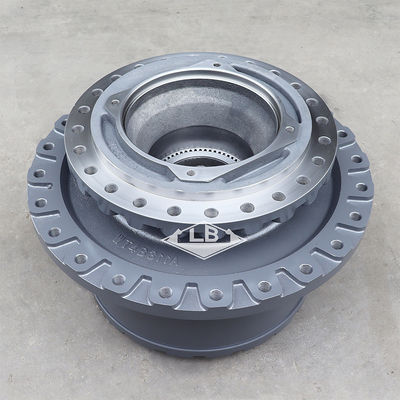

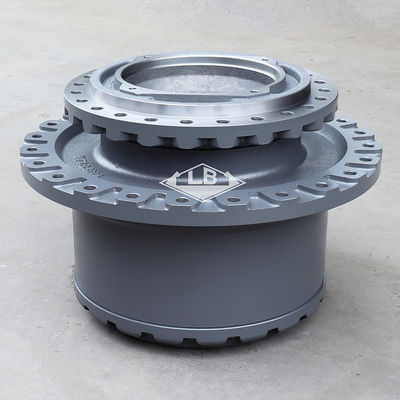

ZX650 ZX670 TRAVEL DEVICE 9254462 4641493 Final drive without motor ZX670 Travel gearbox
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | final drive on excavator,travel reduction gear,travel gear box |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | ZX650 ZX670 Travel gearbox | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | 9254462 4641493 | |||||
| Frame holes | 24 | |||||
| Sprocket holes | 24 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 850 KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts on group TRAVEL DEVICE:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 4641493 | [1] | T.MISSION (TRAVEL) | ||
| 01. | 0985601 | [1] | CARRIER | |
| 02. | 0985602 | [3] | GEAR;PLANETARY | |
| 03. | 0985603 | [3] | BRG.;NEEDLE | |
| 04. | 0985604 | [6] | WASHER;THRUST | |
| 05. | 0985605 | [3] | SHAFT | |
| 06. | 0985606 | [3] | PIN;SPRING | |
| 07. | 0985607 | [1] | WASHER | |
| 08. | 0985634 | [1] | CARRIER | |
| 09. | 0985635 | [3] | GEAR;PLANETARY | |
| 10. | 0985610 | [3] | BRG.;NEEDLE | |
| 11. | 1108008 | [6] | WASHER;THRUST | |
| 12. | 1108009 | [3] | SHAFT | |
| 13. | 0985613 | [3] | PIN;SPRING | |
| 14. | 0985614 | [1] | WASHER | |
| 15. | 0985615 | [1] | CARRIER | |
| 16. | 0985616 | [4] | GEAR;PLANETARY | |
| 17. | 0985611 | [8] | WASHER;THRUST | |
| 18. | 0985617 | [4] | SHAFT | |
| 19. | 0985618 | [4] | PIN;SPRING | |
| 20. | 0985619 | [1] | GEAR;SUN | |
| 21. | 0985637 | [1] | GEAR;SUN | |
| 22. | 0985636 | [1] | GEAR;SUN | |
| 23. | 0985622 | [1] | GEAR;RING | |
| 24. | 0985623 | [1] | CASE | |
| 25. | 4350347 | [1] | SEAL;GROUP | |
| 26. | 4200411 | [2] | BRG.;ROL. | |
| 27. | 0985624 | [1] | NUT | |
| 28. | 0985625 | [1] | PLATE;LOCK | |
| 29. | 0985626 | [2] | BOLT | |
| 30. | 0985627 | [1] | CASE | |
| 31. | 0985628 | [4] | PIN | |
| 32. | 4672724 | [1] | COVER | |
| 33. | 0985630 | [1] | BUTTON | |
| 34. | 0985631 | [1] | BRG.;BALL | |
| 35. | 0985632 | [20] | BOLT | |
| 36. | 0124934 | [3] | BOLT;SOCKET | |
| 37. | 0985633 | [20] | WASHER;SPRING |
