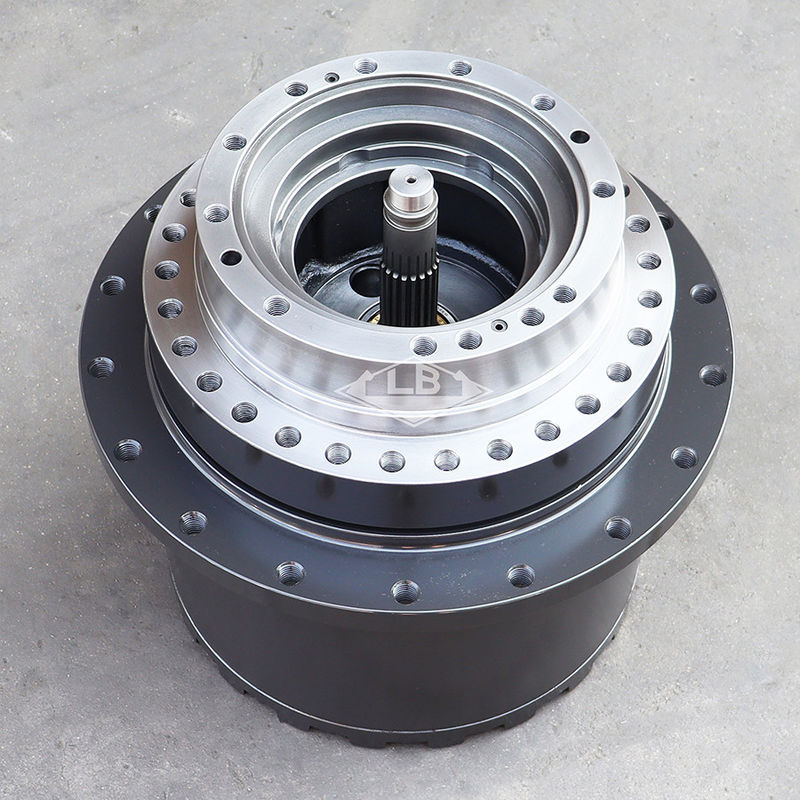

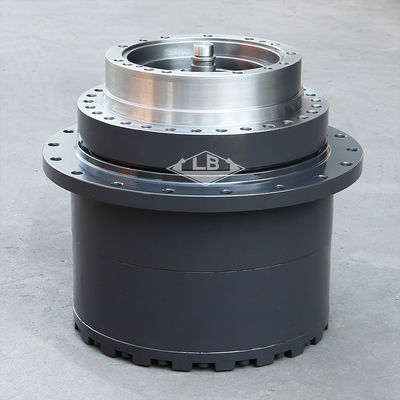

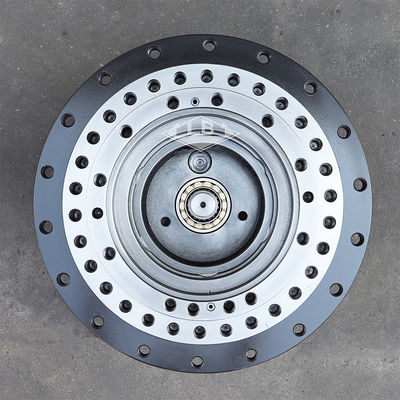

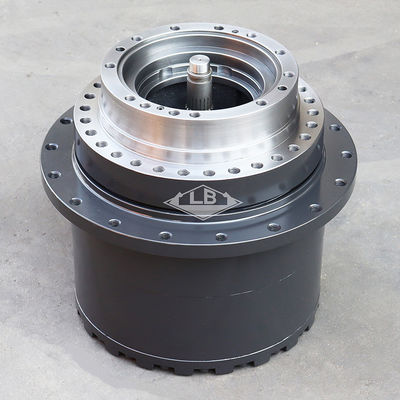

EC240 Travel reduction gearbox SA7117-34050 VOE14528735 EC240B Travel gearbox
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | digger final drive,final drive planetary,reduction gear |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | EC240 Travel gearbox | |||||
| Equipment | Apply to VOLVO EXCAVATOR | |||||
| Part no. | SA7117-34050 VOE14528735 | |||||
| Frame holes | 30 | |||||
| Sprocket holes | 18 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 290 KG | |||||
| MOQ | 1 pc | |||||
Product Description
| VOE14528735 | [1] | Gearbox | ||
| 1. | VOE14528715 | [1] | Housing | |
| 2. | VOE14538940 | [2] | Bearing | |
| 3. | SA7117-34120 | [1] | Ring gear | |
| 4. | SA9016-21818 | [20] | Hex. socket screw | |
| 5. | VOE14528720 | [1] | Seal | |
| 6. | VOE14883847 | [3] | Plug | |
| 7. | SA7117-34190 | [1] | Retainer | |
| 8. | VOE997446 | [12] | Hexagon screw | |
| 9. | SA7117-34200 | [1] | Planet carrier | |
| 10. | SA7117-34210 | [1] | Carrier | |
| 11. | SA7117-34220 | [4] | Planetary gear | |
| 12. | SA7117-34230 | [8] | Needle bearing | |
| 13. | SA7117-34240 | [8] | Washer | |
| 14. | SA7117-34250 | [4] | Pin | |
| 15. | VOE13951991 | [4] | Spring pin | |
| 16. | VOE14528721 | [1] | Planet carrier | |
| 17. | VOE14528722 | [1] | Carrier | |
| 18. | SA1036-00310 | [1] | Thrust ring | |
| 19. | SA7117-34280 | [1] | Gear | |
| 20. | SA8230-21020 | [1] | Thrust ring | |
| 21. | SA7117-34290 | [1] | Retaining ring | |
| 22. | SA7117-34300 | [3] | Planetary gear | |
| 23. | SA7117-34310 | [3] | Needle bearing | |
| 24. | VOE14556491 | [6] | Washer | |
| 25. | SA7117-34330 | [3] | Pin | |
| 26. | SA9325-06012 | [3] | Spring pin | |
| 27. | SA7117-34340 | [1] | Planet carrier | |
| 28. | SA7117-34350 | [1] | Planet carrier | |
| 29. | SA7117-34370 | [3] | Pin | |
| 30. | SA9325-06012 | [3] | Spring pin | |
| 31. | SA7117-34360 | [1] | Gear | |
| 32. | SA7117-34440 | [1] | Retaining ring | |
| 33. | SA7117-34420 | [3] | Planetary gear | |
| 34. | SA7117-34380 | [3] | Needle bearing | |
| 35. | SA7117-34390 | [3] | Washer | |
| 36. | SA7117-34400 | [3] | Washer | |
| 37. | SA9541-01034 | [3] | Retaining ring | |
| 38. | SA1036-00290 | [2] | Thrust ring | |
| 39. | SA7117-34430 | [1] | Gear | |
| 40. | VOE14601854 | [1] | Cover | |
| 41. | VOE955922 | [16] | Spring washer | |
| 42. | VOE993025 | [16] | Hexagon screw | |
| 43. | SA7117-34140 | [1] | Shim | 0.1t |
| 44. | SA7117-34150 | [1] | Shim | 0.3t |
| 45. | SA7117-34160 | [1] | Shim | 0.5t |
| 46. | SA7117-34170 | [1] | Shim | 1.0t |
| 47. | SA1036-00450 | [1] | Shim | |
| 48. | SA1036-00460 | [1] | Shim | |
| 49. | VOE990557 | [3] | O-ring | |
| 100. | VOE14526221 | [1] | Overhaul kit |
