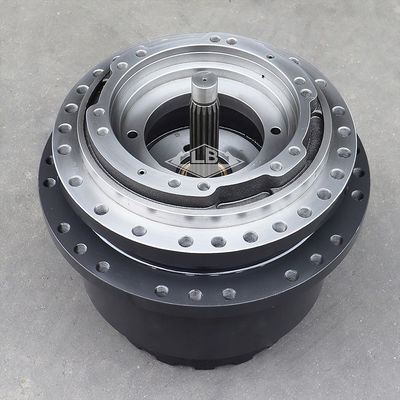

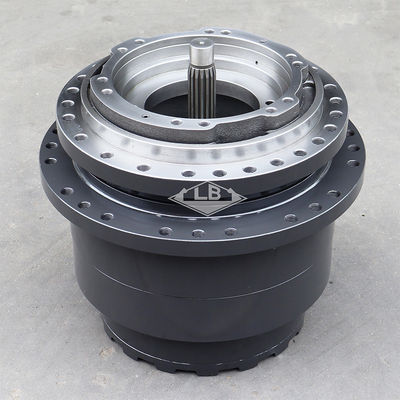

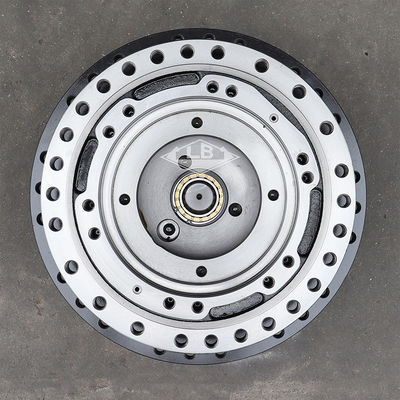

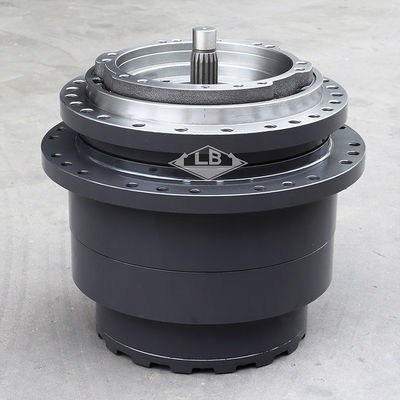

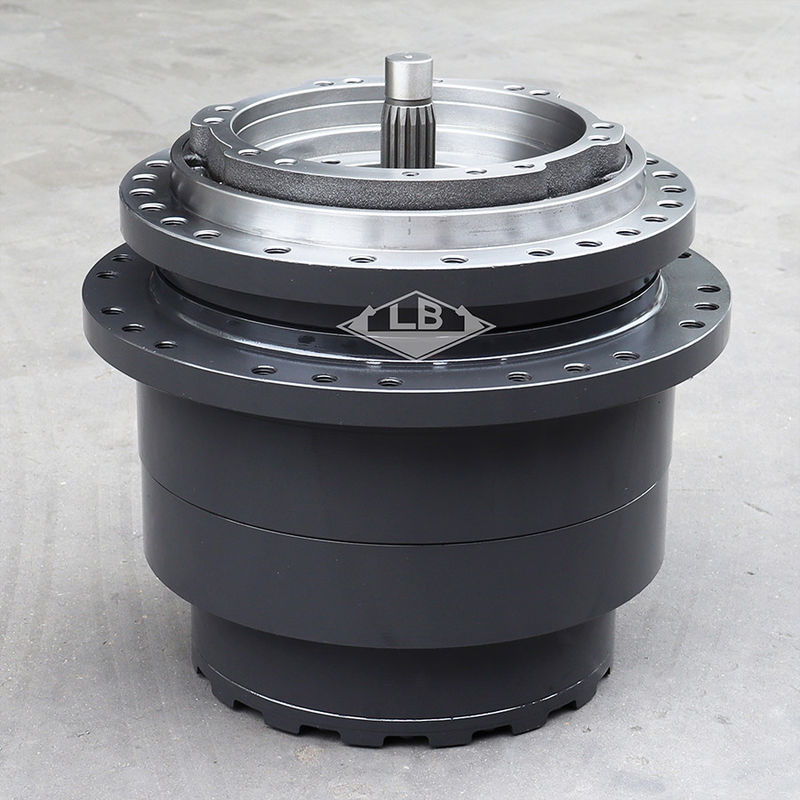

R360-7 R385-9 R390-9 TRAVEL REDUCTION GEAR XKAY-01704 XKAY-02027 XKAY-02147 R360-7 Travel gearbox
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | digger final drive,final drive planetary,reduction gear |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | R360-7 R385-9 R390-9 Travel gearbox | |||||
| Equipment | Apply to HYUNDAI EXCAVATOR | |||||
| Part no. | XKAY-01704 XKAY-02027 XKAY-02147 | |||||
| Frame holes | 26 | |||||
| Sprocket holes | 28 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 340 KG | |||||
| MOQ | 1 pc | |||||
Product Description
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| N*-2. | XKAY-01704 | [1] | TRAVEL REDUCTION GEAR | SEE 4125 |
| *-2. | XKAY-02027 | [1] | TRAVEL REDUCTION GEAR | SEE 4125 |
| *-2. | XKAY-02147 | [1] | TRAVEL REDUCTION GEAR | SEE 4125 |
| 2. | XKAY-01624 | [1] | SEAL-FLOATING | |
| 3. | XKAY-01625 | [1] | HUB | |
| 3. | XKAY-02041 | [1] | HUB | |
| 4. | XKAY-01185 | [2] | BEARING | |
| 5. | XKAY-01186 | [AR] | SHIM | |
| 6. | XKAY-01187 | [1] | GUIDE-BEARING | |
| 6. | XKAY-02143 | [1] | GUIDE-BEARING | |
| 7. | XKAY-01188 | [18] | BOLT-WRENCH | |
| N8. | XKAY-01626 | [1] | CARRIER(A) | |
| N8. | XKAY-01874 | [1] | CARRIER(A) | |
| 8. | XKAY-02148 | [1] | CARRIER(A) | |
| 9. | XKAY-01627 | [4] | GEAR-PLANETARY(A) | |
| 10. | XKAY-01191 | [8] | PLATE(A) | |
| 11. | XKAY-01192 | [4] | BEARING-NEEDLE | |
| 12. | XKAY-01193 | [4] | BUSHING-BEARING | |
| 13. | XKAY-01628 | [4] | PIN(A) | |
| 13. | XKAY-01873 | [4] | PIN(A) | |
| 13. | XKAY-02149 | [4] | PIN(A) | |
| 14. | XKAY-01195 | [4] | PIN-SPRING | |
| 14. | XKAY-01872 | [1] | PIN-SPRING | |
| 15. | XKAY-01629 | [1] | GEAR-SUN(A) | |
| 16. | XKAY-01198 | [1] | RING-SNAP | |
| 17. | XKAY-01630 | [1] | CARRIER(B) | |
| 17. | XKAY-01871 | [1] | CARRIER(B) | |
| 18. | XKAY-01631 | [3] | GEAR-PLANETARY(B) | |
| 19. | XKAY-01201 | [12] | PLATE(B.C) | |
| 20. | XKAY-01202 | [3] | BEARING-NEEDLE | |
| 21. | XKAY-01632 | [3] | PIN(B) | |
| 22. | XKAY-01633 | [6] | PIN-SPRING | |
| 22. | XKAY-01870 | [6] | PIN-SPRING | |
| 23. | XKAY-01634 | [1] | GEAR-SUN(B) | |
| 24. | XKAY-01206 | [1] | RING-SNAP | |
| 25. | XKAY-01635 | [1] | CARRIER(C) | |
| 26. | XKAY-01636 | [3] | GEAR-PLANETARY(C) | |
| 27. | XKAY-01209 | [3] | BEARING-NEEDLE | |
| 28. | XKAY-01637 | [3] | PIN(C) | |
| 29. | XKAY-01211 | [1] | COUPLING | |
| 30. | XKAY-01638 | [1] | GEAR-RING | |
| 31. | XKAY-01213 | [24] | BOLT-WRENCH | |
| 32. | XKAY-01214 | [4] | PIN-PARALLEL | |
| 33. | XKAY-01215 | [1] | GEAR-DRAIVE | |
| 34. | XKAY-01639 | [1] | COVER-END | |
| 35. | XKAY-01640 | [1] | PLATE | |
| 36. | XKAY-00901 | [16] | BOLT-WRENCH | |
| 37. | XKAY-01220 | [1] | O-RING | |
| 38. | XKAY-01641 | [1] | RING | |
| 39. | XKAY-01642 | [1] | RING | |
| 40. | XKAY-01643 | [3] | PLUG | |
| 41. | XKAY-01703 | [3] | O-RING | |
| 42. | XKAY-01217 | [1] | BUSHING | |
| 43. | XKAY-01196 | [1] | PLATE-THRUST | |
| *-1. | @ | [1] | TRAVEL MOTOR ASSY |
