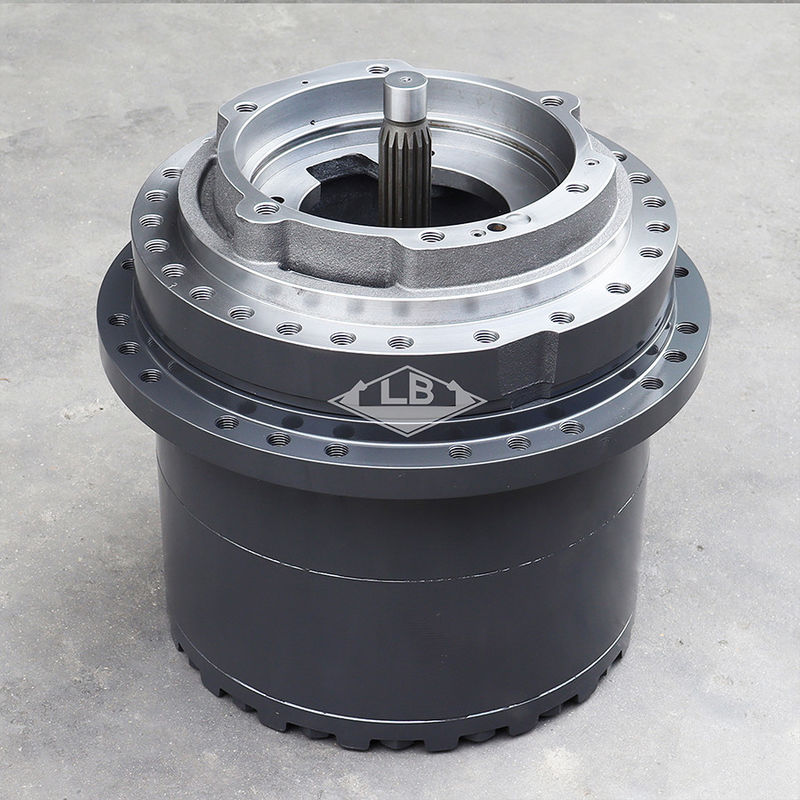

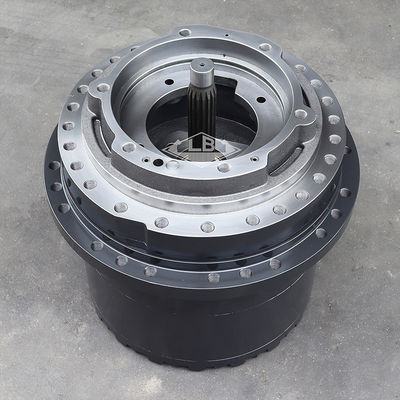

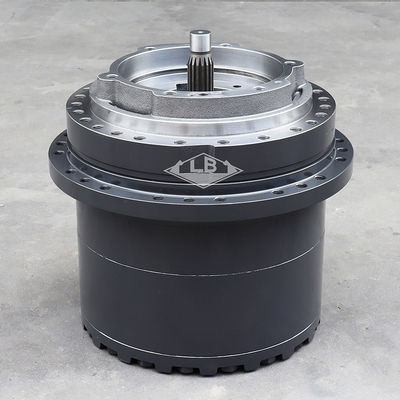

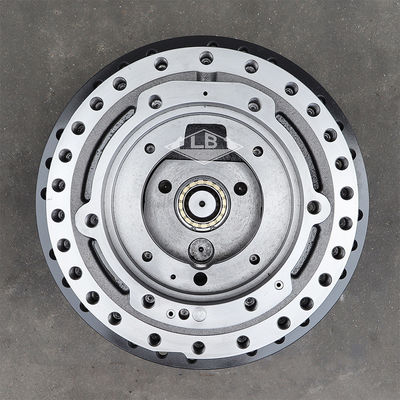

VOLVO EC360 Final drive without motor VOE14566401 VOE14667677 EC360 Travel gearbox
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | digger final drive,final drive planetary,reduction gear |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | EC360 Travel gearbox | |||||
| Equipment | Apply to VOLVO EXCAVATOR | |||||
| Part no. | VOE14566401 VOE14667677 | |||||
| Frame holes | 26 | |||||
| Sprocket holes | 24 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 380 KG | |||||
| MOQ | 1 pc | |||||
Product Description
| VOE14566401 | [1] | Transfer gearbox | ||
| 1. | VOE14566402 | [1] | Housing | |
| 2. | VOE14566409 | [1] | Gear | |
| 3. | SA7117-38230 | [2] | Bearing | |
| 4. | VOE14566404 | [1] | Shim | |
| 5. | VOE14566403 | [1] | Retainer | |
| 6. | VOE14566410 | [1] | Planet carrier | |
| 7. | VOE14566411 | [1] | Planet carrier | |
| 8. | VOE14566415 | [4] | Pin | |
| 9. | VOE14566413 | [4] | Planetary gear | |
| 10. | VOE14566414 | [8] | Washer | |
| 11. | SA9325-06012 | [4] | Spring pin | |
| 12. | SA8230-21020 | [1] | Thrust ring | |
| 13. | VOE14566412 | [4] | Needle bearing | |
| 14. | VOE984088 | [20] | Hex. socket screw | |
| 15. | VOE14566416 | [1] | Gear | |
| 16. | VOE14566418 | [1] | Planet carrier | |
| 17. | VOE14566423 | [3] | Pin | |
| 18. | VOE14566419 | [1] | Planet carrier | |
| 19. | VOE14566421 | [3] | Planetary gear | |
| 20. | VOE14566422 | [6] | Washer | |
| 21. | SA9325-06012 | [3] | Spring pin | |
| 22. | VOE14566420 | [3] | Needle bearing | |
| 23. | VOE14566433 | [1] | Thrust washer | |
| 24. | VOE14566424 | [1] | Gear | |
| 25. | VOE14566425 | [1] | Planet carrier | |
| 26. | VOE14566426 | [1] | Planet carrier | |
| 27. | VOE14566428 | [3] | Planetary gear | |
| 28. | VOE14566429 | [6] | Washer | |
| 29. | VOE14566430 | [3] | Pin | |
| 30. | SA9325-06012 | [3] | Spring pin | |
| 31. | VOE14566427 | [3] | Needle bearing | |
| 32. | VOE14569232 | [1] | Ring | |
| 33. | VOE14566417 | [1] | Ring | |
| 34. | VOE14566431 | [1] | Gear | |
| 35. | VOE914467 | [1] | Retaining ring | |
| 36. | VOE14566432 | [1] | Cover | |
| 37. | VOE60110006 | [18] | Hexagon screw | |
| 38. | SA9213-20000 | [18] | Spring washer | |
| 39. | VOE14883847 | [2] | Plug | |
| 40. | VOE990557 | [2] | O-ring | |
| 41. | VOE950677 | [4] | Pin | |
| 42. | VOE14667679 | [1] | Seal |
