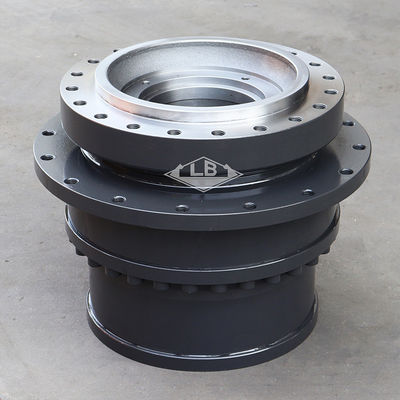

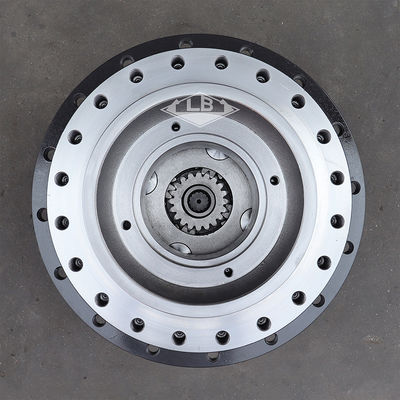

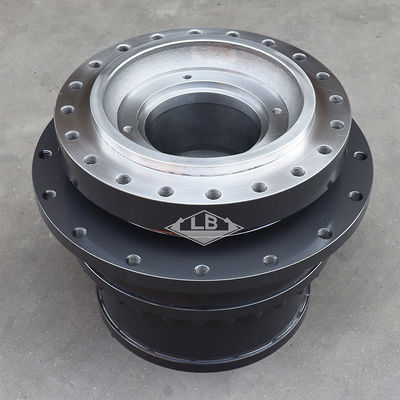

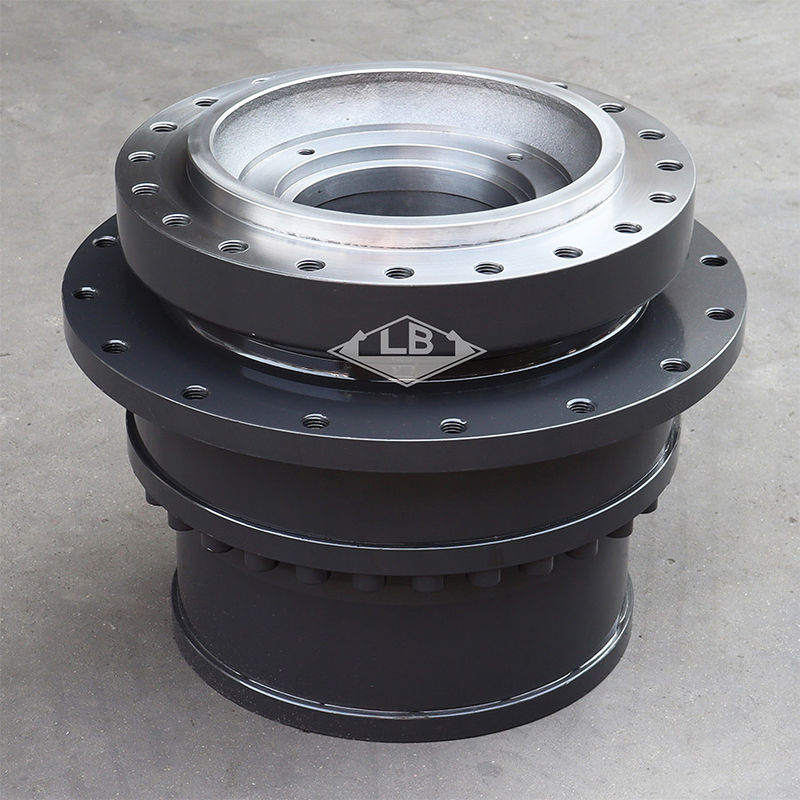

E E336D E340D2 Travel Gearbox Final Drive Travel Reduction Gear 296-6246 2966246 353-0562 3530562 E336D
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | E E336D Travel Gearbox,E340D2 Travel Gearbox,Travel reduction gear 296-6246 |
||
|---|---|---|---|
Product Description
E E336D E340D2 Final drive Travel reduction gear 296-6246 2966246 353-0562 3530562 E336D Travel gearbox
PRODUCT PARAMETERS
| Part name | E336D E340D2 Travel gearbox | |||||
| Equipment | Apply to E EXCAVATOR | |||||
| Part no. | 296-6246 353-0562 501-7238 | |||||
| Frame holes | 20 | |||||
| Sprocket holes | 16 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 430 KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts for your 336D LN EXCAVATOR:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 7Y-0595 | [2] | SPACER (58X79.6X6-MM THK) | |
| 2. | 7Y-1056 B | [1] | SHIM (0.8-MM THK) | |
| 7Y-1057 B | [1] | SHIM (1-MM THK) | ||
| 267-6809 B | [1] | SHIM (0.75-MM THK) | ||
| 267-6810 B | [1] | SHIM (0.85-MM THK) | ||
| 267-6811 B | [1] | SHIM (0.9-MM THK) | ||
| 267-6812 B | [1] | SHIM (0.95-MM THK) | ||
| 267-6813 B | [1] | SHIM (1.2-MM THK) | ||
| 267-6814 B | [1] | SHIM (1.4-MM THK) | ||
| 267-6815 B | [1] | SHIM (1.8-MM THK) | ||
| 267-6816 B | [1] | SHIM (2-MM THK) | ||
| 267-6817 B | [1] | SHIM (2.3-MM THK) | ||
| 4. | 094-0577 B | [1] | PLATE (7-MM THK) | |
| 094-0578 B | [1] | PLATE (8-MM THK) | ||
| 094-0579 B | [1] | PLATE (9-MM THK) | ||
| 094-0580 B | [1] | PLATE (10-MM THK) | ||
| 8. | 114-1541 | [6] | PIN-DOWEL | |
| 9. | 136-2898 | [14] | WASHER (58.3X89X1-MM THK) | |
| 10. | 191-2690 | [6] | WASHER (42.3X70X1-MM THK) | |
| 11. | 227-6192 | [1] | GEAR-COUPLING | |
| 12. | 255-2272 | [1] | SEAL GP-DUO-CONE | |
| 22. | 279-0344 | [2] | BEARING AS-TAPERED ROLLER | |
| 23. | 295-9234 | [1] | SEAL-O-RING | |
| 24. | 296-6181 | [1] | HOUSING (SPROCKET) | |
| 25. | 296-6182 | [1] | COVER | |
| 26. | 296-6183 | [1] | CARRIER-PLANETARY | |
| 27. | 296-6184 | [4] | GEAR-PLANETARY (21-TEETH) | |
| 28. | 296-6185 | [4] | SHAFT | |
| 29. | 296-6186 | [3] | GEAR-PLANETARY (21-TEETH) | |
| 30. | 296-6189 | [1] | GEAR-SUN (20-TEETH) | |
| 31. | 296-6190 | [1] | GEAR-SUN (20-TEETH) | |
| 32. | 296-6192 | [1] | SPACER (143X170X8-MM THK) | |
| 33. | 296-6194 | [1] | CARRIER-PLANETARY | |
| 34. | 296-6195 | [3] | SHAFT | |
| 35. | 296-6230 | [3] | GEAR-PLANETARY (21-TEETH) | |
| 36. | 296-6231 | [1] | GEAR-SUN (20-TEETH) | |
| 37. | 296-6232 | [1] | CARRIER AS (PLANETARY) | |
| 38. | 296-6247 | [11] | BEARING AS-ROLLER | |
| 39. | 296-6248 | [3] | BEARING AS-ROLLER | |
| 40. | 296-6311 | [1] | GEAR-RING (64-TEETH) | |
| 41. | 353-0563 | [1] | HOUSING-MOTOR | |
| 42. | 093-1731 | [2] | RING-RETAINING (EXTERNAL) | |
| 43. | 095-0891 | [7] | PIN-SPRING | |
| 44. | 096-3216 M | [2] | SETSCREW-SOCKET (M12X1.75X12-MM) | |
| 45. | 096-8058 | [3] | RING-RETAINING | |
| 46. | 191-2645 | [1] | COUPLING | |
| 47. | 3E-2338 | [2] | PLUG-PIPE | |
| 48. | 6V-8133 M | [10] | BOLT (M24X3X80-MM) | |
| 49. | 6V-8237 | [10] | WASHER (26X44X4-MM THK) | |
| 50. | 7M-8485 | [2] | SEAL-O-RING | |
| 51. | 7Y-5217 M | [30] | BOLT-SOCKET HEAD (M20X2.5X70-MM) | |
| 52. | 451-2176 | [30] | WASHER-HARD (22X35X3.5-MM THK) | |
| 53. | 451-2182 | [16] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 54. | 453-3446 M | [16] | BOLT (M12X1.75X35-MM) |
