Product Details:

Get Best Price Contact Now

Detail Information
Highlight:

20Y-27-00590 Travel Gear box

,

PC200-8 Travel Gear box

,

PC200-8MO Final drive

Product Description

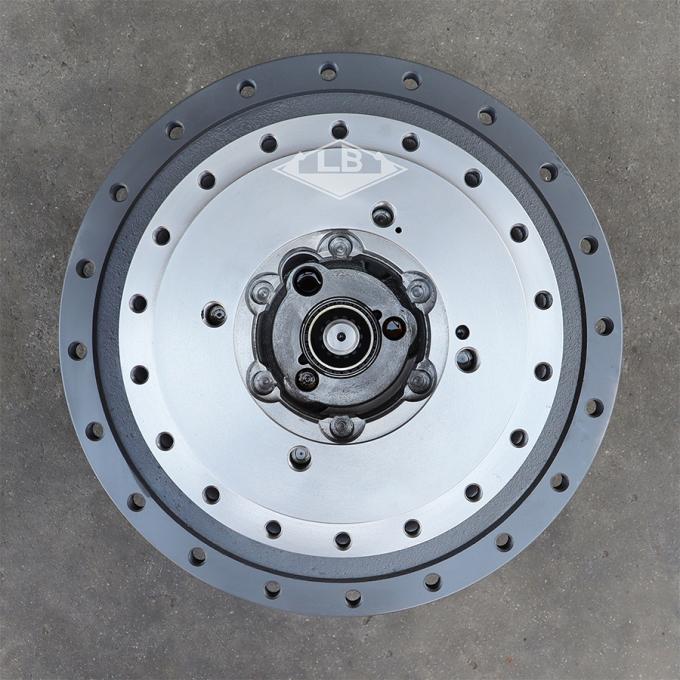

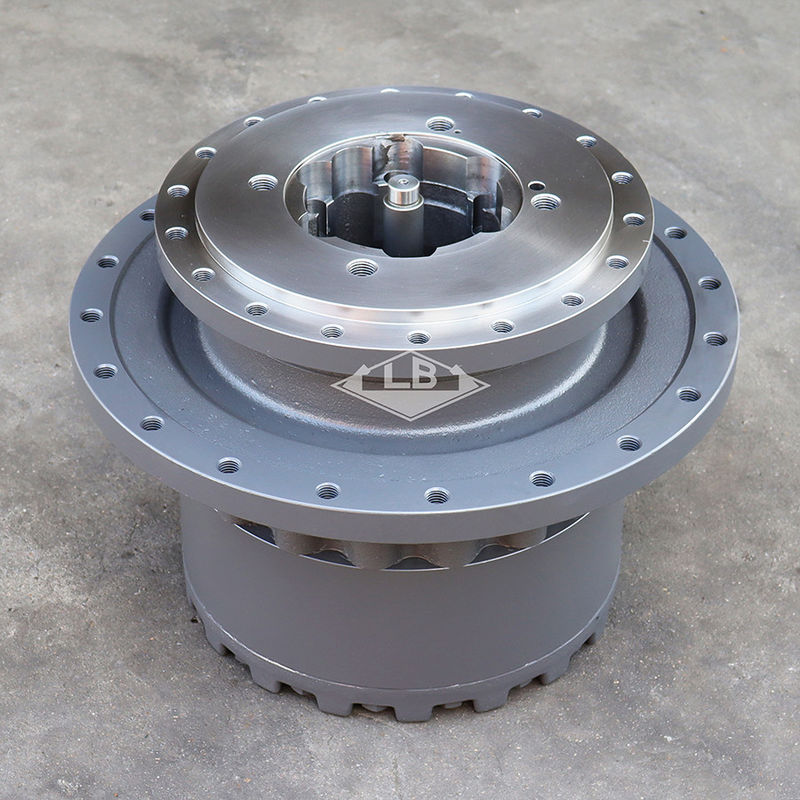

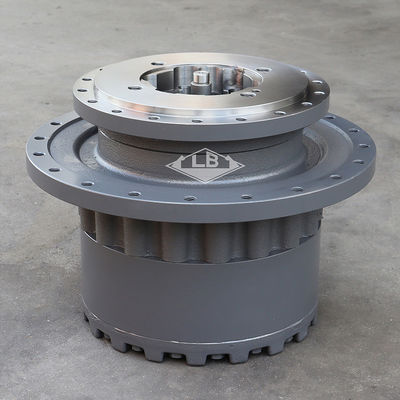

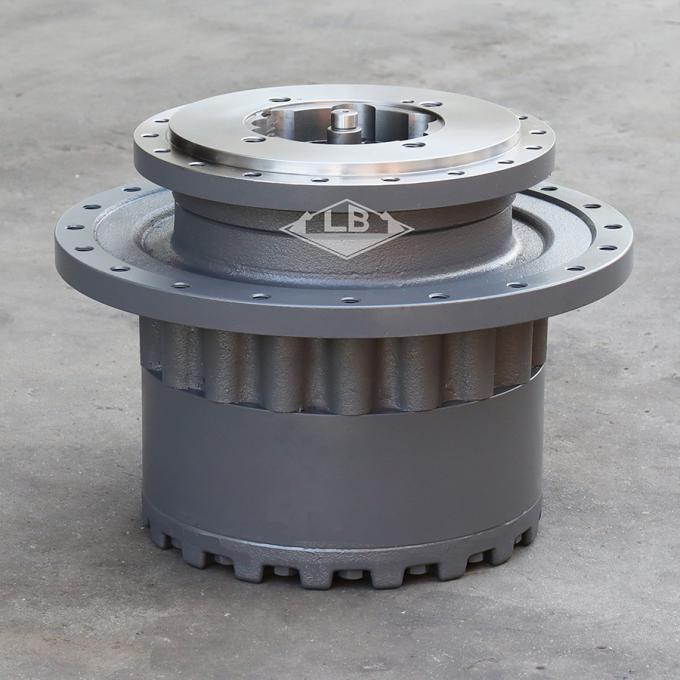

PC200-8 PC200-8MO Final drive Travel motor 20Y-27-00560 20Y-27-00590 PC200-8 Travel gearbox





PRODUCT PARAMETERS
Part name PC200-8 PC200-8MO Travel gearbox
Equipment Apply to KOMATSU EXCAVATOR
Part no. 20Y-27-00560 20Y-27-00590
Frame holes 18
Sprocket holes 20
Item condition New
Logo LB
Gross weight 265KG
MOQ 1 pc


Product Description

PC200-8 行(2)PC200-8 行(4)PC200-8 行



Parts on group :

20Y-27-00560 20Y-27-00590 PC200-8 Travel Gear Box PC200-8 PC200-8MO Final Drive 3

Pos. Part No Qty Parts name Comments
    20Y-27-00560   [2]   Final Drive Assembly Komatsu 370 kg.
    ["SN: 350199-UP"] |$0.
    20Y-27-00110   [1]   Floating Seal Assembly Komatsu OEM 2.65 kg.
    ["SN: 350199-UP"] |$1.
   3.   20Y-27-42520   [1]   Hub Komatsu 0.000 kg.
    ["SN: 350199-UP"]
   4.   20Y-27-41260   [2]   Bearing Komatsu 4.5 kg.
    ["SN: 350199-UP"]
   5.   20Y-27-22280   [1]   O-ring Komatsu China 0.02 kg.
    ["SN: 350199-UP"]
   6.   20Y-27-41190   [1]   Nut, Lock Komatsu 3 kg.
    ["SN: 350199-UP"]
   7.   20Y-27-41180   [1]   Lock Komatsu 0.04 kg.
    ["SN: 350199-UP"]
   8.   01010-81020   [2]   Bolt Komatsu 0.161 kg.
    ["SN: 350199-UP"] analogs:["801014093", "0101051020", "801015108"]
   9.   20Y-27-42540   [1]   Carrier Komatsu China
    ["SN: 350199-UP"]
   10.   20Y-27-22140   [4]   Gear Komatsu China 3.72 kg.
    ["SN: 350199-UP"]
   11.   20Y-27-22220   [4]   Bearing Komatsu China 0.3 kg.
    ["SN: 350199-UP"] analogs:["20Y2721270"]
   12.   20Y-27-21250   [8]   Washer, Thrust Komatsu China 0.03 kg.
    ["SN: 350199-UP"]
   13.   20Y-27-21230   [4]   Pin Komatsu 1.54 kg.
    ["SN: 350199-UP"]
   14.   20Y-27-21290   [4]   Pin Komatsu OEM 0.03 kg.
    ["SN: 350199-UP"]
   15.   20Y-27-13310   [1]   Washer, Thrust Komatsu China 0.08 kg.
    ["SN: 350199-UP"]
   16.   20Y-27-22130   [1]   Gear Komatsu China 1.75 kg.
    ["SN: 350199-UP"]
   17.   20Y-27-22240   [1]   Washer, Thrust Komatsu China 0.03 kg.
    ["SN: 350199-UP"]
   18.   20Y-27-22151   [1]   Gear Komatsu 43.7 kg.
    ["SN: 350199-UP"] analogs:["20Y2722150"]
   19.   20Y-27-22160   [1]   Carrier Komatsu OEM 6 kg.
    ["SN: 350199-UP"]
   20.   20Y-27-22120   [3]   Gear Komatsu China 2.5 kg.
    ["SN: 350199-UP"]
   21.   20Y-27-22210   [3]   Bearing Komatsu China 0.12 kg.
    ["SN: 350199-UP"] analogs:["20Y2721260"]
   22.   20Y-27-21240   [6]   Washer, Thrust Komatsu China 0.02 kg.
    ["SN: 350199-UP"]
   23.   20Y-27-21220   [3]   Pin Komatsu China 0.411 kg.
    ["SN: 350199-UP"]
   24.   20Y-27-21280   [3]   Pin Komatsu China 0.01 kg.
    ["SN: 350199-UP"]
   25.   20Y-27-42510   [1]   Shaft Komatsu OEM 0.000 kg.
    ["SN: 350199-UP"]
   26.   20Y-27-21310   [1]   Washer Komatsu China 0.17 kg.
    ["SN: 350199-UP"]
   27.   20Y-27-42530   [1]   Cover Komatsu China
    ["SN: 350199-UP"]
   28.   04260-01587   [1]   Ball, Steel Komatsu 0.018 kg.
    ["SN: 350199-UP"]
   29.   20Y-27-13281   [18]   Bolt Komatsu 0.31 kg.
    ["SN: 350199-UP"]
   30.   01643-31645   [18]   Washer Komatsu 0.072 kg.
    ["SN: 350199-UP"] analogs:["802170005", "0164301645"]
   31.   07049-01012   [2]   Plug Komatsu 0.001 kg.
    ["SN: 350199-UP"]
   32.   07044-12412   [3]   Plug Komatsu 0.09 kg.
    ["SN: 350199-UP"] analogs:["0704402412", "R0704412412"]
   33.   07002-12434   [3]   O-ring Komatsu China 0.01 kg.
    ["SN: 350199-UP"] analogs:["0700202434", "0700213434"]
   34.   20Y-27-11582   [1]   Sprocket Komatsu China 36.2 kg.
    ["SN: 350199-UP"] analogs:["20Y2711581", "20Y27K1110", "20Y2777110"]
   35.   20Y-27-11561   [20]   Bolt Komatsu China 0.14 kg.
    ["SN: 350199-UP"]
36.   01010-61660   [36]   Bolt Komatsu 0.127 kg.
    ["SN: 350199-UP"] analogs:["0101031660", "0101081660"]
38.   20Y-30-21192   [2]   Cover Komatsu China
    ["SN: 351329-UP"]
38.   20Y-30-21191   [2]   Cover Komatsu 12.25 kg.
    ["SN: 350199-351328", "SCC: A2"]
39.   01010-81230   [8]   Bolt Komatsu 0.043 kg.
    ["SN: 350199-UP"] analogs:["0101051230", "01010B1230"]
40.   01643-31232   [8]   Washer Komatsu 0.027 kg.
    ["SN: 350199-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
41.   708-8F-00250   [-1]   Motor Assembly Komatsu 93 kg.
    ["SN: UP"]
