Product Details:

Get Best Price Contact Now

Detail Information
Highlight:

207-26-00300 Swing Gearbox

,

Swing Gearbox PC300-8MO

,

PC350-8MO

Product Description

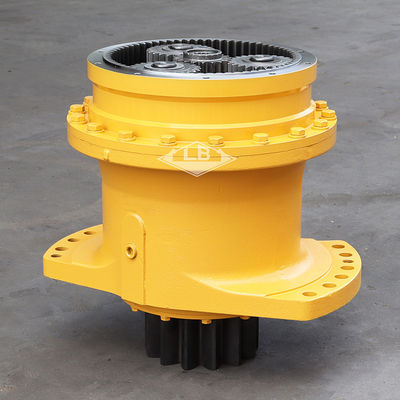

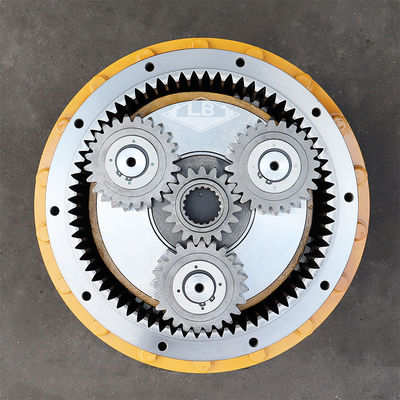

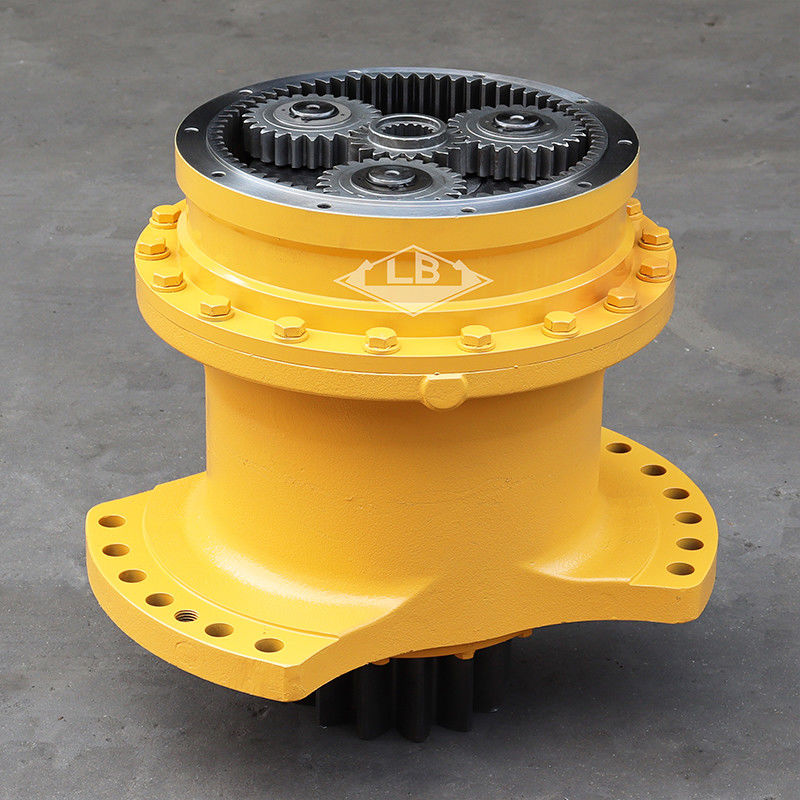

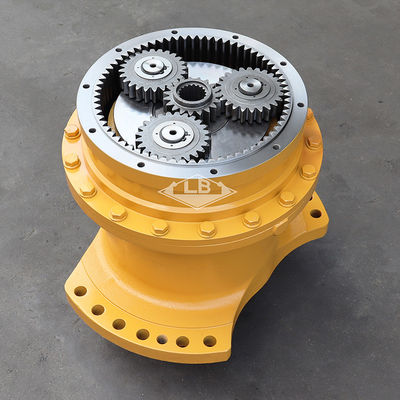

PC300-8MO PC350-8MO PC360-8MO SWING MACHINERY 207-26-00300 SWING Gearbox





PRODUCT PARAMETERS
Part name PC300-8MO PC350-8MO PC360-8MO Swing gearbox
Equipment Apply to KOMATSU EXCAVATOR
Part no. 207-26-00300
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13T
Item condition New
Logo LB
Gross weight 420 KG
MOQ 1 pc


Product Description

207-26-00300 SWING Gearbox PC300-8MO PC350-8MO PC360-8MO SWING MACHINERY 0207-26-00300 SWING Gearbox PC300-8MO PC350-8MO PC360-8MO SWING MACHINERY 1

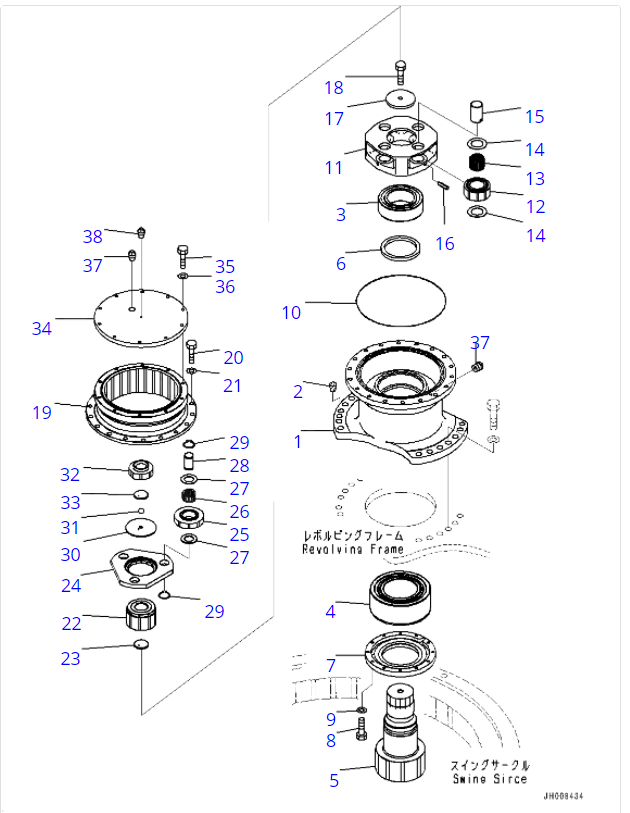

Parts on group :


PC300-8MO 回

Pos. Part No Qty Parts name Comments
https://   207-26-00300   [1]   Swing Machinery Assembly Komatsu China
    ["SN: 80001-UP"] |$0.
   1.   207-26-75130   [1]   Case Komatsu China
    ["SN: 80001-UP"]
   2.   07049-02430   [2]   Plug Komatsu 0.003 kg.
    ["SN: 80001-UP"]
   3.   207-26-73140   [1]   Bearing Komatsu China
    ["SN: 80001-UP"]
   4.   207-26-73150   [1]   Bearing Komatsu China
    ["SN: 80001-UP"]
   5.   207-26-62180   [1]   Shaft Komatsu OEM 54 kg.
    ["SN: 80001-UP"] analogs:["2072671160"]
   6.   207-26-61210   [1]   Seal Komatsu OEM 0.17 kg.
    ["SN: 80001-UP"]
   7.   207-26-75140   [1]   Cover Komatsu China
    ["SN: 80001-UP"]
   8.   01010-81030   [12]   Bolt Komatsu OEM 0.03 kg.
    ["SN: 80001-UP"] analogs:["801015110", "M018011000306", "YM26116100302", "0101051030"]
   9.   01643-31032   [12]   Washer Komatsu 0.054 kg.
    ["SN: 80001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
   10.   07000-15390   [1]   O-ring Komatsu OEM 0.05 kg.
    ["SN: 80001-UP"]
   11.   207-26-73130   [1]   Carrier Komatsu China
    ["SN: 80001-UP"]
   12.   207-26-73120   [4]   Gear Komatsu China
    ["SN: 80001-UP"]
   13.   20Y-27-41250   [4]   Bearing Komatsu 1.5 kg.
    ["SN: 80001-UP"]
   14.   20Y-27-41270   [8]   Washer, Thrust Komatsu 0.03 kg.
    ["SN: 80001-UP"]
   15.   20Y-26-21320   [4]   Pin Komatsu China 1.33 kg.
    ["SN: 80001-UP"]
   16.   20Y-26-21330   [4]   Pin Komatsu China 0.1 kg.
    ["SN: 80001-UP"]
   17.   207-26-54230   [1]   Plate Komatsu China
    ["SN: 80001-UP"]
   18.   205-32-51211   [1]   Bolt Komatsu 0.17 kg.
    ["SN: 80001-UP"]
   19.   207-26-71551   [1]   Gear, Ring Komatsu 42 kg.
    ["SN: 80001-UP"] analogs:["2072671550"]
   20.   01010-81645   [18]   Bolt Komatsu China 0.104 kg.
    ["SN: 80001-UP"] analogs:["0101061645", "801015187", "0101031645", "0101051645", "37A0911184", "801014184"]
   21.   01643-31645   [18]   Washer Komatsu 0.072 kg.
    ["SN: 80001-UP"] analogs:["802170005", "0164301645"]
   22.   207-26-73110   [1]   Gear Komatsu China
    ["SN: 80001-UP"]
   23.   208-26-71241   [1]   Plate Komatsu 0.06 kg.
    ["SN: 80001-UP"]
   24.   208-26-71170   [1]   Carrier Komatsu 7.65 kg.
    ["SN: 80001-UP"]
   25.   207-26-71521   [3]   Gear Komatsu China
    ["SN: 80001-UP"]
   26.   22U-26-21320   [3]   Bearing Komatsu 1.1 kg.
    ["SN: 80001-UP"]
   27.   22U-26-21240   [6]   Washer Komatsu 0.6 kg.
    ["SN: 80001-UP"]
   28.   207-26-71210   [3]   Pin Komatsu 0.66 kg.
    ["SN: 80001-UP"]
   29.   04064-04018   [6]   Ring, Snap Komatsu 0.001 kg.
    ["SN: 80001-UP"] analogs:["802250040"]
   30.   208-26-71210   [1]   Holder Komatsu 0.42 kg.
    ["SN: 80001-UP"]
   31.   04260-01270   [1]   Ball Komatsu OEM 0.009 kg.
    ["SN: 80001-UP"]
   32.   207-26-71511   [1]   Gear Komatsu China
    ["SN: 80001-UP"]
   33.   207-26-71261   [1]   Plate Komatsu OEM 0.15 kg.
    ["SN: 80001-UP"]
   34.   207-26-73610   [1]   Cover Komatsu China
    ["SN: 80001-UP"]
   35.   01010-81240   [10]   Bolt Komatsu 0.052 kg.
    ["SN: 80001-UP"] analogs:["801015573", "0101051240"]
   36.   01643-31232   [10]   Washer Komatsu 0.027 kg.
    ["SN: 80001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
   37.   07042-30617   [2]   Plug, Taper Komatsu China
    ["SN: 80001-UP"]
   38.   07042-30108   [1]   Plug Komatsu 0.008 kg.
    ["SN: 80001-UP"] analogs:["0704220108"]
