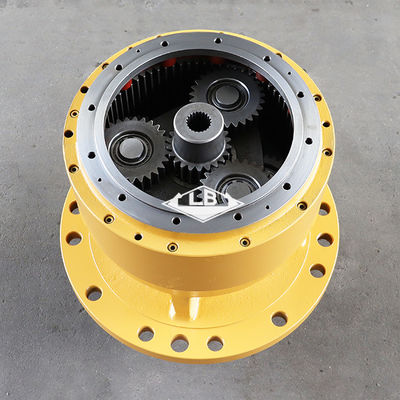

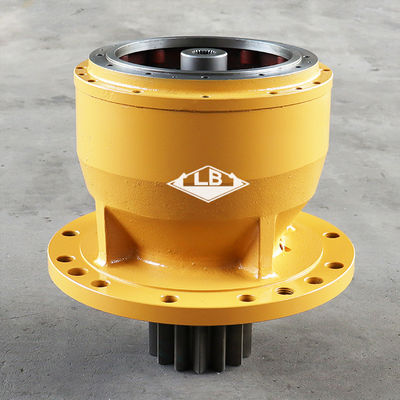

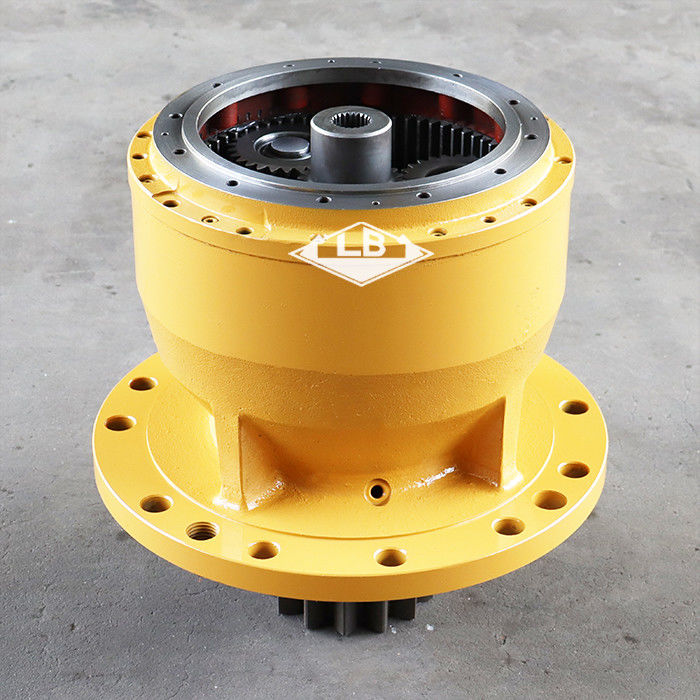

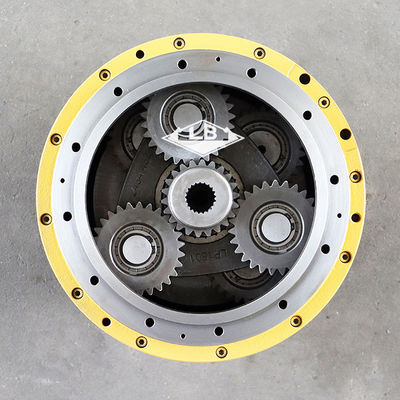

E 320GC 320GX 323 SWING DRIVE 536-7286 584-2581 621-2093 5367286 5842581 6212093 E320GC E320GX SWING GEARBOX
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | excavator swing gearbox,swing reduction gear,swing drive gearbox |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | E 320GC 320GC 323 Swing gearbox | |||||
| Equipmen | Apply to E EXCAVATOR | |||||
| Part no. | 536-7286 584-2581 621-2093 | |||||
| NO.1 sun gear spline teeth | 21 splines | |||||
| Swing pinion shaft teeth | 14T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||
Product Description
| 536-7286 DRIVE GP-SWING S/N TNG1-UP PART OF 560-2474 DRIVE GP-SWING FIELD REPLACEMENT ORDER 621-2093 | ||
| Part Number | Part Name | Quantity |
| Group Part | ||
| 536-7286 | Drive GP-Swing | |
| 567-7126 | Gear-Ring | 1 |
| (77-TEETH) | ||
| 570-5834 | Gear-Sun | |
| (21-TEETH) | ||
| 567-7134 | Planetary AS | 1 |
| 567-7135 | Planetary AS | 1 |
| 570-5835 | Housing-Output | 1 |
| 625-7495 | Shaft-Pinion | 1 |
| 567-7149 | Nut-Ring | 1 |
| M | (M92X2-THD) | |
| 567-7150 | Spacer | |
| (87.99X110X5-MM Thk) | ||
| 567-7151 | Ring-Retaining | 1 |
| 605-7780 | Seal | 2 |
| 570-5838 | Seal | 1 |
| 570-5839 | Seal-Ring | 1 |
| 570-5840 | Bearing | 1 |
| 567-7156 | Bearing | 1 |
| 567-7157 | Shim Pack | 1 |
| B | (Includes 4-SHIMS) | |
| 136-8074 | Plug | |
| (Grease Fill) | ||
| 570-5841 | Housing GP-Drive | 1 |
| 4D-6695 | Seal-O-Ring | 1 |
| 311-0501 | Bolt | 12 |
| M | (M8X1.25X25-MM) | |
