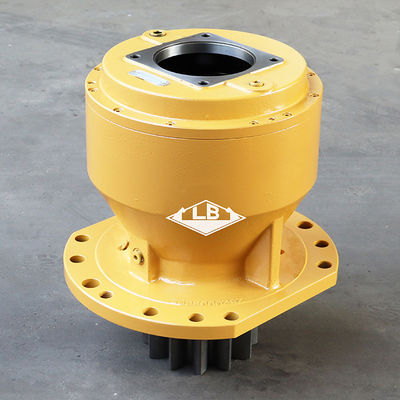

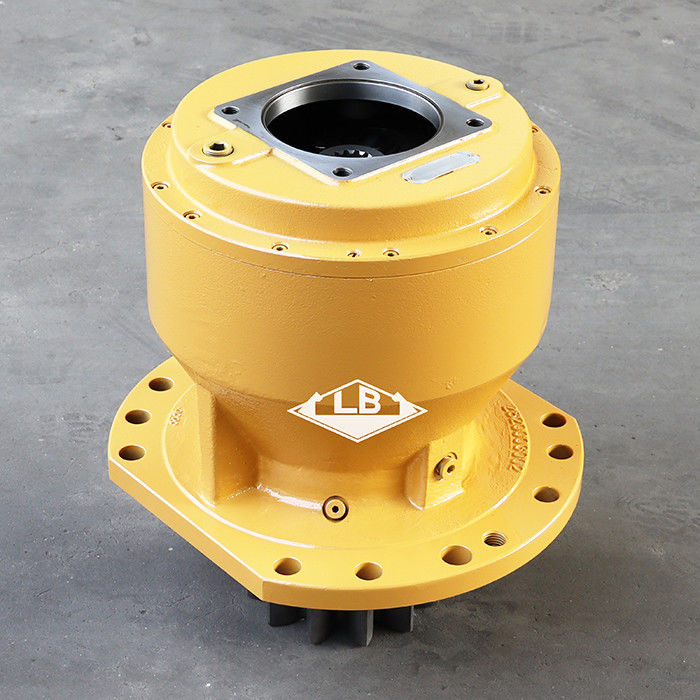

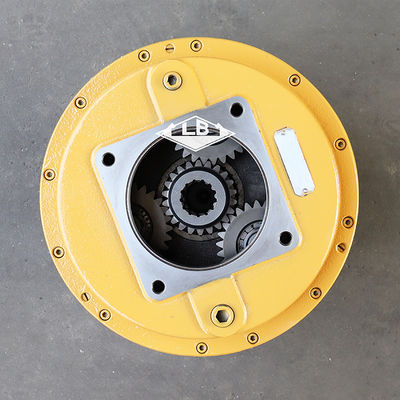

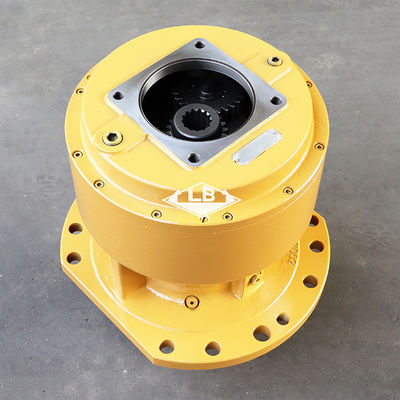

E 349 352 349GC SWING DRIVE 536-7289 538-5282 584-2587 584-2588 SWING REDUCER E349GC SWING GEARBOX
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | excavator swing gearbox,swing reduction gear,swing drive gearbox |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | E 349GC Swing gearbox | |||||
| Equipmen | Apply to E EXCAVATOR | |||||
| Part no. | 536-7289 538-5282 584-2587 584-2588 | |||||
| NO.1 sun gear spline teeth | 13 splines | |||||
| Swing pinion shaft teeth | 12T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||
Product Description
| Part Number | Part Name | Quantity |
| 536-7289 | Drive GP-Swing | |
| 567-7126 | Gear-Ring | 1 |
| (77-TEETH) | ||
| 567-7133 | Gear-Sun | |
| (13-TEETH) | ||
| 567-7134 | Planetary AS | 1 |
| 567-7135 | Planetary AS | 1 |
| 567-7146 | Housing AS | 1 |
| (Input) | ||
| 4D-6695 | Seal-O-Ring | |
| 570-5849 | Housing-Output | 1 |
| 633-7828 | Shaft-Pinion | 1 |
| 567-7149 | Nut-Ring | 1 |
| M | (M92X2-THD) | |
| 567-7150 | Spacer | |
| (87.99X110X5-MM Thk) | ||
| 567-7151 | Ring-Retaining | 1 |
| 595-6578 | Seal | 2 |
| 567-7153 | Seal | 1 |
| 567-7154 | Seal-Ring | 1 |
| 567-7155 | Bearing | 1 |
| 567-7156 | Bearing | 1 |
| 567-7157 | Shim Pack | 1 |
| B | (Includes 4-SHIMS) | |
| 136-8074 | Plug | |
| 311-0501 | Bolt | 12 |
| M | (M8X1.25X25-MM) | |
