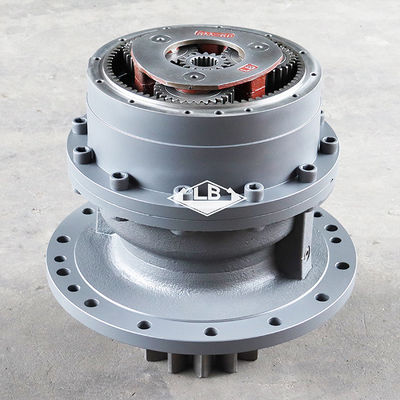

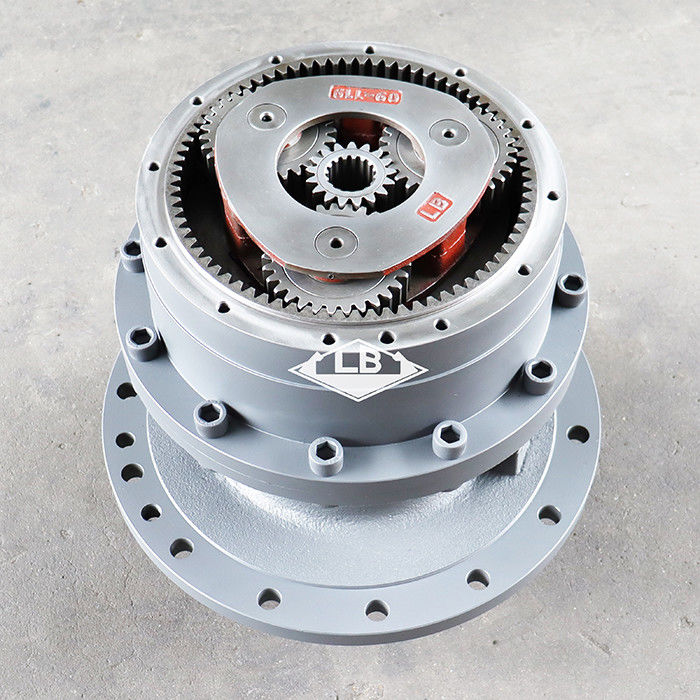

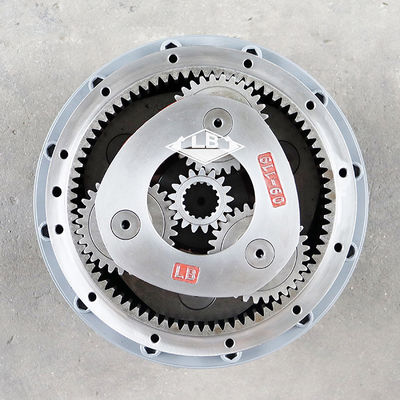

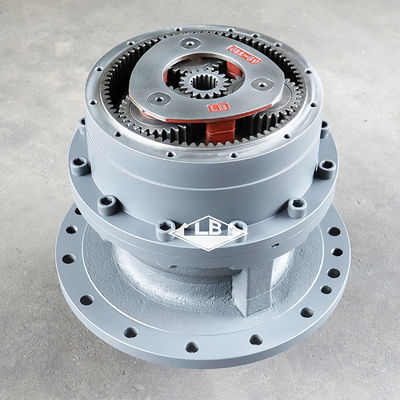

ZX330-3 ZX330-5G ZX350-5G REDUCER 9236591 9258610 SWING DEVICE ZX330-3 SWING GEARBOX
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | excavator swing gearbox,swing reduction gear,swing drive gearbox |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | ZX330-3 ZX330-5G swing gearbox | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | 9236591 9258610 | |||||
| NO.1 sun gear spline teeth | 16 splines | |||||
| Swing pinion shaft teeth | 13T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 325KG | |||||
| MOQ | 1 pc | |||||
Product Descriptio
Parts on group T.MISSION (SWING):
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 9236591 | [1] | T.MISSION (SWING) | I 9258610 <for assembly of machine> | |
| 9258610 | [1] | T.MISSION (SWING) | <for transportation> | |
| 00. | 1033255 | [1] | HOUSING | |
| 01. | 2050987 | [1] | SHAFT;PROP. | |
| 02. | 3088071 | [1] | SLEEVE | |
| 03. | 4412650 | [1] | O-RING | |
| 04. | 4430716 | [1] | BRG.;ROL. | |
| 05. | 4430715 | [1] | SEAL;OIL | |
| 07. | 4402481 | [1] | BRG.;ROL. | |
| 08. | 3101122 | [1] | NUT | |
| 09. | 4430563 | [1] | PLATE;LOCK | |
| 10. | J901016 | [2] | BOLT | |
| 11. | 2050998 | [1] | CARRIER | |
| 13. | 3088069 | [3] | GEAR;PLANETARY | |
| 14. | 4445254 | [6] | BRG.;NEEDLE | |
| 15. | 4644567 | [6] | PLATE;THRUST | |
| 16. | 4430714 | [3] | PIN | |
| 17. | 4404947 | [3] | PIN;SPRING | |
| 18. | 3075692 | [1] | GEAR;SUN | |
| 20. | 1032127 | [1] | GEAR;RING | |
| 21. | M342050 | [12] | BOLT;SOCKET | |
| 22. | 4194454 | [2] | PLATE;THRUST | |
| 23. | 1032128 | [1] | CARRIER | |
| 24. | 3098513 | [3] | GEAR;PLANETARY | |
| 25. | 4190117 | [3] | BRG.;NEEDLE | |
| 26. | 4430667 | [3] | PLATE;THRUST | |
| 27. | 4144558 | [3] | PIN | |
| 28. | 4144525 | [3] | PIN;SPRING | |
| 30. | 3101105 | [1] | GEAR;SUN | |
| 32. | 3088126 | [1] | PIPE | |
| 36. | 94-2012 | [1] | PLUG | |
| 37. | 4445354 | [2] | PLUG |
