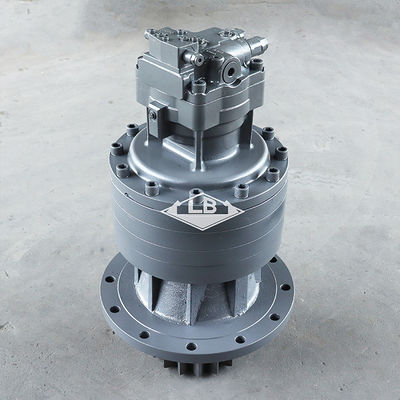

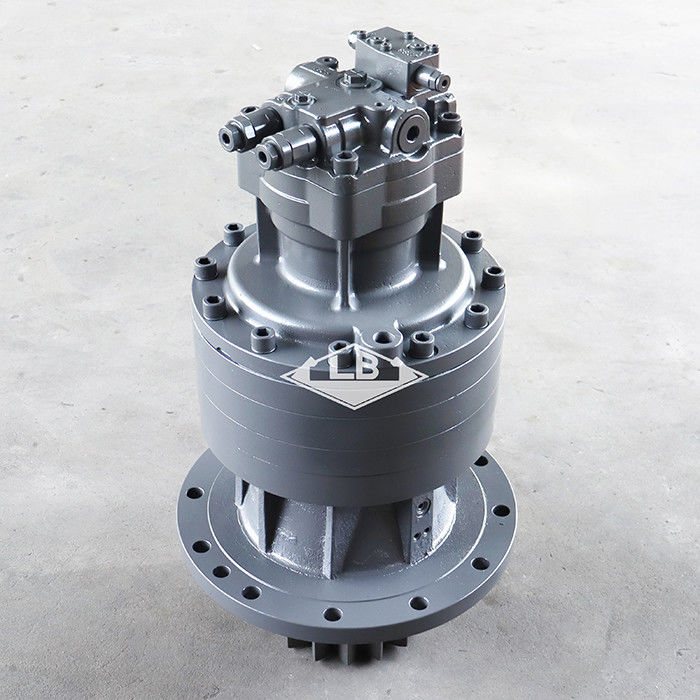

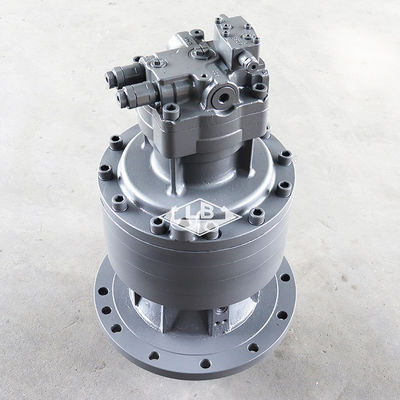

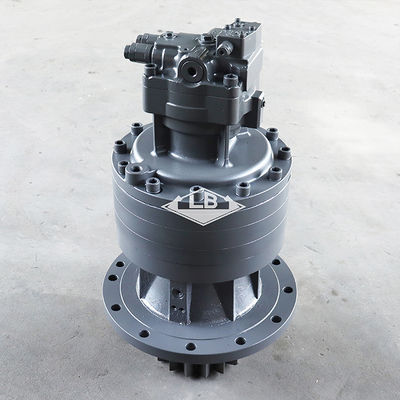

CX350 SH350-5 SWING MOTOR ASSY KSC10080 KSC10240 KSC10070 CX350 SWING REDUCTION GEARBOX
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | excavator swing gearbox,swing reduction gear,swing drive gearbox |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | SH350 CX350 Swing gearbox | |||||
| Equipment | Apply to Sumitomo, Case EXCAVATOR | |||||
| Part no. | KSC10080 KSC10240 KSC10070 | |||||
| NO.1 sun gear spline teeth | -- | |||||
| Swing pinion shaft teeth | 16T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||
Product Description
Parts on group (CX350B) - CRAWLER EXCAVATOR TIER 3 (NA) (5/08-):
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | KSC10070 | [1] | HYDRAULIC MOTOR | SUM Swing; See Figure 08-54 |
| 1. | KSC10070R | [1] | REMAN-HYD MOTOR | RAC |
| 1. | KSC10070C | [1] | CORE-MOTOR HYDRAULIC | RAC Return Number |
| 3. | KSC10080 | [1] | REDUCER | SUM Transmission; See Figure 08-55 Superseded by part number: KSC10490 |
| 3. | KSC10240R | [1] | REMAN-REDUCTION UNIT | RAC CX350B CRAWLER EXCAVATOR TIER 3 (NA), Transmission (5/08-), Reman for New PN KSC10080 Superseded by part number: KSC10350R |
| 3. | KSC10240C | [1] | CORE-REDUCTION UNIT | RAC Return Number |
| . . | 800-1145 | [1] | SNAP RING,M45, Ext | CAS Not Shown Superseded by part number: 370007 |
| 33. | KSC0201 | [1] | GEAR | SUM Pinion |
| 34. | 150285A1 | [1] | PLATE, LOCKING | SUM |
| 35. | 167069A1 | [1] | WASHER | SUM |
| 36. | 627-16040 | [2] | BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd | CAS Superseded by part number: 374835 |
| 37. | 153630A1 | [1] | LUBE NIPPLE | SUM Grease |
| 38. | 150317A1 | [1] | HEADED PIN,24mm OD x 90mm L | SUM |
| 39. | 166477A1 | [12] | BOLT,Sems, M24 x 90mm | SUM |
| 40. | KTJ0315 | [1] | HYDRAULIC HOSE,9.52 mm ID x 350.00 mm | SUM Superseded by part number: KNJ14580 |
| 41. | KHP0501 | [1] | PLUG | SUM |
| 42. | KHR2584 | [1] | CLAMP | SUM |
| 43. | KHJ1215 | [1] | BOLT,Spcl | SUM |
Parts on group (CX350B) - CRAWLER EXCAVATOR TIER 3 (NA) (5/08-):
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | KSC10080 | [1] | REDUCER | SUM Incl. 4 - 30 Superseded by part number: KSC10490 |
| . . | KSC10240R | [1] | REMAN-REDUCTION UNIT | RAC CX350B CRAWLER EXCAVATOR TIER 3 (NA) (5/08-), Reman for New PN KSC10080 Superseded by part number: KSC10350R |
| . . | KSC10240C | [1] | CORE-REDUCTION UNIT | RAC Return Number |
| 4. | KSC10100 | [1] | SUN GEAR | SUM |
| 5. | KSC0212 | [1] | PLATE, THRUST | SUM |
| 6. | KSC0245 | [1] | CARRIER | SUM |
| 7. | KSC0246 | [1] | CARRIER | SUM |
| 8. | KSC0219 | [1] | SUN GEAR | SUM |
| 9. | KSC10110 | [1] | RING GEAR | SUM |
| 10. | KTC0155 | [4] | PIN | SUM |
| 11. | KSC10120 | [1] | HOUSING | SUM Gear |
| 12. | KSC0207 | [1] | BEARING,120mm ID x 200mm OD x 62mm W | SUM |
| 13. | KSC0210 | [1] | SPACER | SUM |
| 14. | 150824A1 | [1] | PLUG | SUM |
| 15. | KTC0153 | [1] | OIL SEAL | SUM |
| 16. | 158352A1 | [2] | PLUG | SUM |
| 17. | KSC0249 | [1] | SPACER | SUM |
| 18. | 150491A1 | [1] | ROLLER BEARING,130mm ID x 280mm OD x 93mm W | SUM |
| 19. | KSC0250 | [1] | BEARING COVER | SUM Bearing |
| 20. | KSC0251 | [1] | RETAINING WIRE | SUM |
| 21. | KSC0214 | [1] | SPACER | SUM |
| 22. | KSC0222 | [1] | SHAFT | SUM |
| 23. | NSS | [4] | NOT SOLD SEPARAT | CON Pin, 10 x 40 mm |
| 24. | NSS | [4] | NOT SOLD SEPARAT | CON Plate |
| 25. | NSS | [4] | NOT SOLD SEPARAT | CON Gear |
| 26. | NSS | [4] | NOT SOLD SEPARAT | CON Pin |
| 27. | NSS | [3] | NOT SOLD SEPARAT | CON Pin |
| 28. | NSS | [3] | NOT SOLD SEPARAT | CON Plate |
| 29. | NSS | [3] | NOT SOLD SEPARAT | CON Gear |
| 30. | 150483A1 | [12] | BOLT,Hex Skt, M20 | SUM |
