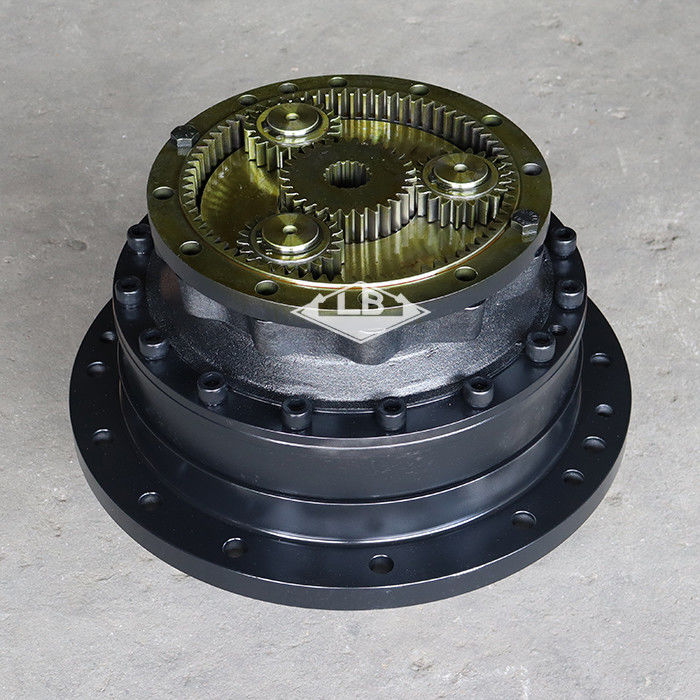

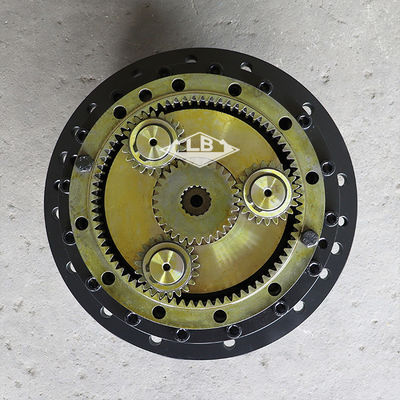

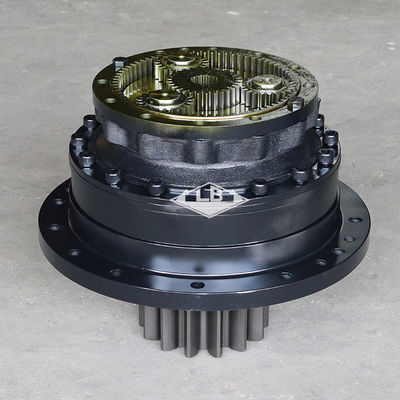

SOLAR 255 SWING REDUCTION GEAR 2401-1166 2101-1025 SOLAR 255 SWING GEARBOX
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | excavator swing gearbox,swing reduction gear,swing drive gearbox |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | SOLAR255 Swing gearbox | |||||
| Equipment | Apply to DOOSAN EXCAVATOR | |||||
| Part no. | 2101-1025 | |||||
| NO.1 sun gear spline teeth | 16 splines | |||||
| Swing pinion shaft teeth | 14T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||
Product Description
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 2402-1034K | [1] | REDUCTION GEAR BOX ASS'Y | |
| -. | 2101-1025C | [1] | REDUCTION GEAR BOX ASS'Y | |
| -. | 2101-1025D | [1] | SWING REDUCTION GEAR | 2101-1025E |
| -. | 2101-1025E | [1] | SWING REDUCTION GEAR ASS'Y | |
| 1. | 2423-1184C | [1] | CASING;FRONT | 2423-1184D |
| 1. | 2423-1184D | [1] | CASING;FRONT | |
| 10. | 2230-1014 | [1] | CARRIER | |
| 10. | 2230-1034 | [1] | CARRIER | |
| 11. | 2123-1631B | [3] | PIN | |
| 12. | 2114-1553 | [6] | WASHER;THRUST | |
| 13. | 2549-1118 | [1] | BUTTON;THRUST | |
| 14. | 2123-1632 | [3] | PIN(NO.1) | |
| 15. | 2412-9001 | [3] | PLATE;SIDE | |
| 16. | 2412-9002 | [3] | PLATE;SIDE | |
| 17. | 2412-9003 | [1] | PLATE;SIDE | |
| 18. | 2505-1009 | [1] | BAR;LEVEL | |
| 19. | 2182-1304 | [1] | PIPE | |
| 2. | 2423-1185 | [1] | CASING;MIDDLE | |
| 20. | 2278-1009A | [1] | RING;SPACER | |
| 21. | 2123-1634 | [4] | PIN;KNOCK | |
| 22. | 2109-9031 | [1] | BEARING;ROLLER | |
| 23. | 2109-9032 | [1] | BEARING;ROLLER | |
| 24. | 2216-9001 | [3] | CAGE;NEEDLE | |
| 25. | S2225971 | [16] | BOLT;LOCK | |
| 26. | S2224871 | [12] | BOLT;LOCK | |
| 27. | 2180-1235 | [1] | SEAL;OIL | |
| 28. | 2123-1633D2 | [3] | PIN;SPRING | |
| 29. | 2181-1116D4 | [1] | PLUG | |
| 3. | 2112-1156C | [1] | SHAFT;DRIVE | |
| 30. | 2123-1633D1 | [3] | PIN;SPRING | |
| 31. | S6500450 | [1] | RING;SNAP | |
| 32. | S6500500 | [3] | RING;STOP | |
| 33. | S6500850 | [1] | RING;STOP | |
| 34. | 2213-1053B | [1] | COVER;FRONT | |
| 35. | S0112261 | [8] | BOLT | |
| 36. | 2404-1031D | [1] | GEAR;PINION | |
| 36. | 2404-1031E | [1] | GEAR;PINION | |
| 37. | 2403-1039A | [1] | PLATE;LOCK | |
| 38. | 2120-1363 | [4] | BOLT | |
| 39. | 2126-9001 | [2] | WIRE | |
| 4. | 2104-1004C | [1] | GEAR;RING(NO.2) | |
| 40. | S5102901 | [4] | . WASHER;SPRING | |
| 41. | 2536-1002 | [6] | MAGNET | |
| 42. | 2180-1236 | [1] | O-RING ID221.94XW3.53 | |
| 5. | 2101-1006C | [3] | GEAR;PLANETARY(NO.2) | |
| 6. | 2101-1005D | [1] | GEAR;SUN(NO.2) | 2101-1005E |
| 6. | 2101-1005E | [1] | GEAR;SUN(NO.2) | |
| 7. | 2104-1005B | [1] | GEAR;RING(NO.2) | |
| 7. | 2104-1005C | [1] | GEAR;RING(NO.1) | |
| 8. | 2101-1007A | [3] | GEAR;PLANETARY(NO.1) | |
| 8. | 2101-1031 | [3] | GEAR;PLANETARY(NO.1) | |
| 9. | 2101-1008C | [1] | GEAR;SUN(NO.1) | |
| 9. | 2101-1032 | [1] | GEAR;SUN(NO.1) |
