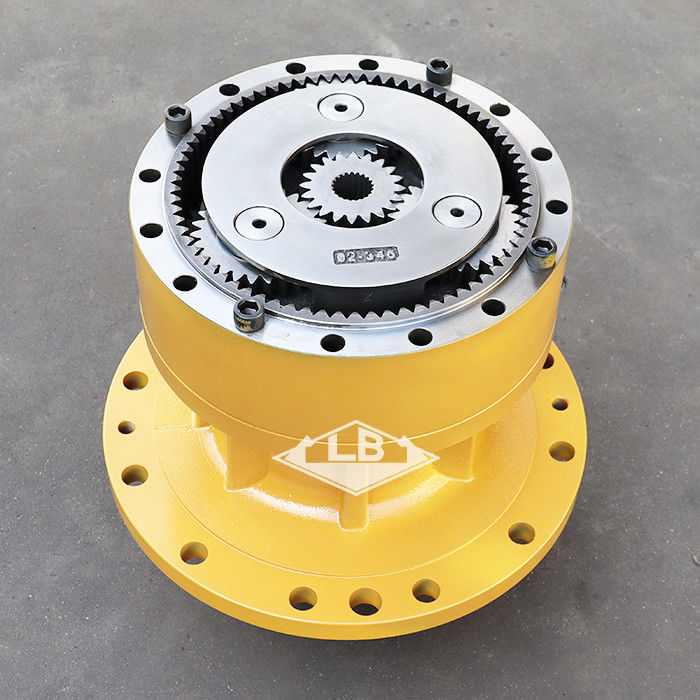

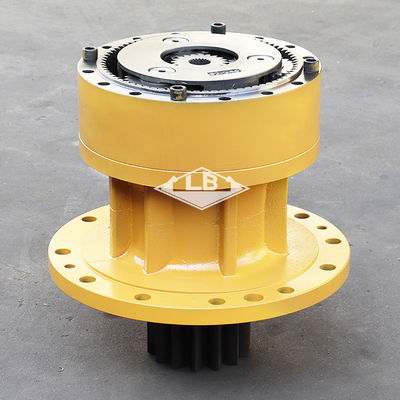

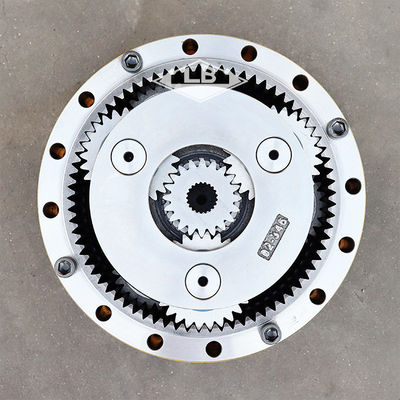

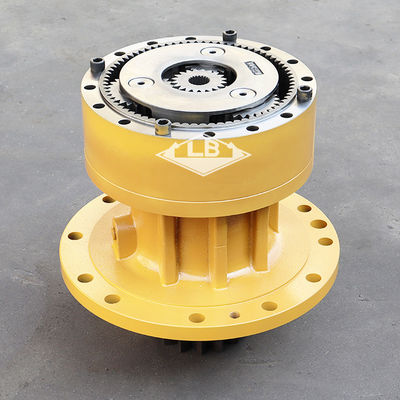

E 320C 320D SWING REDUCTION GEAR 148-4644 1484644 E320 SWING GEARBOX
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | excavator swing gearbox,swing reduction gear,swing drive gearbox |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | E 320 Swing gearbox | |||||
| Equipmen | Apply to E EXCAVATOR | |||||
| Part no. | 148-4644 | |||||
| NO.1 sun gear spline teeth | 21 splines | |||||
| Swing pinion shaft teeth | 14T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 200KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts for your 320C EXCAVATOR:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 094-0584 | [6] | WASHER (40.3X72X1-MM THK) | |
| 2. | 094-1509 | [3] | SHAFT-PLANETARY | |
| 3. | 148-4733 | [3] | GEAR-PLANETARY (26-TEETH) | |
| 4. | 114-1581 | [1] | SPACER (57.5X74X6-MM THK) | |
| 5. | 148-4732 | [1] | GEAR-SUN (20-TEETH) | |
| 6. | 093-1729 | [2] | RING-RETAINING | |
| 7. | 148-4632 | [1] | GEAR-SUN (23-TEETH) | |
| 8. | 191-2578 | [1] | CARRIER-PLANETARY | |
| 9. | 7Y-1434 | [1] | SPACER (40X69.5X6-MM THK) | |
| 10. | 148-4637 | [1] | CARRIER-PLANETARY | |
| 11. | 148-4640 | [1] | RING-RETAINING | |
| 12. | 148-4643 | [1] | BEARING | |
| 13. | 095-1022 | [1] | BEARING-ROLLER | |
| 14. | 148-4642 | [1] | SEAL-O-RING | |
| 15. | 227-6228 | [1] | CAGE | |
| 16. | 453-3447 M | [6] | BOLT (M12X1.75X40-MM) | |
| 17. | 451-2182 | [6] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 18. | 199-4561 | [2] | SEAL-LIP TYPE | |
| 19. | 148-4636 | [1] | SHAFT-PINION | |
| 20. | 148-4638 | [1] | HOUSING | |
| 21. | 3K-0360 | [1] | SEAL-O-RING | |
| 22. | 6V-7238 | [1] | VALVE-SHUTOFF (SWING DRIVE) | |
| 23. | 148-4634 | [3] | SHAFT-PLANETARY | |
| 24. | 095-0891 | [3] | PIN-SPRING | |
| 25. | 148-4635 | [1] | GEAR-RING (73-TEETH) | |
| 26. | 148-4633 | [3] | GEAR-PLANETARY (25-TEETH) | |
| 27. | 7Y-0252 | [6] | BEARING AS-ROLLER | |
| 28. | 094-0611 | [6] | WASHER (47.3X76X1-MM THK) | |
| 29. | 095-0886 | [3] | PIN-SPRING | |
| 30. | 094-1516 | [3] | BEARING-ROLLER | |
| 31. | 171-9383 | [1] | SPACER |
