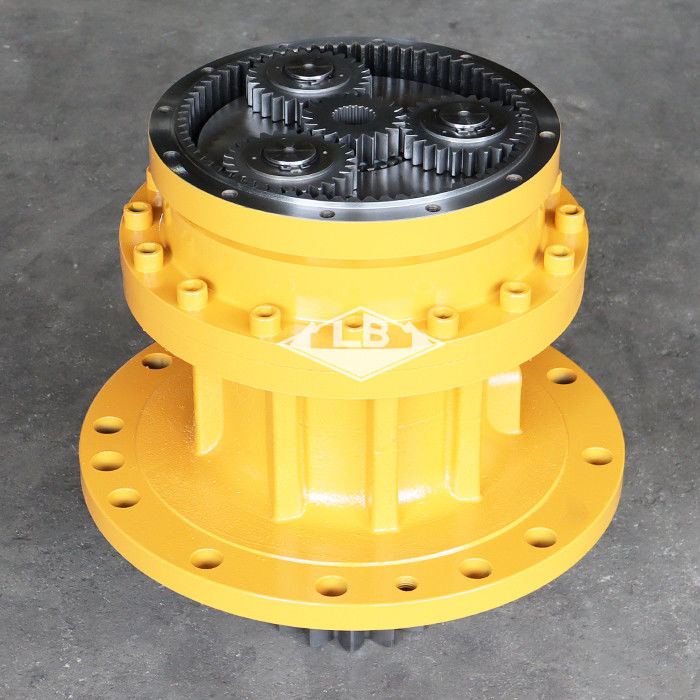

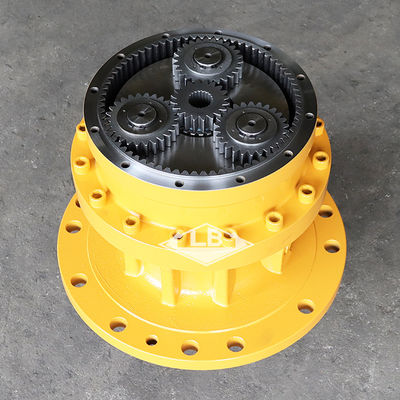

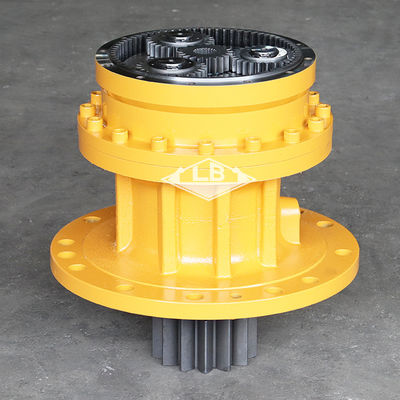

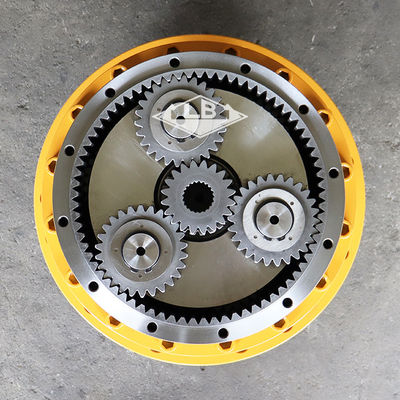

E 320D2 320F SWING DRIVE 378-9517 3789517 E320D2 SWING GEARBOX
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | excavator swing gearbox,swing reduction gear,swing drive gearbox |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | E 320D2 Swing gearbox | |||||
| Equipmen | Apply to E EXCAVATOR | |||||
| Part no. | 378-9517 | |||||
| NO.1 sun gear spline teeth | 21 splines | |||||
| Swing pinion shaft teeth | 14T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 185 KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts for your 320D2 EXCAVATOR:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 6V-7238 | [1] | VALVE-SHUTOFF | |
| 2. | 094-0611 | [6] | WASHER (47.3X76X1-MM THK) | |
| 3. | 148-4636 | [1] | SHAFT-PINION | |
| 4. | 148-4640 | [1] | RING-RETAINING | |
| 5. | 171-9383 | [1] | SPACER | |
| 6. | 199-4561 | [2] | SEAL-LIP TYPE | |
| 7. | 227-6228 | [1] | CAGE | |
| 8. | 367-8364 | [1] | GEAR-SUN (20-TEETH) | |
| 9. | 367-8365 | [3] | GEAR-PLANETARY (26-TEETH) | |
| 10. | 367-8367 | [2] | RING-RETAINING | |
| 11. | 367-8368 | [1] | GEAR-SUN (23-TEETH) | |
| 12. | 367-8369 | [3] | GEAR-PLANETARY (25-TEETH) | |
| 13. | 378-9513 | [3] | SHAFT | |
| 14. | 378-9514 | [1] | CARRIER-PLANETARY | |
| 15. | 378-9515 | [1] | GEAR-RING (73-TEETH) | |
| 16. | 378-9516 | [1] | HOUSING | |
| 17. | 378-9609 | [1] | CARRIER AS | |
| 18. | 451-2182 | [6] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 19. | 453-3447 M | [6] | BOLT (M12X1.75X40-MM) | |
| 20. | 094-0584 | [6] | WASHER (40.3X72X1-MM THK) | |
| 21. | 509-6676 | [3] | PIN-SPRING | |
| 22. | 095-1022 | [1] | BEARING-ROLLER | |
| 23. | 148-4642 | [1] | SEAL-O-RING | |
| 24. | 148-4643 | [1] | BEARING | |
| 25. | 296-6268 | [6] | BEARING AS-ROLLER | |
| 26. | 346-5215 | [3] | BEARING AS | |
| 27. | 3K-0360 | [1] | SEAL-O-RING | |
| 28. | 7I-7623 | [1] | SPACER (52X69.5X6-MM THK) | |
| 29. | 7Y-1434 | [1] | SPACER (40X69.5X6-MM THK) | |
| 30. | 8T-0348 M | [16] | BOLT-SOCKET HEAD (M16X2X50-MM) | |
| 31. | 8T-4240 | [3] | RING-RETAINING | |
| 32. | 9X-8268 | [16] | WASHER (17.5X30X3.5-MM THK) |
