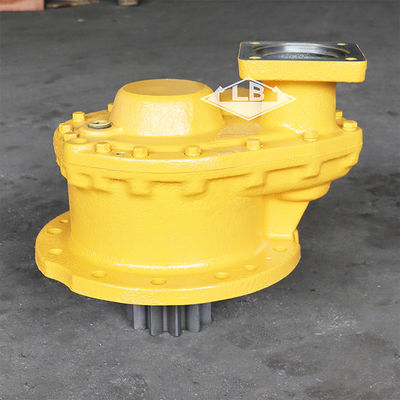

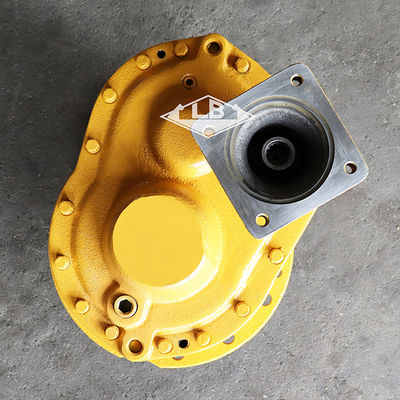

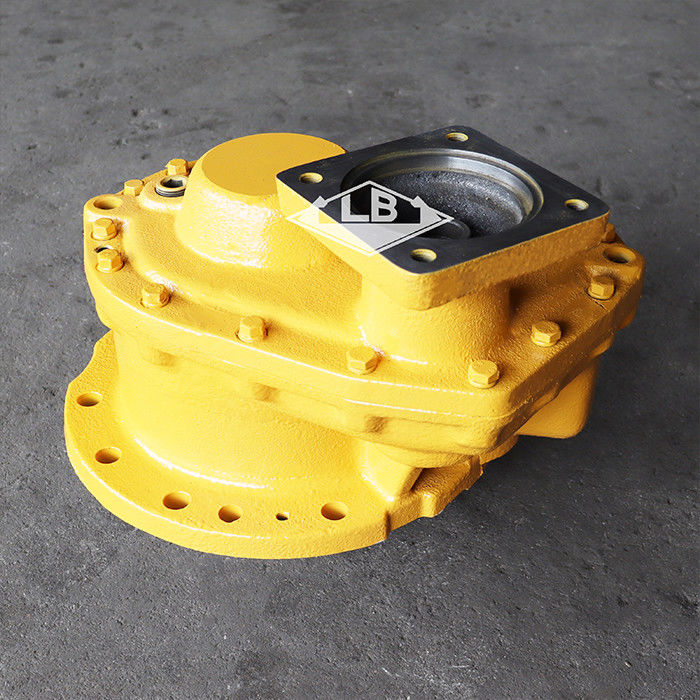

E70 MS070 SWING GEAR ASSY 096-1917 0961917 961917 E70 SWING GEARBOX
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | excavator swing gearbox,swing reduction gear,swing drive gearbox |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | E70 MS070 Swing gearbox | |||||
| Equipmen | Apply to E EXCAVATOR | |||||
| Part no. | 096-1917 0961917 | |||||
| NO.1 sun gear spline teeth | 13 splines | |||||
| Swing pinion shaft teeth | 11T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 75KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts for your E70 EXCAVATOR:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1-31. | 096-1917 | [1] | SWING GEAR ASSY. | |
| 1. | 093-2359 | [1] | GAUGE | |
| 2. | 096-6838 | [1] | PIPE | |
| 3. | 093-4402 | [1] | COUPLING | |
| 4. | 095-0967 | [1] | PLUG | |
| 5. | 095-0589 | [22] | BOLT | |
| 6. | 095-0816 | [22] | WASHER, SPRING | |
| 7. | 096-6848 | [1] | COVER | |
| 8. | 093-4406 | [1] | PACKING | |
| 096-9391 | [1] | PACKING | ||
| 9. | 095-2071 | [1] | BEARING | |
| 10. | 093-1908 | [1] | COLLAR | |
| 11. | 096-1898 | [1] | GEAR | |
| 12. | 093-1911 | [1] | COLLAR | |
| 13. | 095-7203 | [1] | SHAFT | |
| 14. | 095-2072 | [1] | BEARING | |
| 15. | 095-1299 | [2] | PIN, DOWEL | |
| 16. | 093-4408 | [1] | CASING | |
| 17. | 095-0968 | [1] | PLUG | |
| 18. | 095-2073 | [2] | BEARING | |
| 19. | 096-1897 | [1] | PINION |
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 20. | 095-0504 | [2] | BOLT | |
| 21. | 095-0817 | [2] | WASHER, SPRING | |
| 22. | 096-6839 | [1] | RETAINER | |
| 23. | 095-2069 | [1] | BEARING | |
| 24. | 093-1902 | [1] | COLLAR | |
| 25. | 096-1931 | [1] | GEAR | |
| 26. | 093-1906 | [1] | COLLAR | |
| 27. | 095-2074 | [1] | BEARING | |
| 28. | 093-4416 | [1] | SEAL | |
| 29. | 095-1678 | [1] | O-RING | |
| 30. | 093-4411 | [1] | COVER | |
| 31. | 093-4413 | [1] | SHAFT |
