E 311C 311D 312C 312D SWING DRIVE 169-5549 1695549 E311 E311C SWING GEARBOX
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | excavator swing gearbox,swing reduction gear,swing drive gearbox |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | E311 E312 Swing gearbox | |||||
| Equipmen | Apply to E EXCAVATOR | |||||
| Part no. | 169-5549 | |||||
| NO.1 sun gear spline teeth | 14 splines | |||||
| Swing pinion shaft teeth | 13T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 95KG | |||||
| MOQ | 1 pc | |||||
Product Description

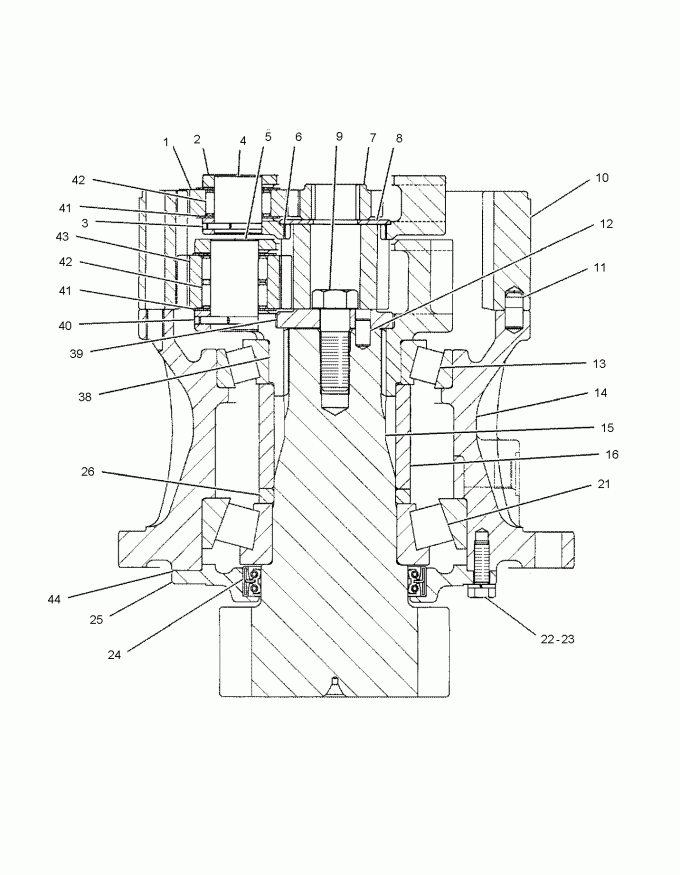

Parts for your 312C EXCAVATOR:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 191-2600 | [3] | GEAR-PLANETARY | |
| 2. | 191-2599 | [1] | CARRIER-PLANETARY | |
| 3. | 191-2604 | [3] | PIN-SPRING | |
| 4. | 191-2603 | [3] | SHAFT-PLANETARY | |
| 5. | 191-2609 | [3] | SHAFT-PLANETARY | |
| 6. | 191-2605 | [1] | WASHER (30X75X3-MM THK) | |
| 7. | 191-2611 | [1] | GEAR-SUN | |
| 8. | 191-2612 | [1] | GEAR-SUN | |
| 9. | 114-8224 M | [1] | BOLT (M20X1.5-THD) | |
| 10. | 191-2613 | [1] | GEAR-RING | |
| 11. | 093-6089 | [2] | DOWEL | |
| 12. | 095-0893 | [1] | PIN-SPRING | |
| 13. | 7I-7625 | [1] | BEARING AS-ROLLER | |
| 14. | 191-2615 | [1] | HOUSING | |
| 15. | 191-2614 | [1] | SHAFT-PINION | |
| 16. | 7I-7632 B | [1] | SPACER (69.5-MM THK) | |
| 7I-7633 B | [1] | SPACER (69.8-MM THK) | ||
| 7I-7634 B | [1] | SPACER (70.1-MM THK) | ||
| 7I-7635 B | [1] | SPACER (70.4-MM THK) | ||
| 7I-7636 B | [1] | SPACER (70.7-MM THK) | ||
| 21. | 7I-7626 | [1] | BEARING AS-ROLLER | |
| 22. | 8T-4195 M | [8] | BOLT (M10X1.5X30-MM) | |
| 23. | 8T-4121 | [8] | WASHER-HARD (11X21X2.5-MM THK) | |
| 24. | 099-0233 | [1] | SEAL-LIP TYPE | |
| 25. | 099-0235 | [1] | CAGE | |
| 26. | 7I-7638 B | [1] | SPACER (10-MM THK) | |
| 7I-7639 B | [1] | SPACER (10.03-MM THK) | ||
| 7I-7640 B | [1] | SPACER (10.05-MM THK) | ||
| 7I-7641 B | [1] | SPACER (10.08-MM THK) | ||
| 7I-7642 B | [1] | SPACER (10.1-MM THK) | ||
| 7I-7643 B | [1] | SPACER (10.12-MM THK) | ||
| 7I-7644 B | [1] | SPACER (10.15-MM THK) | ||
| 7I-7645 B | [1] | SPACER (10.18-MM THK) | ||
| 7I-7646 B | [1] | SPACER (10.2-MM THK) | ||
| 7I-7647 B | [1] | SPACER (10.23-MM THK) | ||
| 7I-7648 B | [1] | SPACER (10.25-MM THK) | ||
| 7I-7649 B | [1] | SPACER (10.28-MM THK) | ||
| 38. | 191-2607 | [1] | CARRIER-PLANETARY | |
| 39. | 114-8223 | [1] | RETAINER | |
| 40. | 191-2610 | [3] | PIN-SPRING | |
| 41. | 191-2602 | [12] | WASHER (32X56X1.2-MM THK) | |
| 42. | 191-2601 | [9] | BEARING | |
| 43. | 191-2608 | [3] | GEAR-PLANETARY | |
| 44. | 1U-8846 B | SEALANT-GASKET |
