Product Description
PRODUCT PARAMETERS

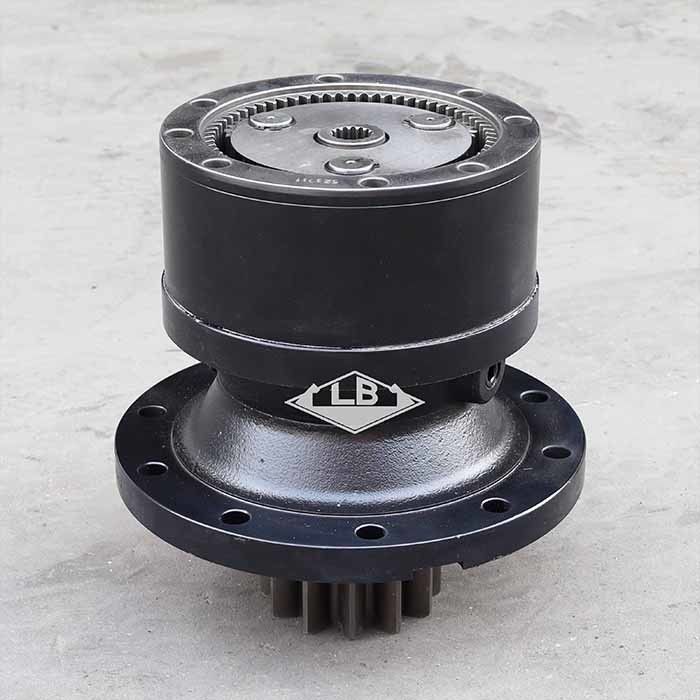

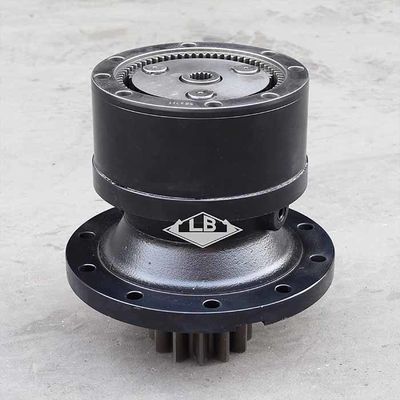

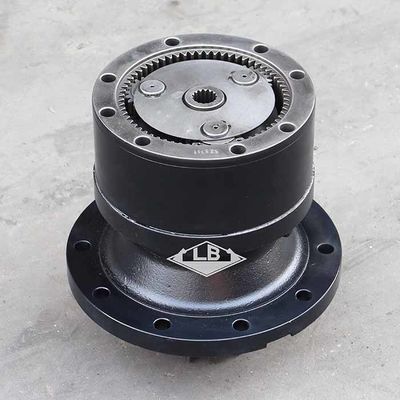

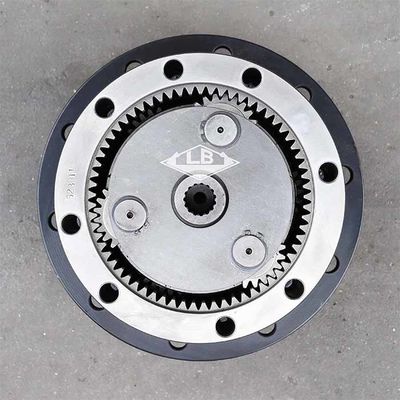

| Part name | EX60-5 swing gearbox | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | 4398053 | |||||
| NO.1 sun gear spline teeth | 15 splines | |||||
| Swing pinion shaft teeth | 12T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 80 KG | |||||
| MOQ | 1 pc | |||||
Product Descriptio
Parts on group TRANSMISSION:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 4398053 | [1] | T.MISSION | 4398053 | |
| 01. | M341403 | [8] | BOLT;SOCKET | |
| 02. | 4397235 | [1] | PLATE | |
| 03. | 4397236 | [1] | GEAR;SUN | |
| 04. | 4397246 | [1] | CARRIER | |
| 05. | 4397237 | [1] | GEAR;SUN | |
| 06. | 4397238 | [1] | PLATE;THRUST | |
| 07. | 4397239 | [1] | CARRIER | |
| 09. | 4397240 | [1] | NUT | |
| 10. | 4397241 | [1] | BRG.;ROL. | |
| 11. | 4395197 | [1] | SEAL;OIL | |
| 14. | 4397242 | [1] | BRG.;ROL. | |
| 18. | 4397244 | [3] | GEAR;PLANETARY | |
| 19. | 4397245 | [3] | BRG.;NEEDLE | |
| 22. | 4397247 | [1] | GEAR;RING | |
| 23. | 4397248 | [3] | GEAR;PLANETARY | |
| 24. | 4267081 | [3] | PLATE;THRUST | |
| 25. | 4134502 | [3] | PIN;SPRING | |
| 26. | 4397249 | [3] | PIN | |
| 27. | 4397250 | [1] | PIPE;DRAIN | |
| 28. | 94-2012 | [1] | PLUG | |
| 29. | 94-2010 | [2] | PLUG | |
| 30. | 4397251 | [1] | HOUSING | |
| 31. | 4397252 | [1] | SEAL;DUST | |
| 32. | 4397253 | [1] | GUIDE | |
| 33. | 4397254 | [1] | SHAFT;PROP. | |
| 34. | 942517 | [3] | RING;RETAINING | |
| 35. | 4397255 | [1] | COVER | |
| 115. | 4397243 | [1] | CAP | |
| 116. | 4255227 | [1] | PIPE | |
| 300. | 4397256 | [1] | SWING DEVICE(WITHOUT MOTER) |
