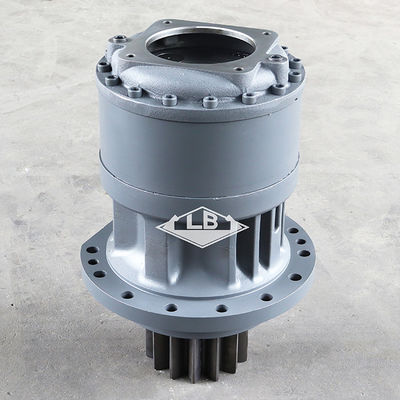

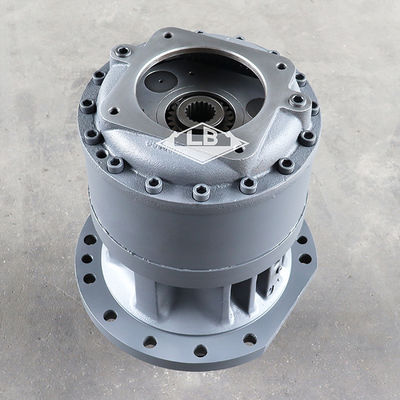

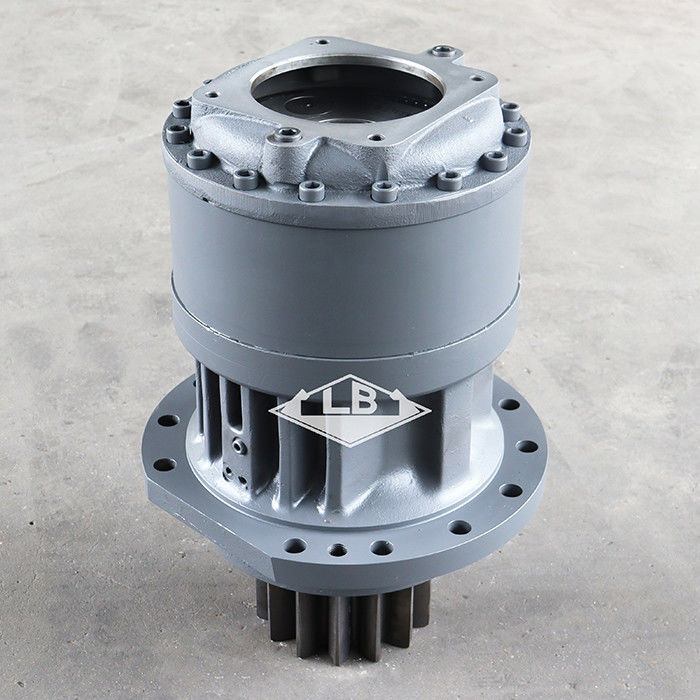

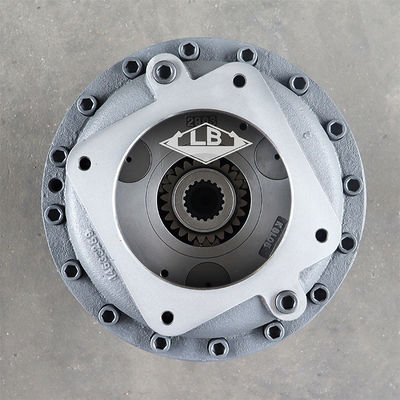

VOLVO EC950E VOE14712083 EC950 SWING GEARBOX FOR EXCAVATOR
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | swing gearbox excavator,swing motor gearbox,swing reduction unit |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | EC950 swing gearbox | |||||
| Equipment | Apply to VOLVO EXCAVATOR | |||||
| Part no. | VOE14712083 | |||||
| NO.1 sun gear spline teeth | 18 splines | |||||
| Swing pinion shaft teeth | 14 T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 372 KG | |||||
| MOQ | 1 pc | |||||
Product Descriptio
Parts on group Swing gearbox:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | VOE14679603 | [1] | Shaft | |
| 2. | VOE14637256 | [1] | Collar | |
| 3. | VOE14637258 | [1] | Ring | |
| 4. | VOE14622894 | [1] | Roller bearing | |
| 5. | VOE14596611 | [1] | Seal | |
| 6. | VOE14637257 | [1] | Cover | |
| 7. | VOE984088 | [12] | Hex. socket screw | |
| 8. | VOE14637261 | [1] | Roller bearing | |
| 9. | VOE14883598 | [1] | Retaining ring | |
| 10. | SA9324-21317 | [4] | Pin | |
| 11. | VOE14622914 | [1] | Gear | |
| 12. | SA7118-30380 | [1] | Thrust ring | |
| 13. | VOE14676744 | [1] | Planet carrier | |
| 14. | VOE14596618 | [4] | Washer | |
| 15. | VOE952004 | [4] | Spring pin | |
| 16. | VOE14637262 | [1] | Gear | |
| 17. | VOE14596621 | [1] | Thrust washer | |
| 18. | VOE14647338 | [1] | Planet carrier | |
| 19. | SA9325-06012 | [3] | Spring pin | |
| 20. | VOE14647497 | [1] | Gear | |
| 21. | VOE14633289 | [1] | Cover | |
| 22. | VOE995261 | [16] | Hex. socket screw | |
| 23. | SA9415-43052 | [2] | Plug | |
| 24. | SA9415-43012 | [1] | Plug | |
| 25. | VOE914167 | [1] | LubriEing nipple | |
| 26. | SA9415-43032 | [1] | Plug |
