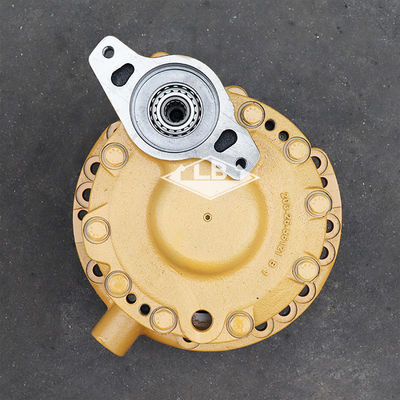

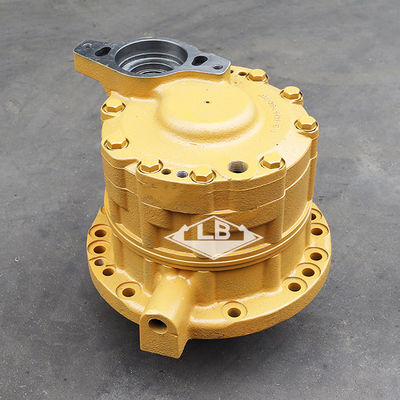

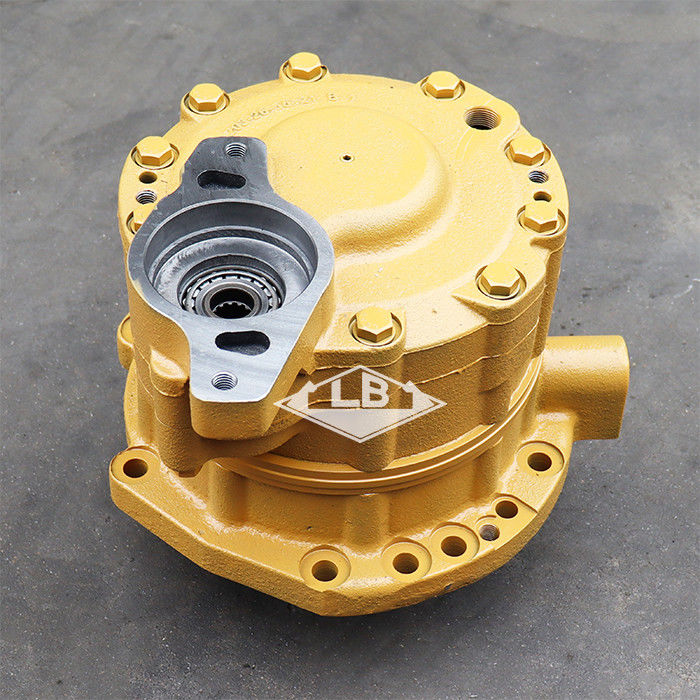

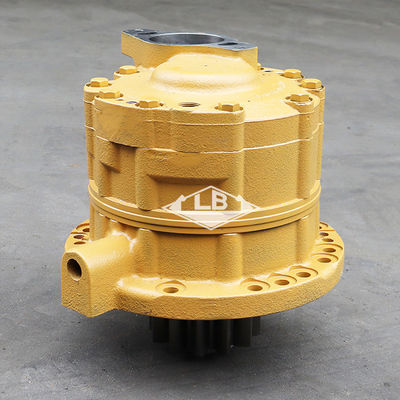

• Komatsu PC100-5 PC120-5 SWING MACHINERY 203-26-00112 2032600112 PC120-5 SWING GEARBOX
  • Komatsu PC100-5 PC120-5 SWING MACHINERY 203-26-00112 2032600112 PC120-5 SWING GEARBOX
  • Komatsu PC100-5 PC120-5 SWING MACHINERY 203-26-00112 2032600112 PC120-5 SWING GEARBOX
  • Komatsu PC100-5 PC120-5 SWING MACHINERY 203-26-00112 2032600112 PC120-5 SWING GEARBOX
Komatsu PC100-5 PC120-5 SWING MACHINERY 203-26-00112 2032600112 PC120-5 SWING GEARBOX

Komatsu PC100-5 PC120-5 SWING MACHINERY 203-26-00112 2032600112 PC120-5 SWING GEARBOX

Product Details:

Get Best Price Contact Now

Detail Information
Highlight:

excavator swing gearbox

,

swing reduction gear

,

swing drive gearbox

Product Description

PRODUCT PARAMETERS
Part name
 PC100-5 PC120-5 Swing gearbox
Equipment Apply to KOMATSU EXCAVATOR
Part no. 203-26-00112
NO.1 sun gear spline teeth 13 splines
Swing pinion shaft teeth 12T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc


Product Description

Komatsu PC100-5 PC120-5 SWING MACHINERY 203-26-00112 2032600112 PC120-5 SWING GEARBOX 0Komatsu PC100-5 PC120-5 SWING MACHINERY 203-26-00112 2032600112 PC120-5 SWING GEARBOX 1Komatsu PC100-5 PC120-5 SWING MACHINERY 203-26-00112 2032600112 PC120-5 SWING GEARBOX 2

Pos. Part No Qty Parts name Comments

  203-26-00112   [1]   SWING MACHINERY A. Komatsu China

  ["SN: 36601-UP"] |$0.
   1.   203-26-56130   [1]   CASE Komatsu China

  ["SN: 36601-UP"]
   2.   07323-30600   [1]   ELBOW Komatsu 0.15 kg.

  ["SN: 36601-UP"]
   3.   07042-30617   [1]   PLUG Komatsu China

  ["SN: 36601-UP"]
   4.   07049-01620   [2]   PLUG Komatsu 0.002 kg.

  ["SN: 36601-UP"]
   5.   06030-22316   [1]   BEARING Komatsu China 6.26 kg.

  ["SN: 36601-UP"]
   6.   04071-00170   [1]   RING,SNAP Komatsu 0.2 kg.

  ["SN: 36601-UP"]
   7.   203-26-51142   [1]   CARRIER Komatsu China

  ["SN: 36601-UP"]
   8.   07043-00415   [1]   PLUG Komatsu 0.03 kg.

  ["SN: 36601-UP"]
   9.   203-26-51521   [3]   GEAR Komatsu 0.9 kg.

  ["SN: 36601-UP"]
   10.   203-26-41240   [3]   BEARING Komatsu 0.175 kg.

  ["SN: 36601-UP"]
   11.   203-26-41250   [6]   WASHER,THRUST Komatsu 0.041 kg.

  ["SN: 36601-UP"]
   12.   203-26-51331   [3]   PIN Komatsu China

  ["SN: 36601-UP"]
   13.   04260-00635   [3]   BALL Komatsu 0.012 kg.

  ["SN: 36601-UP"] analogs:["805750022", "YM24190080001", "21D0986810"]
   14.   07012-00100   [1]   SEAL,OIL Komatsu China 0.096 kg.

  ["SN: 36601-UP"]
   15.   203-26-41191   [1]   GEAR Komatsu 4.81 kg.

  ["SN: 36601-UP"]
   16.   07000-05065   [1]   O-RING Komatsu China 0.01 kg.

  ["SN: 36601-UP"]
   17.   20G-26-11250   [1]   HOLDER Komatsu China

  ["SN: 36601-UP"]
   18.   01011-52015   [1]   BOLT Komatsu 0.346 kg.

  ["SN: 36601-UP"] analogs:["0101183015", "0101182015", "0101162015", "0104142015", "0101163015"]
   19.   203-26-41350   [1]   RING,SNAP Komatsu China

  ["SN: 36601-UP"]
   20.   06033-00217   [1]   BEARING Komatsu China

  ["SN: 36601-UP"]
   21.   203-26-56150   [1]   GEAR Komatsu 5.31 kg.

  ["SN: 36601-UP"]
   22.   04020-01228   [1]   PIN,DOWEL Komatsu 0.026 kg.

  ["SN: 36601-UP"] analogs:["21T3016190"]
   23.   203-26-56140   [1]   CASE Komatsu China

  ["SN: 36601-UP"]
   25.   07043-00312   [1]   PLUG Komatsu 0.015 kg.

  ["SN: 36601-UP"] analogs:["YMR000378", "YM23871030000"]
   26.   01011-51430   [1]   BOLT Komatsu China

  ["SN: 36601-UP"] analogs:["0101131430", "0101161430", "0101181430", "6112216580", "7015061241"]
   27.   01643-31445   [1]   WASHER Komatsu 0.019 kg.

  ["SN: 36601-UP"] analogs:["0164301432"]
   28.   06040-06007   [1]   BEARING Komatsu 0.168 kg.

  ["SN: 36601-UP"]
   29.   203-26-51553   [1]   GEAR Komatsu 7.6 kg.

  ["SN: 36601-UP"]
   30.   06030-06209   [1]   BEARING Komatsu China 0.43 kg.

  ["SN: 36601-UP"]
   31.   203-26-56110   [1]   GEAR Komatsu 0.4 kg.

  ["SN: 36601-UP"]
   32.   06002-30207   [2]   BEARING Komatsu 0.35 kg.

  ["SN: 36601-UP"]
   33.   203-26-56121   [1]   COVER Komatsu China

  ["SN: 36601-UP"]
   34.   07042-30108   [1]   PLUG Komatsu 0.008 kg.

  ["SN: 36601-UP"] analogs:["0704220108"]
   35.   07049-01822   [4]   PLUG Komatsu 0.002 kg.

  ["SN: 36601-UP"]
   36.   01010-51265   [1]   BOLT Komatsu 0.074 kg.

  ["SN: 36601-UP"] analogs:["0101081265"]
   37.   01643-31232   [1]   WASHER Komatsu 0.027 kg.

  ["SN: 36601-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
   38.   01011-51465   [9]   BOLT Komatsu 0.22 kg.

  ["SN: 36601-UP"] analogs:["0101161465", "0101181465"]
40.   203-26-56160   [1]   FILLER Komatsu China

  ["SN: 36601-UP"]
41.   20X-26-21322   [1]   GAUGE Komatsu 0.09 kg.

  ["SN: 36601-UP"]
42.   04020-01638   [2]   PIN,DOWEL Komatsu 0.064 kg.

  ["SN: 36601-UP"]
43.   01010-51655   [12]   BOLT Komatsu 0.119 kg.

  ["SN: 36601-UP"] analogs:["0101061655", "801015613", "0101031655", "0101081655"]
44.   01643-31645   [12]   WASHER Komatsu 0.072 kg.

  ["SN: 36601-UP"] analogs:["802170005", "0164301645"]
