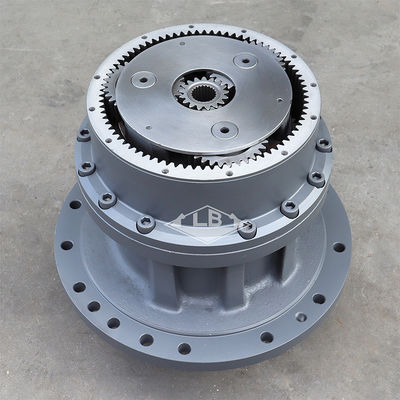

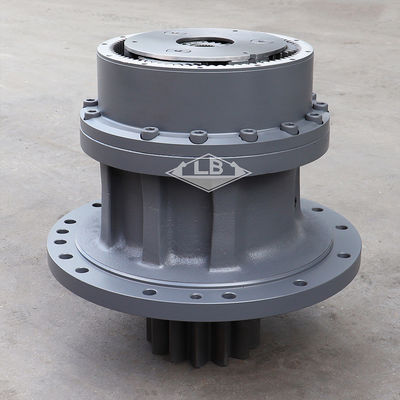

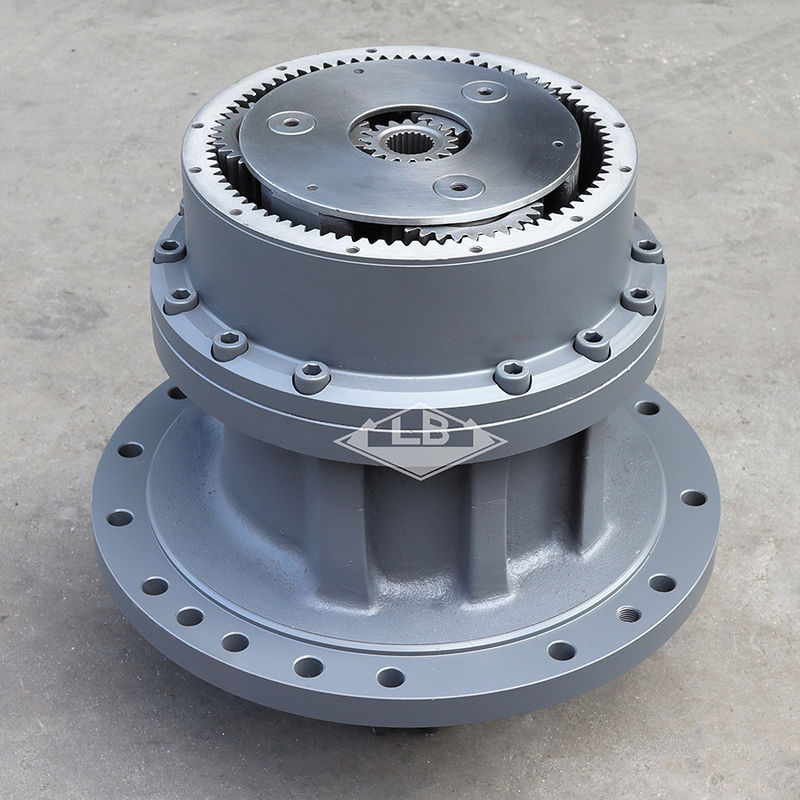

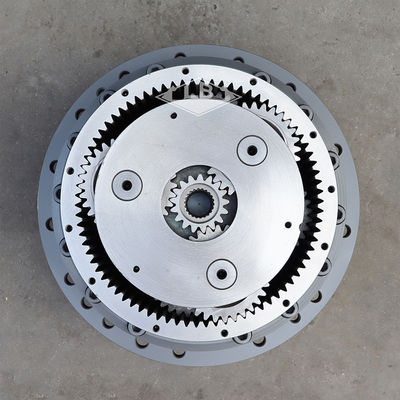

• HX300 R290LC-7 R290LC-9 R300LC-9 SWING REDUCTION GEAR 39QB-12101 38K8-10150 38K8-11100 R300-9 SWING GEARBOX
  • HX300 R290LC-7 R290LC-9 R300LC-9 SWING REDUCTION GEAR 39QB-12101 38K8-10150 38K8-11100 R300-9 SWING GEARBOX
  • HX300 R290LC-7 R290LC-9 R300LC-9 SWING REDUCTION GEAR 39QB-12101 38K8-10150 38K8-11100 R300-9 SWING GEARBOX
  • HX300 R290LC-7 R290LC-9 R300LC-9 SWING REDUCTION GEAR 39QB-12101 38K8-10150 38K8-11100 R300-9 SWING GEARBOX
HX300 R290LC-7 R290LC-9 R300LC-9 SWING REDUCTION GEAR 39QB-12101 38K8-10150 38K8-11100 R300-9 SWING GEARBOX

HX300 R290LC-7 R290LC-9 R300LC-9 SWING REDUCTION GEAR 39QB-12101 38K8-10150 38K8-11100 R300-9 SWING GEARBOX

Product Details:

Get Best Price Contact Now

Detail Information
Highlight:

swing gearbox excavator

,

swing motor gearbox

,

swing reduction unit

Product Description

PRODUCT PARAMETERS
Part name
 HX300 R290LC-7 R290LC-9 R300LC-9 Swing gearbox
Equipment Apply to HYUNDAI EXCAVATOR
Part no. 39QB-12101
NO.1 sun gear spline teeth 22 splines
Swing pinion shaft teeth 15 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc


Product Description

HX300 R290LC-7 R290LC-9 R300LC-9 SWING REDUCTION GEAR 39QB-12101 38K8-10150 38K8-11100 R300-9 SWING GEARBOX 0HX300 R290LC-7 R290LC-9 R300LC-9 SWING REDUCTION GEAR 39QB-12101 38K8-10150 38K8-11100 R300-9 SWING GEARBOX 1HX300 R290LC-7 R290LC-9 R300LC-9 SWING REDUCTION GEAR 39QB-12101 38K8-10150 38K8-11100 R300-9 SWING GEARBOX 2

Parts on group SWING REDUCTION GEAR:

Pos. Part No Qty Parts name Comments
*-2. 39Q8-12101 [1]   SWING REDUCTION GEAR      SEE 4100
1. 39Q8-12110 [1]   GEAR RING
2. 39Q8-12120 [1]   SHAFT-DRIVE
3. 39Q8-12130 [1]   BEARING-SPH.ROLLER      MAIN
4. 39Q8-12140 [1]   BEARING-SPH.ROLLER      SUB
5. 39Q8-12150 [1]   PLATE-THRUST
6. 39Q8-12160 [1]   RING-SNAP
7. 39Q8-12170 [1]   COVER
8. S017-120306 [12]   BOLT-HEX
9. 39Q8-12180 [1]   CASING
10. S632-290001 [1]   O-RING
11. S109-100306 [12]   BOLT-SOCKET
K12. 39Q8-12201 [1]   CARRIER NO.2
K13. 39Q8-12211 [4]   GEAR-PLANETARY NO.2
K14. 39Q8-12220 [4]   BEARING-NEEDLE NO.2
K15. 39Q8-12231 [8]   WASHER-THRUST NO.2
K16. 39Q8-12240 [4]   PIN-CARRIER NO.2
K17. S472-910404 [4]   PIN-SPRING
K18. 39Q8-12251 [1]   GEAR-SUN NO.2
K19. 39Q8-12261 [1]   PLATE-THRUST NO.2
K20. 39Q8-12281 [1]   CARRIER NO.1
K21. 39Q8-12291 [3]   GEAR-PLANETARY NO.1
K22. 39Q8-12300 [3]   BEARING-NEEDLE NO.1
K23. 39Q8-12311 [6]   WASHER-THRUST NO.1
K24. 39Q8-12320 [3]   PIN-CARRIER NO.1
K25. S472-800404 [3]   PIN-SPRING NO.1
K26. 39Q8-12331 [1]   GEAR-SUN NO.1
K27. 39Q8-12341 [1]   PLATE-THRUST NO.1
28. 39Q8-12350 [1]   SLEEVE
29. S632-140001 [1]   O-RING
30. 39Q6-12350 [1]   SEAL-OIL
31. 39Q6-41450 [2]   PIN-PARALLEL
32. S109-18050D [14]   BOLT-SOCKET
33. 39Q8-12361 [1]   NAME PLATE
34. 39Q6-41800 [2]   RIVET
35. P220-430204 [1]   PLUG-HEX
K. 39Q8-12270 [1]   CARRIER ASSY KIT 1      SEE ILLUST
K. 39Q8-12190 [1]   CARRIER ASSY KIT 2
