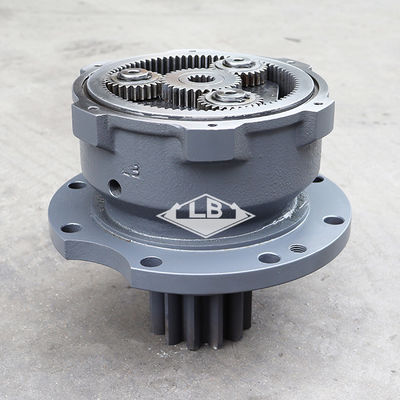

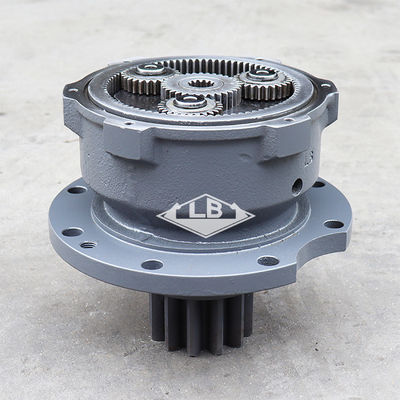

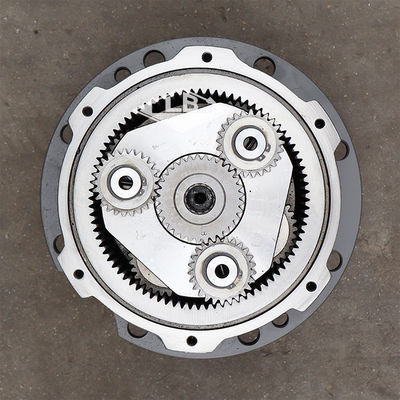

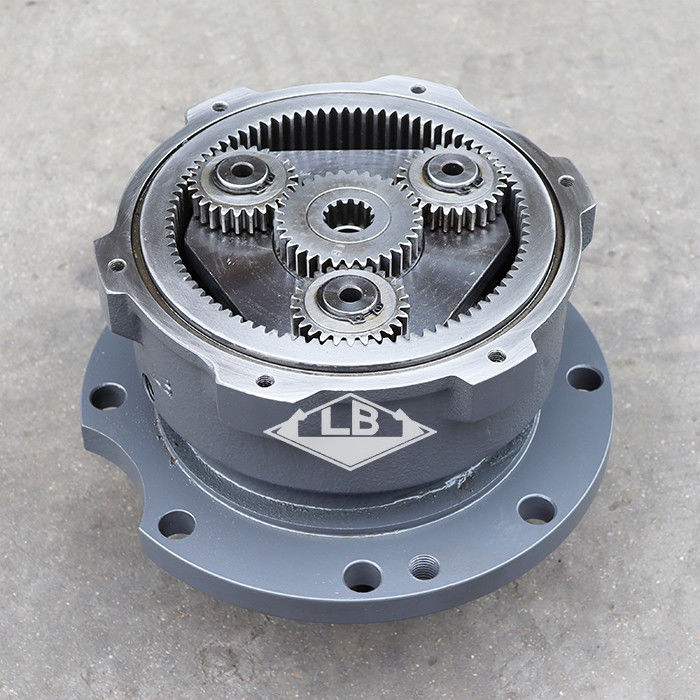

VOLVO EC55 EC60 Swing gearbox SA8230-24760 VOE14529547 EC55 SWING GEARBOX
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | swing gearbox excavator,swing motor gearbox,swing reduction unit |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | EC55 EC60 swing gearbox | |||||
| Equipment | Apply to VOLVO EXCAVATOR | |||||
| Part no. | SA8230-24760 VOE14529547 | |||||
| NO.1 sun gear spline teeth | 13 splines | |||||
| Swing pinion shaft teeth | 12 T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 45 KG | |||||
| MOQ | 1 pc | |||||
Product Descriptio
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14529547 | [1] | Reduction gear | ||
| 1. | VOE14503948 | [1] | Carrier | |
| 2. | VOE14503933 | [3] | Gear | |
| 3. | VOE14503939 | [3] | Pin | |
| 4. | VOE14503944 | [1] | Ring | |
| 5. | VOE14503946 | [3] | Ring | |
| 6. | VOE14503932 | [1] | Gear | |
| 7. | VOE14503947 | [1] | Carrier | |
| 8. | VOE14503931 | [4] | Gear | |
| 9. | VOE14503940 | [4] | Pin | |
| 10. | VOE14503945 | [4] | Ring | |
| 11. | VOE14503949 | [1] | Shaft | |
| 12. | VOE14503937 | [1] | Seal | |
| 13. | VOE14503938 | [1] | Seal | |
| 14. | VOE14503941 | [1] | Bearing | |
| 15. | VOE14503942 | [1] | Bearing | |
| 16. | VOE14529015 | [1] | Valve | |
| 17. | VOE14503934 | [1] | Gear | |
| 18. | VOE14503935 | [1] | Collar | |
| 19. | VOE14503936 | [1] | Collar | |
| 20. | SA8230-27020 | [1] | O-ring | |
| 21. | SA8230-32040 | [6] | Screw |
