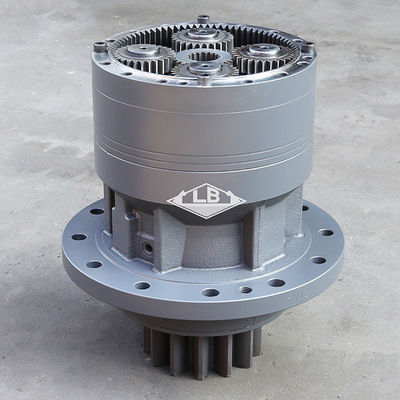

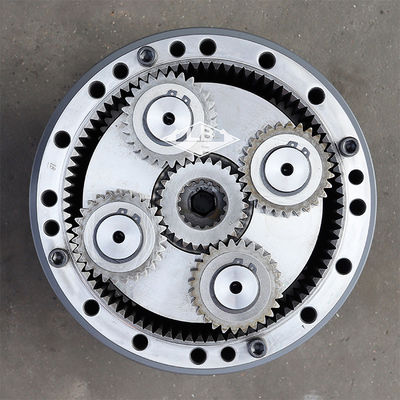

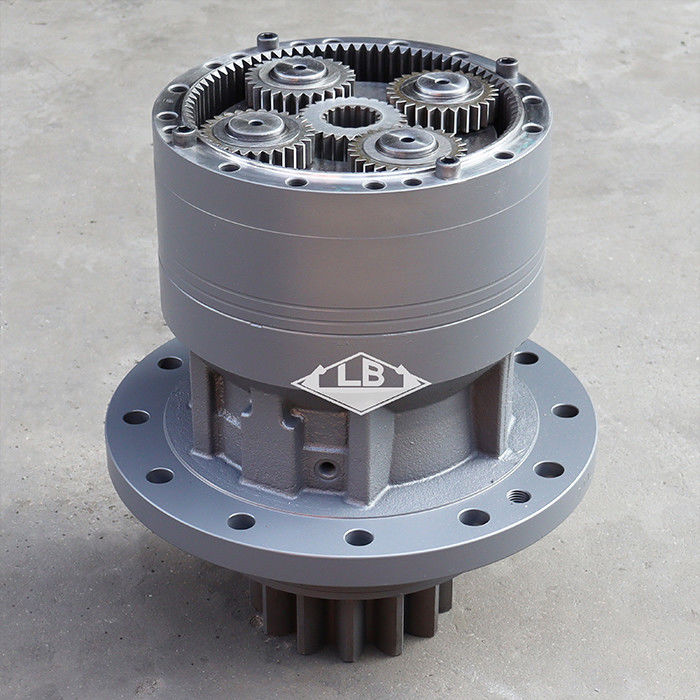

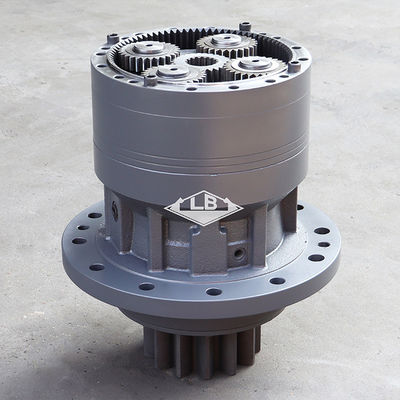

SOLAR225 DX225 DH225 SWING REDUCTION GEAR K1004160A 130426-00004 2404-1063 130426-00010 K1038203 404-00097C DX225 swing gearbox
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | swing gearbox excavator,swing motor gearbox,swing reduction unit |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | SOLAR225 DX225 DH225 Swing gearbox | |||||
| Equipment | Apply to HYUNDAI EXCAVATOR | |||||
| Part no. | K1004160A 130426-00004 K1038203 404-00097C | |||||
| NO.1 sun gear spline teeth | 16 splines | |||||
| Swing pinion shaft teeth | 13T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 180 KG | |||||
| MOQ | 1 pc | |||||
Product Description
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 404-00097C | [1] | REDUCTION GEAR ASS'Y | |
| 1. | K1001235 | [1] | CASING | |
| 10. | 230-00061 | [1] | CARRIER NO.2 | |
| 11. | 2114-1901A | [4] | WASHER;THRUST NO.2 | |
| 12. | 104-00050 | [4] | GEAR;PLANET NO.2 | |
| 13. | 110-00219 | [4] | BUSH NO.2 | |
| 14. | 123-00437A | [4] | PIN NO.2 | |
| 15. | S5741341 | [4] | PIN;SPRING | |
| 16. | S0121061 | [1] | BOLT | |
| 17. | 114-00548 | [1] | WASHER;THRUST NO.3 | |
| 18. | 104-00048 | [1] | GEAR;SUN NO.2 | |
| 19. | 2705-1030 | [4] | PIN;KNOCK | |
| 2. | 2112-1248E | [1] | SHAFT;DRIVE | |
| 20. | 230-00060A | [1] | CARRIER NO.1 | |
| 21. | 114-00527 | [3] | WASHER;THRUST NO.1 | |
| 22. | 104-00049A | [3] | GEAR;PLANET NO.1 | |
| 23. | 123-00435A | [3] | PIN ASS'Y NO.1 | |
| 24. | S2217471 | [16] | BOLT;SOCKET | |
| 25. | 104-00047A | [1] | GEAR;SUN NO.1 | |
| 26. | S6500450 | [1] | RING;SNAP | |
| 27. | 2181-1116D2 | [2] | PLUG | |
| 28. | 2181-1116D4 | [1] | PLUG | |
| 29. | 2140-1406 | [1] | PIPE;LEVEL GAUGE | |
| 3. | 2412-1040 | [1] | PLATE | |
| 30. | 2119-1065 | [1] | GAUGE;LEVEL | |
| 31. | S5231090 | [1] | WASHER;DOUBLE TAP | |
| 32. | 140-01374A | [4] | PIPE | |
| 33. | 120-00144 | [8] | BOLT | |
| 4. | 2109-9033 | [1] | BEARING;ROLLER | |
| 5. | 2891-1421B | [1] | PLATE;COVER | |
| 6. | S6500380 | [3] | RING;SNAP | |
| 7. | 2180-1254 | [1] | SEAL;OIL | |
| 8. | 109-00174 | [1] | BEARING;ROLLER | |
| 9. | 104-00051A | [1] | GEAR;RING |
