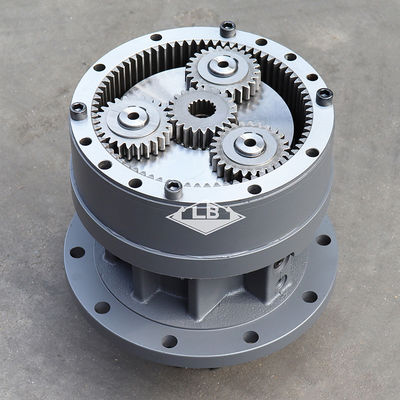

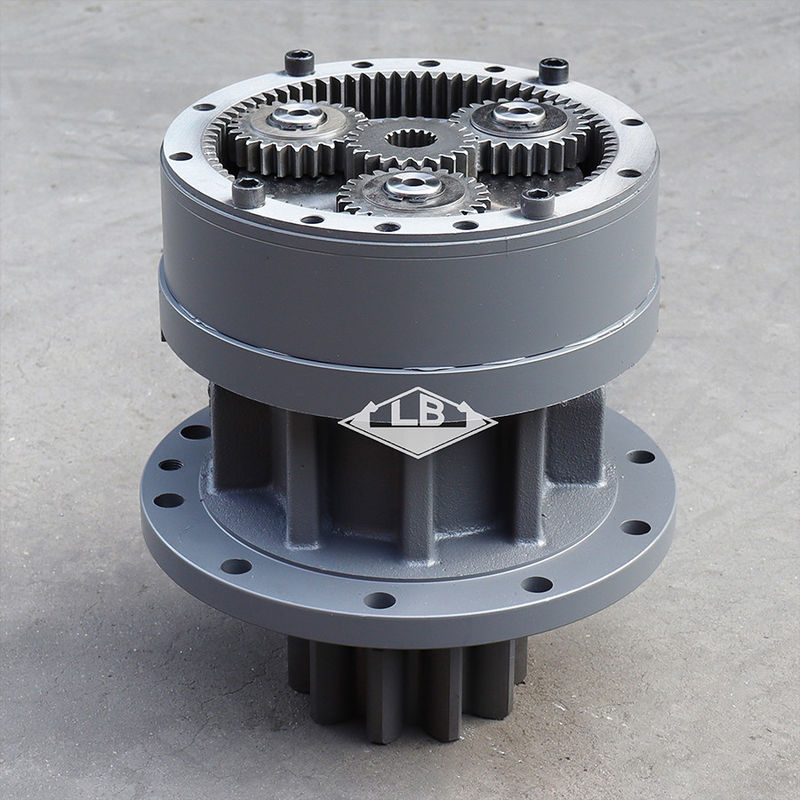

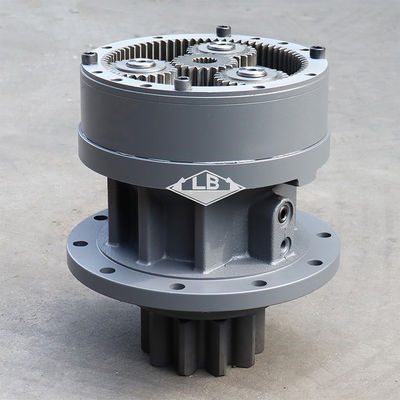

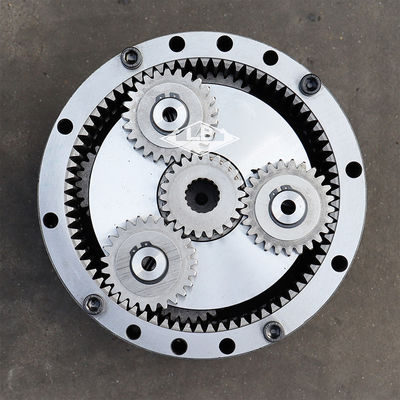

SOLAR130 SOLAR150LC-V DH150 SWING REDUCTION GEAR 2404-1066A 404-00062 SOLAR130 Swing gearbox for excavator
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | swing gearbox excavator,swing motor gearbox,swing reduction unit |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | SOLAR130 SOLAR150LC-V DH150 swing gearbox | |||||
| Equipment | Apply to DOOSAN EXCAVATOR | |||||
| Part no. | 2404-1066A 404-00062 | |||||
| NO.1 sun gear spline teeth | 16 splines | |||||
| Swing pinion shaft teeth | 22T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 90 KG | |||||
| MOQ | 1 pc | |||||
Product Descriptio
Parts on group SOLAR 150LC-V:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 2404-1066A | [1] | REDUCTION GEAR | |
| -. | 404-00062 | [1] | SWING REDUCTION GEAR | |
| 1. | 402-00017 | [1] | CASING | |
| 10. | 123-00094 | [4] | PIN ASS'Y NO.2 | |
| 11. | 123-00095 | [3] | PIN ASS'Y NO.1 | |
| 12. | 2114-1594 | [13] | WASHER;THUST(B) | |
| 13. | 2114-1592 | [2] | WASHER;THUST(A) | |
| 14. | 119-00003 | [1] | BAR;LEVEL | |
| 15. | 182-00009 | [1] | PIPE;LEVEL GAUGE | |
| 16. | 123-00096 | [2] | PIN;KNOCK | |
| 17. | 2109-1041 | [1] | BEARING;ROLLER | |
| 18. | 2109-1042 | [1] | BEARING;ROLLER | |
| 19. | S2216873 | [10] | BOLT;SOCKET | |
| 2. | 405-00006 | [1] | SHAFT;DRIVE | |
| 20. | 180-00179 | [1] | SEAL;OIL | |
| 21. | 2181-1116D4 | [1] | PLUG | |
| 22. | 2181-1116D2 | [2] | PLUG | |
| 23. | S5740890 | [3] | PIN;SPRING | |
| 24. | S6500300 | [4] | RING;RETAINER | |
| 25. | S6500650 | [1] | RING;RETAINER | |
| 26. | 115-00037 | [1] | RING;NILOS | |
| 27. | S5740900 | [4] | PIN;SPRING | |
| 28. | 191-00167 | [2] | PLATE;SUPPORT | |
| 29. | S3453116 | [6] | BOLT;SCREW | |
| 3. | 104-00019 | [1] | GEAR;RING | |
| 4. | 404-00063 | [4] | GEAR;PLANET NO.2 | |
| 5. | 404-00064 | [1] | GEAR;SUN NO.2 | |
| 6. | 404-00065 | [3] | GEAR;PLANET NO.1 | |
| 7. | 404-00066 | [1] | GEAR;SUN NO.1 | |
| 8. | 230-00017 | [1] | CARRIER NO.2 | |
| 9. | 230-00018 | [1] | CARRIER NO.1 |
