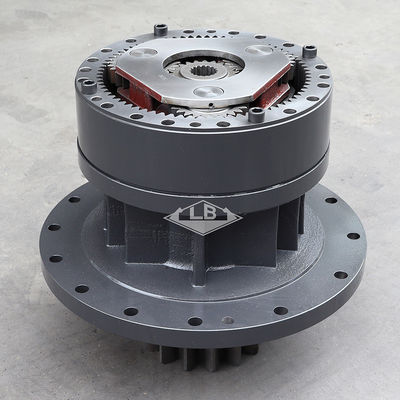

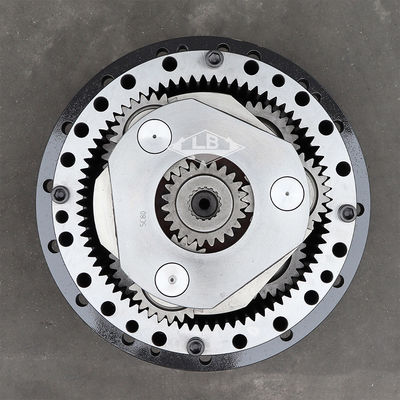

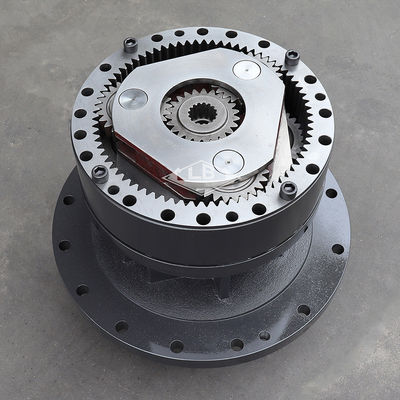

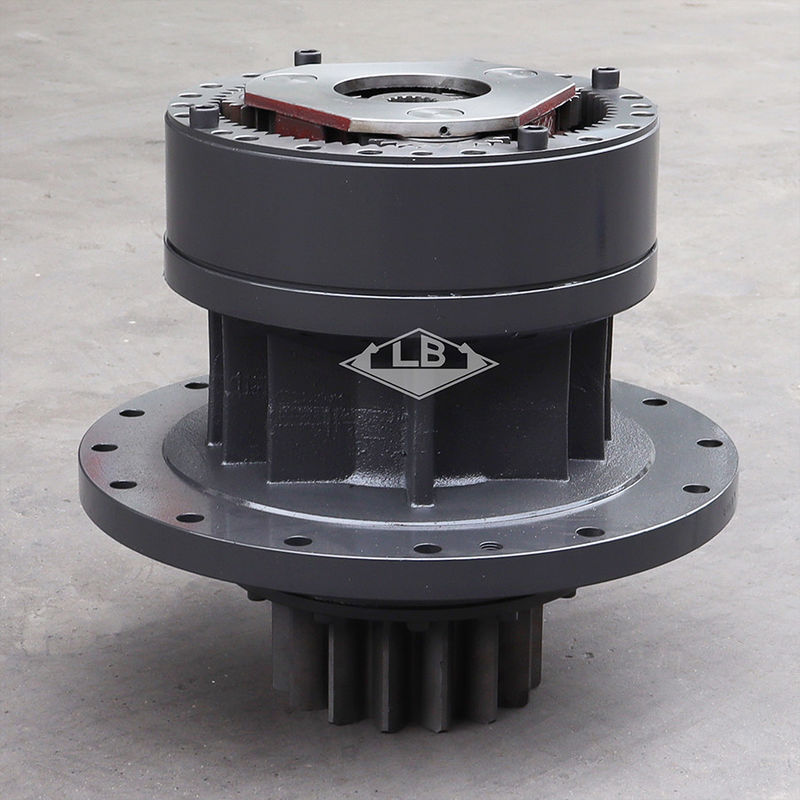

EC350D swing reducer VOE14640501 VOE14724049 EC350 swing gearbox
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | swing gearbox excavator,swing motor gearbox,swing reduction unit |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | EC350 swing gearbox | |||||
| Equipment | Apply to VOLVO EXCAVATOR | |||||
| Part no. | VOE14640501 VOE14724049 | |||||
| NO.1 sun gear spline teeth | 16 splines | |||||
| Swing pinion shaft teeth | 14T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 330 KG | |||||
| MOQ | 1 pc | |||||
Product Descriptio
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14640501 | [1] | Swing gearbox | S/N -231115, -270378, -280656 | |
| VOE14724049 | [1] | Swing gearbox | S/N 231116-, 270379-, 280657- | |
| 1. | VOE14547262 | [1] | Case | |
| 2. | VOE14547260 | [1] | Ring | |
| 3. | VOE14547259 | [1] | Collar | |
| 4. | VOE14640502 | [1] | Shaft | |
| 5. | VOE14547263 | [1] | Cover | |
| 6. | VOE14547266 | [1] | Gear | |
| 7. | VOE984363 | [20] | Hex. socket screw | |
| 8. | VOE944088 | [12] | Screw | |
| 9. | VOE14547261 | [1] | Bearing | |
| 10. | SA9415-43012 | [1] | Plug | |
| 11. | VOE914167 | [1] | LubriEing nipple | |
| 12. | VOE14566830 | [1] | Seal | |
| 13. | VOE14547265 | [1] | Bearing | |
| 14. | SA9541-01110 | [1] | Retaining ring | |
| 15. | SA7118-30380 | [1] | Thrust ring | |
| 16. | VOE14547272 | [1] | Gear | |
| 17. | VOE14547278 | [1] | Thrust washer | |
| 18. | VOE14547279 | [1] | Gear | |
| 19. | VOE14880960 | [1] | Retaining ring | |
| 20. | VOE14547281 | [1] | Pipe | |
| 21. | VOE14547280 | [1] | Planet carrier | |
| 22. | VOE14547267 | [1] | Planet carrier | |
| 23. | VOE14547271 | [4] | Pin | |
| 24. | VOE14547268 | [4] | Gear | |
| 25. | VOE14547269 | [4] | Bushing | |
| 26. | VOE14556491 | [8] | Washer | |
| 27. | SA9325-06012 | [4] | Spring pin | |
| 28. | VOE14547273 | [1] | Planet carrier | |
| 29. | VOE14547274 | [1] | Planet carrier | |
| 30. | VOE14547275 | [3] | Gear | |
| 31. | SA7117-30230 | [3] | Needle bearing | |
| 32. | VOE14547277 | [3] | Pin | |
| 33. | SA9325-06012 | [3] | Spring pin | |
| 34. | VOE14547276 | [6] | Washer | |
| 35. | VOE950677 | [4] | Pin | |
| 36. | VOE949329 | [1] | Gasket | |
| 37. | VOE14722461 | [1] | Draining valve |
