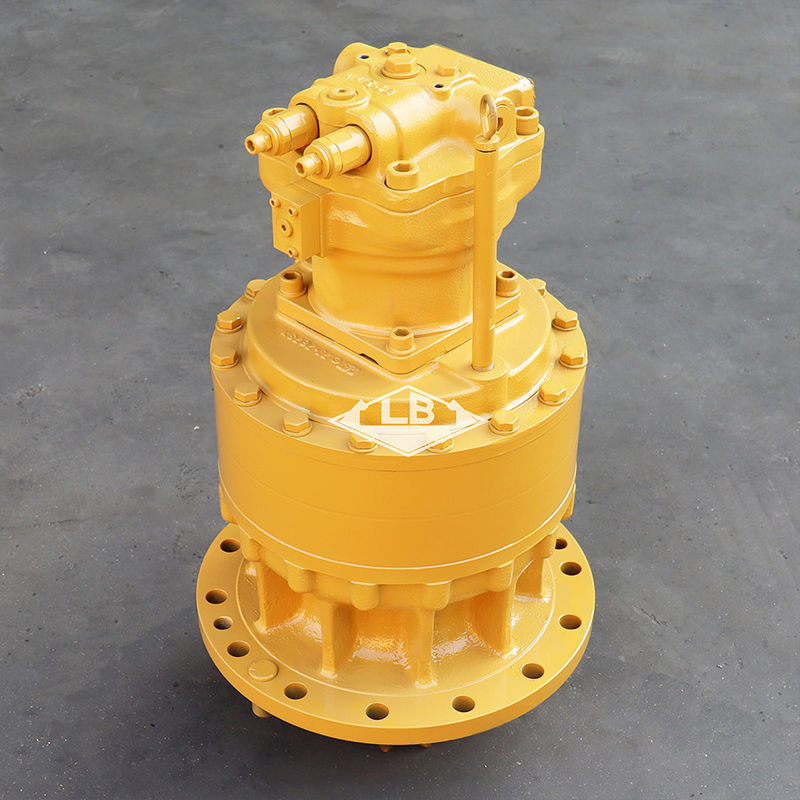

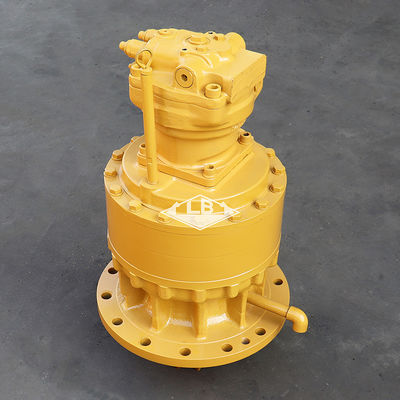

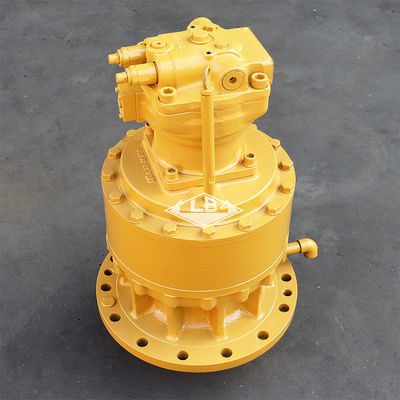

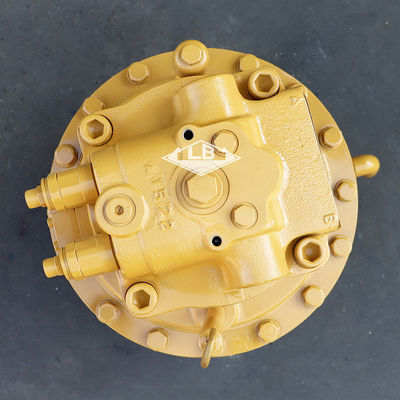

E 325B SWING gearbox with motor 110-7214 114-0661 110-7215 E325B SWING DRIVE
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | swing gearbox excavator,swing motor gearbox,swing reduction unit |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | E 325B Swing gearbox | |||||
| Equipment | Apply to E EXCAVATOR | |||||
| Part no. | 110-7214 114-0661 110-7215 | |||||
| NO.1 sun gear spline teeth | 13 splines | |||||
| Swing pinion shaft teeth | 12T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||
Product Description
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 094-1509 | [4] | SHAFT | |
| 2. | 114-1401 | [1] | COVER | |
| 3. | 093-1731 | [1] | RING | |
| 4. | 093-1730 | [2] | RING | |
| 5. | 7Y-0595 | [1] | SPACER | |
| 6. | 4I-7463 | [1] | GEAR (Z=20) | |
| 7. | 4I-7527 | [1] | BREATHER AS | |
| 093-5150 | [1] | COUPLING | ||
| 114-8234 | [1] | BREATHER | ||
| 159-7665 | [1] | NIPPLE | ||
| 8. | 114-1399 | [1] | PIPE | |
| 9. | 114-1398 | [1] | GAGE | |
| 10. | 7Y-1238 | [1] | CARRIER | |
| 11. | 8T-6385 | [16] | BOLT (L=180mm) | |
| 12. | 9X-8257 | [16] | WASHER | |
| 13. | 1U-8846 B | GASKET MAKER (12ml) | ||
| 14. | 3K-0360 | [1] | SEAL-O-RING (ID=16.36mm) | |
| 15. | 110-7216 | [1] | GEAR (Z=24) | |
| 16. | 4I-7467 | [1] | GEAR (Z=72) | |
| 17. | 7I-7728 | [1] | CARRIER | |
| 18. | 096-2653 | [1] | RING | |
| 19. | 114-1402 | [1] | HOUSING | |
| 20. | 8T-4183 | [8] | BOLT (L=40mm) | |
| 21. | 8T-4223 | [8] | WASHER-HARD | |
| 22. | 7I-7729 | [1] | SHAFT | |
| 23. | 135-9044 | [2] | SEAL | |
| 24. | 114-1403 | [1] | CAGE | |
| 25. | 5P-2235 | [1] | SEAL-O-RING (ID=240.67mm) | |
| 26. | 095-1806 | [1] | BEARING | |
| 27. | 7Y-0597 | [1] | SPACER | |
| 28. | 096-4339 | [1] | BEARING AS | |
| 29. | 7Y-1434 | [1] | SPACER | |
| 30. | 114-1383 | [4] | SHAFT | |
| 31. | 094-1528 | [8] | WASHER | |
| 32. | 7Y-0339 | [8] | BEARING | |
| 33. | 4I-7466 | [4] | GEAR (Z=23) | |
| 34. | 095-0891 | [4] | PIN | |
| 35. | 095-0886 | [4] | PIN | |
| 36. | 094-1516 | [4] | BEARING | |
| 37. | 4I-7464 | [4] | GEAR (Z=25) | |
| 38. | 094-0584 | [8] | WASHER | |
| 39. | 6V-7238 | [1] | VALVE (SHUTOFF) | |
| B | USE AS REQUIRED | |||
