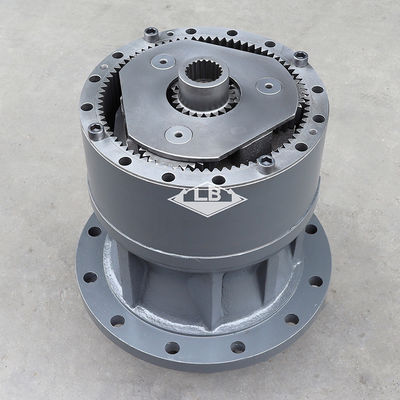

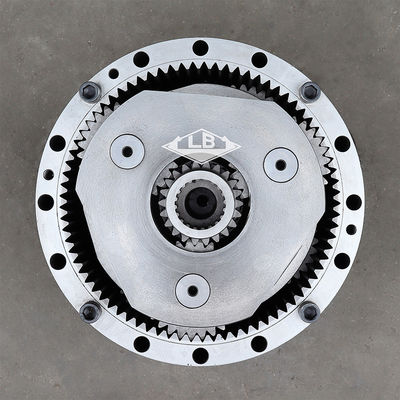

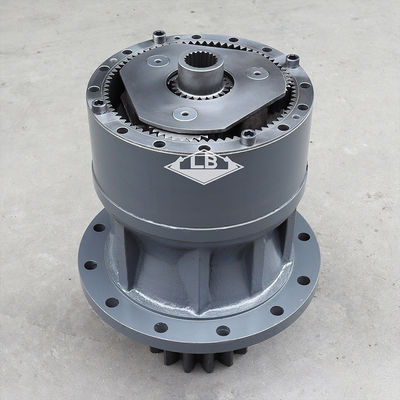

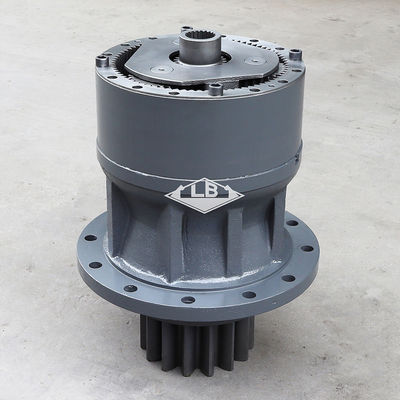

EC380D swing reducer VOE14622901 VOE14680015 EC380 swing gearbox for excavator
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | swing gearbox excavator,swing motor gearbox,swing reduction unit |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | EC380 swing gearbox | |||||
| Equipment | Apply to VOLVO EXCAVATOR | |||||
| Part no. | VOE14622901 VOE14680015 | |||||
| NO.1 sun gear spline teeth | 20 splines | |||||
| Swing pinion shaft teeth | 15T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 350 KG | |||||
| MOQ | 1 pc | |||||
Product Descriptio
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14622901 | [1] | Swing gearbox | ||
| VOE14680015 | Swing gearbox | |||
| 1. | VOE14622865 | [1] | Shaft | |
| 2. | VOE14622869 | [1] | Collar | |
| 3. | VOE14622894 | [1] | Roller bearing | |
| 4. | VOE14622895 | [1] | Plate | |
| 5. | VOE14622896 | [1] | Collar | |
| 6. | VOE14622897 | [1] | Case | |
| 7. | VOE14622898 | [1] | Retaining ring | |
| 8. | VOE14622899 | [1] | Retaining ring | |
| 9. | VOE14596611 | [1] | Seal | |
| 10. | VOE14640028 | [1] | Bearing | |
| 11. | SA9324-21317 | [4] | Pin | |
| 12. | VOE14622914 | [1] | Gear | |
| 13. | VOE14622908 | [1] | Planet carrier | |
| 13A. | VOE14622910 | [4] | Gear | |
| 13B. | VOE14622911 | [4] | Bushing | |
| 13C. | VOE14622912 | [4] | Pin | |
| 14. | VOE14596618 | [4] | Washer | |
| 15. | VOE952004 | [4] | Spring pin | |
| 16. | VOE14622913 | [1] | Gear | |
| 17. | VOE14596621 | [1] | Thrust washer | |
| 18. | VOE14622902 | [1] | Planet carrier | |
| 18A. | VOE14622904 | [0003] | Gear | |
| 18B. | VOE14622905 | [3] | Bushing | |
| 18C. | VOE14622906 | [3] | Pin | |
| 18D. | VOE14596625 | [0006] | Washer | |
| 19. | VOE14622907 | [1] | Gear | |
| VOE14680062 | Gear | |||
| 20. | VOE14596630 | [1] | Cover | |
| VOE14633289 | Cover | |||
| 21. | VOE995261 | [16] | Hex. socket screw | |
| 22. | SA9415-43052 | [2] | Plug | |
| 23. | SA9415-43012 | [1] | Plug | |
| 24. | VOE914167 | [1] | LubriEing nipple | |
| 25. | SA9411-92830 | [2] | Elbow nipple | |
| 26. | VOE14529015 | [1] | Valve | |
| 27. | VOE914472 | Snap ring | ||
| 28. | VOE984138 | [4] | Hex. socket screw | |
| VOE984139 | Hex. socket screw |
