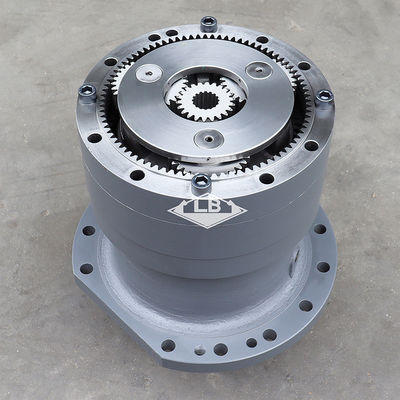

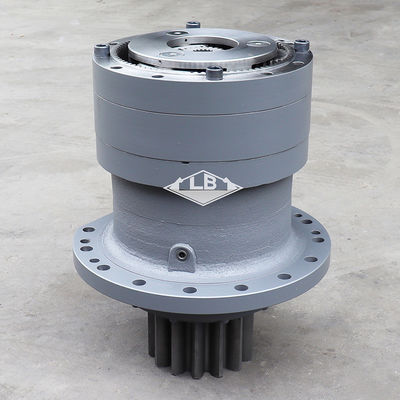

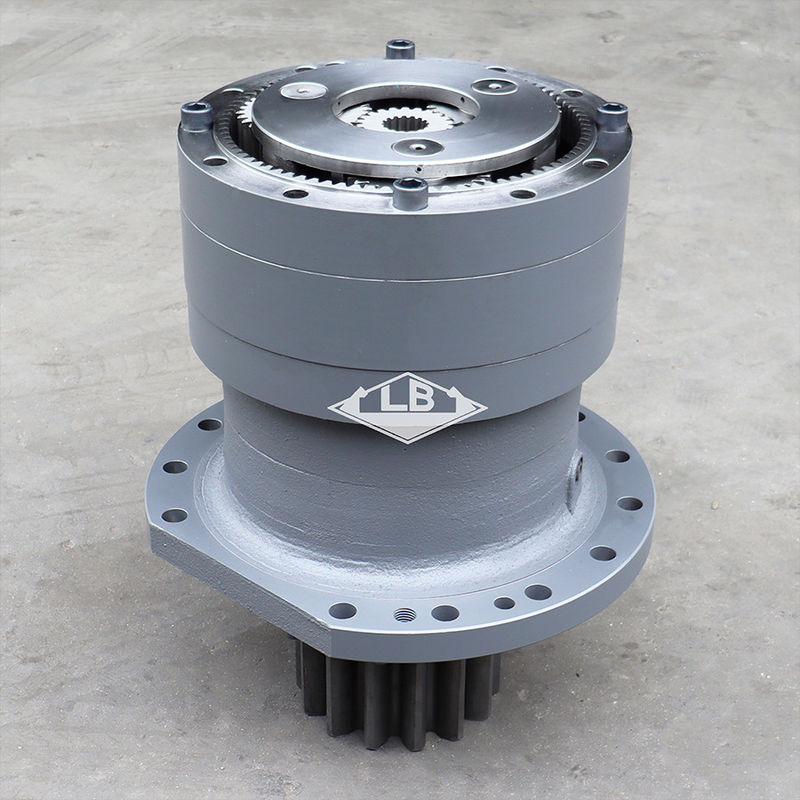

Excavator ZX850-3 ZX870-3 swing device 9250921 ZX870 swing gearbox
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | swing gearbox excavator,swing motor gearbox,swing reduction unit |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | ZX850-3 ZX870-3 swing gearbox | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | 9250921 | |||||
| NO.1 sun gear spline teeth | 16 splines | |||||
| Swing pinion shaft teeth | 14T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||
Product Descriptio

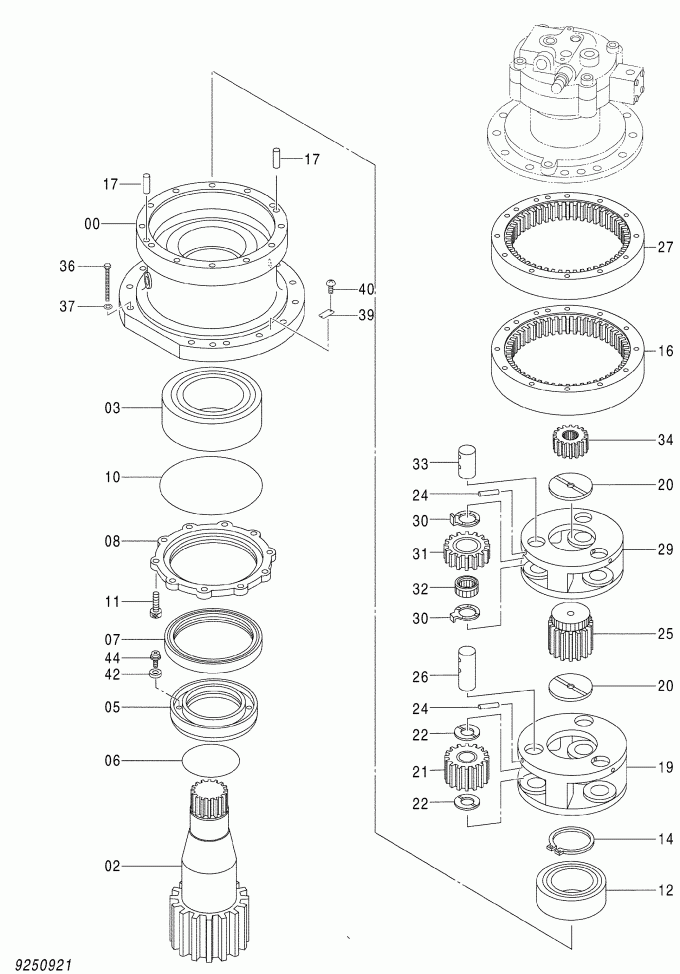

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 9250921 | [1] | T.MISSION (SWING) | ||
| 00. | 1032911 | [1] | HOUSING | |
| 02. | 2036267 | [1] | SHAFT;PROP. | |
| 03. | 4375201 | [1] | BRG.;SPH.ROL. | |
| 05. | 3069880 | [1] | SLEEVE | |
| 06. | 4217350 | [1] | O-RING | |
| 07. | 4424982 | [1] | SEAL;OIL | |
| 08. | 2036875 | [1] | COVER | |
| 10. | 4217351 | [1] | O-RING | |
| 11. | M341240 | [10] | BOLT;SOCKET | |
| 12. | 4375200 | [1] | BRG.;SPH.ROL. | |
| 14. | 991354 | [1] | RING;RETAINING | |
| 16. | 2052428 | [1] | GEAR;INTERNAL | |
| 17. | J401640 | [2] | PIN;KNOCK | |
| 19. | 1020438 | [1] | CARRIER | |
| 20. | 4194454 | [2] | PLATE;THRUST | |
| 21. | 9729474 | [3] | GEAR;PLANETARY | |
| 22. | 4266934 | [6] | PLATE;THRUST | |
| 24. | 986954 | [6] | PIN;SPRING | |
| 25. | 3040887 | [1] | GEAR;SUN | |
| 26. | 4368729 | [3] | PIN | |
| 27. | 2052427 | [1] | GEAR;INTERNAL | |
| 29. | 2036868 | [1] | CARRIER | |
| 30. | 4338181 | [6] | PLATE;THRUST | |
| 31. | 3069820 | [3] | GEAR;PLANETARY | |
| 32. | 4333265 | [3] | BRG.;NEEDLE | |
| 33. | 4216851 | [3] | PIN | |
| 34. | 3069819 | [1] | GEAR;SUN | |
| 36. | J912015 | [12] | BOLT | |
| 37. | A590920 | [12] | WASHER;SPRING | |
| 39. | +++++++ | [1] | NAME-PLATE | |
| 40. | M492564 | [2] | SCREW;DRIVE | |
| 42. | 4204644 | [4] | MAGNET | |
| 44. | J460514 | [4] | SCREW;SEMS |
