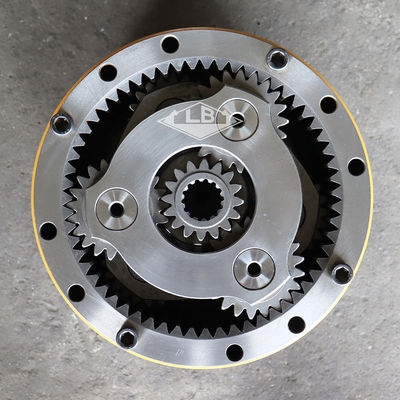

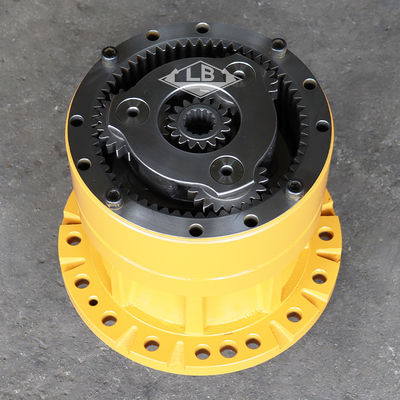

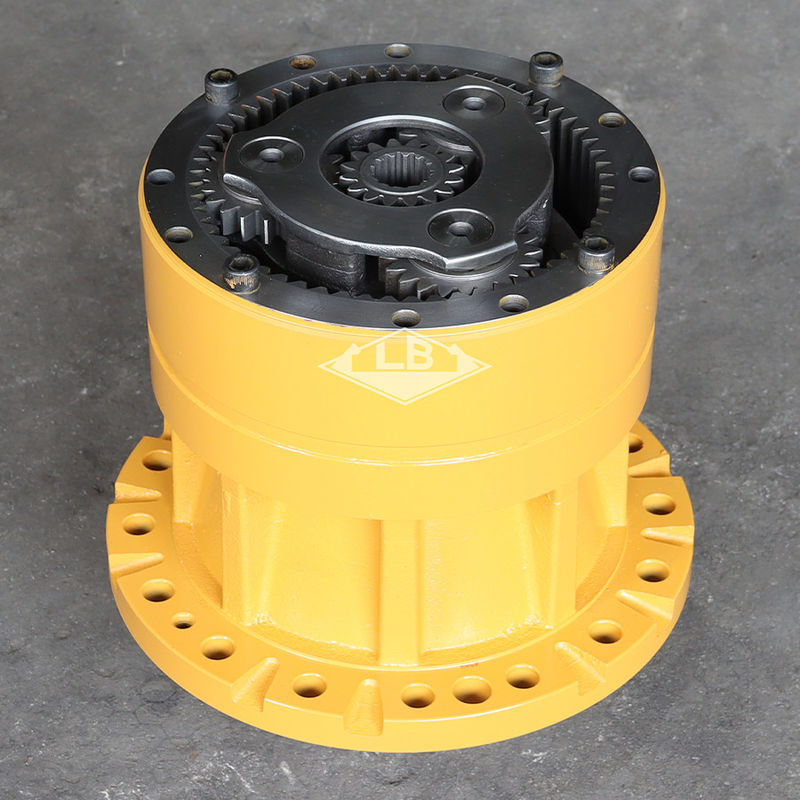

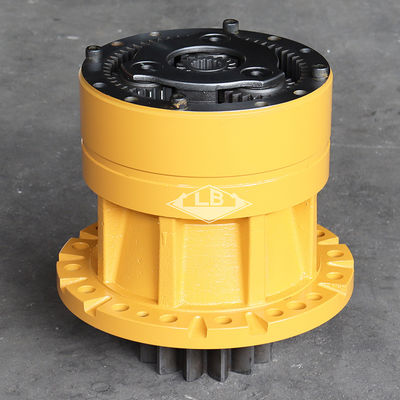

Excavator parts E313D 312D SWING DRIVE 333-3073 3333073 E313D swing gearbox
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | swing gearbox excavator,swing motor gearbox,swing reduction unit |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name |
E313D 312D Swing gearbox | |||||
| Equipment | Apply to EXCAVATOR | |||||
| Part no. | 333-3073 3333073 | |||||
| NO.1 sun gear spline teeth | 14 splines | |||||
| Swing pinion shaft teeth | 13T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 91 KG | |||||
| MOQ | 1 pc | |||||
Product Description
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 093-6089 | [2] | DOWEL | |
| 2. | 191-2602 | [6] | WASHER (32X56X1.2-MM THK) | |
| 3. | 191-2605 | [1] | WASHER (30X75X3-MM THK) | |
| 4. | 191-2608 | [3] | GEAR-PLANETARY | |
| 5. | 191-2609 | [3] | SHAFT-PLANETARY | |
| 6. | 191-2610 | [3] | PIN-SPRING | |
| 7. | 191-2611 | [1] | GEAR-SUN | |
| 8. | 191-2613 | [1] | GEAR-RING | |
| 9. | 199-4627 | [6] | WASHER | |
| 10. | 333-3048 | [1] | CARRIER | |
| 11. | 333-3049 | [3] | GEAR-PLANETARY | |
| 12. | 333-3050 | [3] | BEARING | |
| 13. | 333-3051 | [3] | SHAFT | |
| 14. | 095-0879 | [3] | PIN-SPRING | |
| 15. | 333-3058 | [3] | WASHER-THRUST (30X47X2-MM THK) | |
| 16. | 333-3059 | [3] | RING-RETAINING | |
| 17. | 7X-2619 M | [6] | BOLT (M6X1X10-MM) | |
| 18. | 353-0534 | [1] | BEARING | |
| 19. | 353-0535 | [1] | BEARING | |
| 20. | 353-0536 | [1] | CARRIER-PLANETARY | |
| 21. | 353-0537 | [6] | BEARING | |
| 22. | 353-0538 | [1] | GEAR-SUN | |
| 23. | 353-0539 | [1] | SHAFT-PINION | |
| 24. | 353-0540 | [1] | HOUSING | |
| 25. | 353-0541 | [1] | SEAL-LIP TYPE | |
| 26. | 353-0542 | [1] | SEAL | |
| 27. | 353-0543 | [2] | PLATE | |
| 28. | 095-0929 | [1] | RING-RETAINING |
