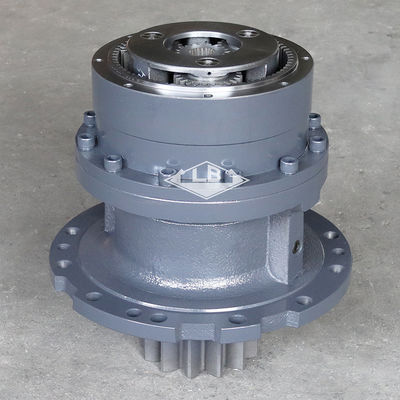

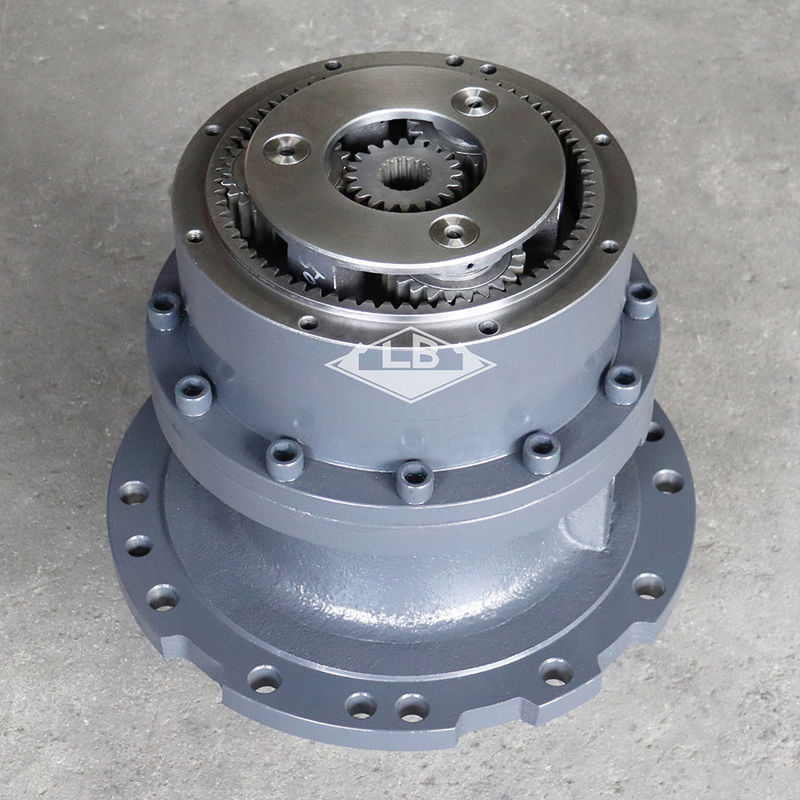

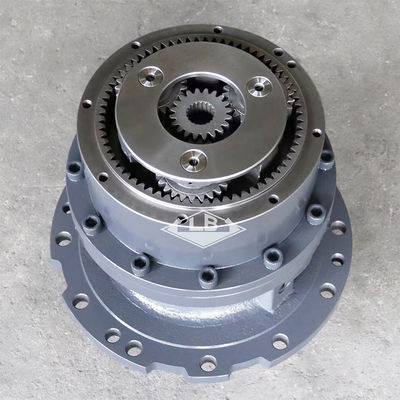

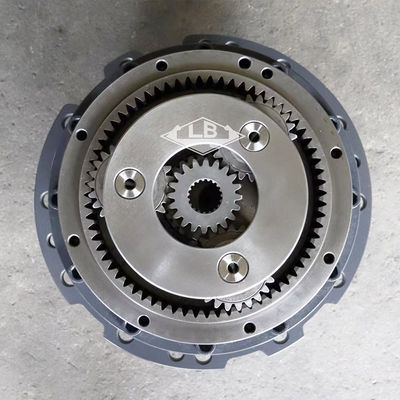

ZX200 swing reducer 9196963 swing device ZX200 swing gearbox for excavator
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | swing gearbox excavator,swing motor gearbox,swing reduction unit |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | ZX200 swing gearbox | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | 9196963 | |||||
| NO.1 sun gear spline teeth | 19 splines | |||||
| Swing pinion shaft teeth | 13T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | KG | |||||
| MOQ | 1 pc | |||||
Product Descriptio
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 01. | 2044634 | [1] | SHAFT;PROP. | |
| 02. | 3083742 | [1] | SLEEVE | |
| 03. | A811120 | [1] | O-RING | |
| 04. | 4402481 | [1] | BRG.;ROL. | |
| 05. | 1027617 | [1] | HOUSING | Y 1032876 |
| 05. | 1032876 | [1] | HOUSING | |
| 06. | 4411535 | [1] | SEAL;OIL | |
| 07. | 4402637 | [1] | BRG.;ROL. | |
| 08. | 3086064 | [1] | NUT | |
| 09. | 4411122 | [1] | PLATE;LOCK | |
| 10. | J901020 | [2] | BOLT | |
| 11. | 1026662 | [1] | CARRIER | |
| 12. | 4187590 | [1] | PLATE;THRUST | |
| 13. | 3084729 | [3] | GEAR;PLANETARY | |
| 14. | 4336929 | [6] | PLATE;THRUST | |
| 15. | 4336925 | [3] | PIN | I 4488904 |
| 15. | 4488904 | [3] | PIN | |
| 16. | 4027427 | [3] | PIN;SPRING | |
| 17. | 4427630 | [6] | BRG.;NEEDLE | I 4461644 |
| 17. | 4461644 | [6] | BRG.;NEEDLE | |
| 17. | 4631475 | [6] | BRG.;NEEDLE | I 4461644 |
| 18. | 3080912 | [1] | GEAR;SUN | |
| 20. | 1025957 | [1] | GEAR;RING | |
| 21. | M341645 | [12] | BOLT;SOCKET | |
| 23. | 1025912 | [1] | CARRIER | |
| 24. | 4403371 | [1] | PLATE;THRUST | |
| 25. | 3082517 | [3] | GEAR;PLANETARY | |
| 26. | 4404506 | [3] | BRG.;NEEDLE | |
| 27. | 4403082 | [3] | PLATE;THRUST | |
| 28. | 4336923 | [3] | PIN | |
| 29. | 4051262 | [3] | PIN;SPRING | |
| 30. | 3084056 | [1] | GEAR;SUN | |
| 33. | 3089362 | [1] | PIPE | |
| 35. | 4445352 | [2] | PLUG | |
| 36. | 94-2012 | [1] | PLUG | |
| 61. | 3090308 | [1] | COVER | (for transportation) |
| 62. | J011230 | [4] | BOLT;SEMS | |
| 62. | J271230 | [4] | BOLT;SEMS | T J901230 |
| J222012 (for transportation) | ||||
| 63. | 3053093 | [1] | NAME-PLATE | (for transportation) |
| 64. | M492564 | [2] | SCREW;DRIVE | (for transportation) |
| 100. | 4398514 | [1] | MOTOR;OIL | |
| 101. | 991342 | [1] | RING;RETAINING | |
| 103. | M341228 | [8] | BOLT;SOCKET | I 4614096 |
| 103. | 4614096 | [8] | BOLT;SOCKET | |
| 104. | 4264452 | [1] | PIPE | |
| 105. | 3074223 | [1] | GAUGE;LEVEL | |
| 106. | 4332658 | [1] | PIPE | |
| 107. | 4343365 | [1] | CAP | |
| 109. | 3053093 | [1] | NAME-PLATE | |
| 110. | M492564 | [2] | SCREW;DRIVE | |
| 200. | 9196963 | [1] | SWING DEVICE | (WITHOUT MOTOR) |
