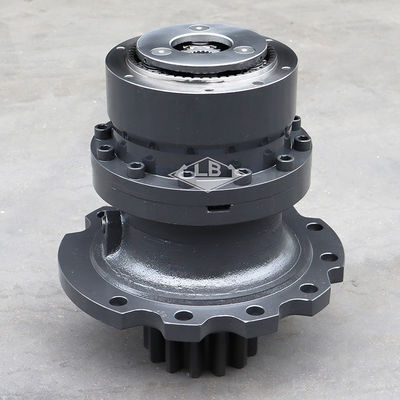

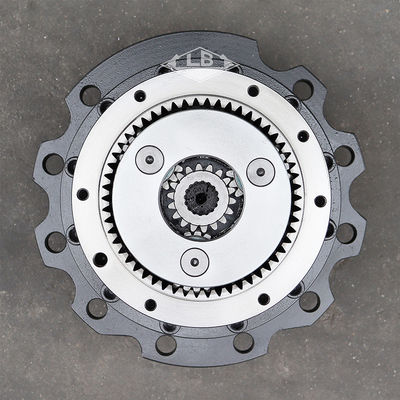

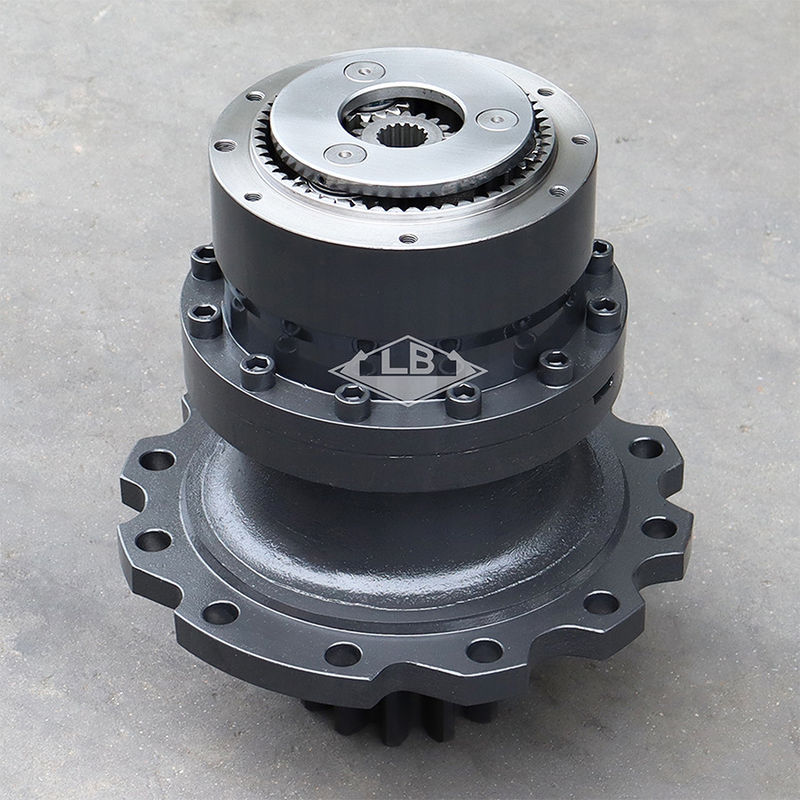

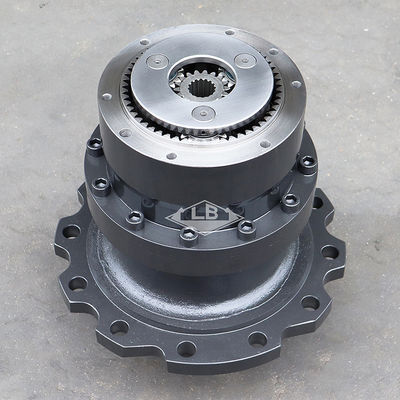

Excavator EX100-5 EX120-5 SWING DEVICE 9148921 EX120-5 swing gearbox for excavator
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | swing gearbox excavator,swing motor gearbox,swing reduction unit |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | EX100-5 EX120-5 swing gearbox | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | 9148921 | |||||
| NO.1 sun gear spline teeth | 16 splines | |||||
| Swing pinion shaft teeth | 13T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 110 KG | |||||
| MOQ | 1 pc | |||||
Product Descriptio
| 2036830 | [1] | SHAFT;PROP. | Y 2028036 | |
| 01. | 2028036 | [1] | SHAFT;PROP. | |
| 02. | 4244693 | [1] | SLEEVE | |
| 03. | A811100 | [1] | O-RING | |
| 04. | 4248609 | [1] | BRG.;SPH.ROL. | |
| 06. | 4244691 | [1] | SEAL;OIL | Y 4424512 |
| 06. | 4424512 | [1] | SEAL;OIL | |
| 07. | 4247567 | [1] | O-RING | |
| 08. | 3058620 | [1] | COVER | |
| 09. | 1020380 | [1] | HOUSING | |
| 11. | J011035 | [8] | BOLT;SEMS | |
| 12. | 4293424 | [1] | BRG.;SPH.ROL. | |
| 13. | 991350 | [1] | RING;RETAINING | |
| 14. | 2036804 | [1] | CARRIER | |
| 16. | 4258089 | [1] | PLATE;THRUST | |
| 17. | 9742788 | [3] | GEAR;PLANETARY | |
| 18. | 4266255 | [6] | PLATE;THRUST | |
| 19. | 4337638 | [3] | PIN | |
| 21. | 4116308 | [6] | PIN;SPRING | |
| 22. | 2036811 | [1] | GEAR;RING | |
| 23. | M341440 | [12] | BOLT;SOCKET | |
| 24. | 3069697 | [1] | GEAR;SUN | |
| 25. | 3069725 | [3] | GEAR;PLANETARY | |
| 26. | 2036832 | [1] | CARRIER | |
| 27. | 4176070 | [1] | PLATE;THRUST | |
| 29. | 4269480 | [6] | PLATE;THRUST | |
| 30. | 4330377 | [3] | BRG.;NEEDLE | |
| 32. | 4337637 | [3] | PIN | |
| 35. | 3069727 | [1] | GEAR;SUN | |
| 36. | 8050210 | [1] | PIPE | |
| 37. | 94-2012 | [1] | PLUG | |
| 60. | 8065302 | [1] | COVER | (FOR TRANSPORTATION) |
| 61. | J011050 | [8] | BOLT;SEMS | (FOR TRANSPORTATION) |
| 62. | 94-2011 | [1] | PLUG | (FOR TRANSPORTATION) |
| 100. | 4330219 | [1] | MOTOR;OIL | |
| 102. | 927488 | [1] | RING;RETAINING | |
| 104. | 4264452 | [1] | PIPE | |
| 106. | 4255227 | [1] | PIPE | |
| 107. | 4298608 | [1] | CAP | |
| 108. | 3053093 | [1] | NAME-PLATE | |
| 109. | M492564 | [2] | SCREW;DRIVE | |
| 110. | M341025 | [7] | BOLT;SOCKET | |
| 111. | 3074223 | [1] | GAUGE;LEVEL | |
| 200. | 9148921 | [1] | SWING DEVICE | (WITHOUT MOTOR) |
