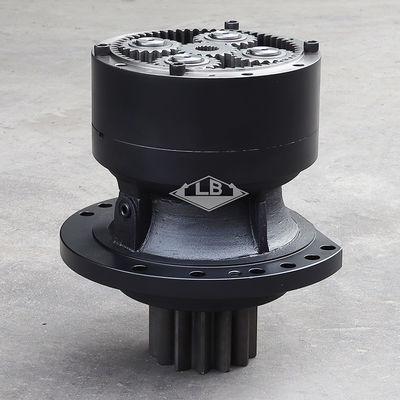

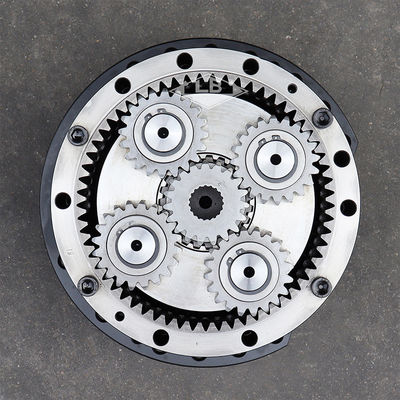

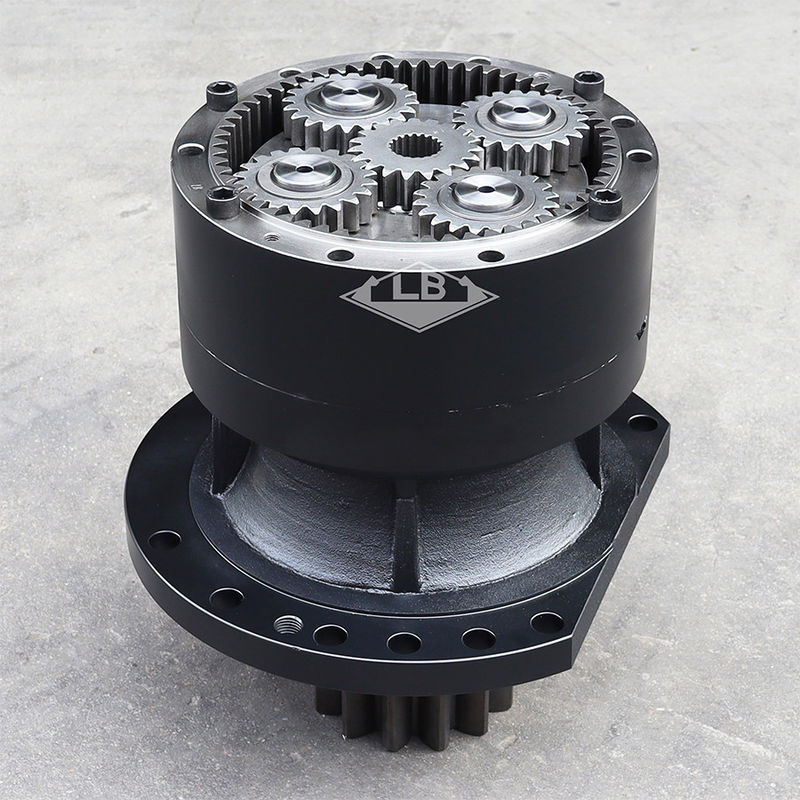

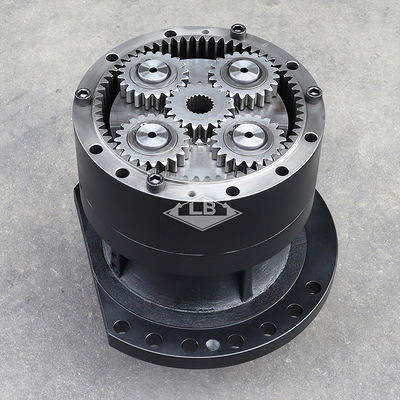

SK200-8 E215B SWING REDUCTION ASSEMBLY YN32W00022F1 SK200-8 swing gearbox for excavator
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | swing gearbox excavator,swing motor gearbox,swing reduction unit |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | SK200-8 swing gearbox | |||||
| Equipment | Apply to Kobelco EXCAVATOR | |||||
| Part no. | YN32W00022F1 | |||||
| NO.1 sun gear spline teeth | 19 splines | |||||
| Swing pinion shaft teeth | 13T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 160 KG | |||||
| MOQ | 1 pc | |||||
Product Descriptio
| YN32W00022F1 | [1] | GEAR REDUCTION UNIT | SM Swing Reduction Assembly Superseded by part number: YN32W00022F2 | |
| 1. | YN32W01051P1 | [1] | SHAFT | SM |
| 2. | YN32W01052P1 | [1] | GEAR | SM |
| 3. | YN32W01117P1 | [4] | GEAR | SM Pinton |
| 4. | YN32W01054P1 | [1] | GEAR | SM |
| 5. | YN32W01055P1 | [4] | GEAR | SM |
| 6. | YN32W01056P1 | [1] | RING GEAR | SM |
| 7. | YN32W01118F1 | [1] | SPIDER | SM Inludes, Refs. 7-1 & 7.2 |
| 7-1. | YN32W01119P1 | [1] | Spider | |
| 7-4. | YN32W01120P1 | [1] | Shaft | |
| 8. | YN32W01058P1 | [1] | CARRIER,Housing, Spider | SM |
| 9. | YN32W01067P1 | [4] | SHAFT | SM |
| 10. | YN32W01030P1 | [1] | SPHERICAL BEARING | KOB Superseded by part number: 25Z804D18 |
| 11. | YN32W01029P1 | [1] | SPHERICAL BEARING | KOB Superseded by part number: R25P0047D9 |
| 12. | YN32W01060P1 | [1] | OIL SEAL | SM |
| 13. | YN32W01104P1 | [1] | BOX | SM Superseded by part number: YN32W00022F2 |
| 14. | YN32W01026P1 | [4] | THRUST WASHER | KOB |
| 15. | YN32W01028P1 | [4] | THRUST WASHER | KOB |
| 16. | YN32W01022P1 | [136] | ROLLER | KOB |
| 17. | YN32W01072P1 | [4] | NEEDLE BEARING | SM |
| 18. | YN32W01063P1 | [8] | WASHER | SM |
| 19. | ZR16X03500 | [1] | RING | KOB Retaining -- ID 32.20 x OD 35 x Th 1.6mm |
| 20. | ZR16X09000 | [1] | RING | KOB Retaining -- ID 84.50 x OD 108 x Th 3.0mm |
| 21. | YN32W01082P1 | [1] | SLEEVE | SM |
| 22. | ZP26D08025 | [4] | PIN | KOB OD 08 x 25mm Long |
| 23. | HS23C14135G1 | [11] | SCREW,M14 x 135mm | SM M14x2.0x135mm |
| 24. | PV02B01073DB | [2] | CAP | KOB 18.4mm Plastic |
| 25. | YN32W01080D1 | [1] | RIGID TUBE | SM 1/2" PT x 112mm Long |
| 26. | ZG31U08000 | [1] | HYD CONNECTOR | SM 1/2" PT |
| 27. | ZE82T08000 | [1] | PLUG | KOB 1/2" PT |
| 28. | ZR16X04000 | [4] | RING | KOB Retaining -- ID 37 x OD 40 x Th 1.8mm |
| 29. | YN32W01081P1 | [1] | OIL SEAL | SM |
| 30. | ZG91V02000 | [1] | LUBE NIPPLE | KOB 67°x1/8" PT |
| 31. | 2444Z3305 | [1] | BREATHER | KOB |
