13T 9148922 Ex200-5 Swing Gearbox EX200-5 Swing Drive For Hitachi Excavator
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | 13T Swing Gearbox,9148922 Ex200-5Swing Gearbox,EX200-5 Swing Drive For Hitachi |
||
|---|---|---|---|
Product Description

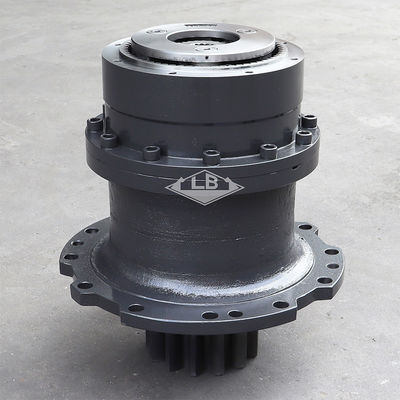

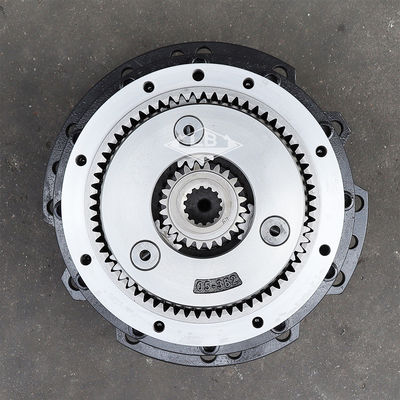

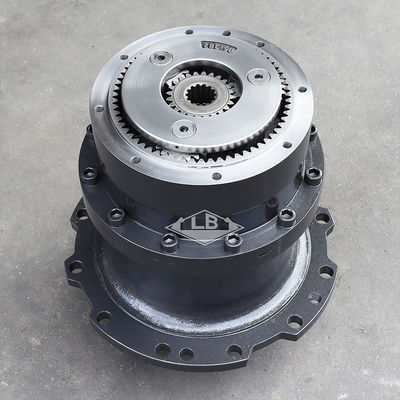

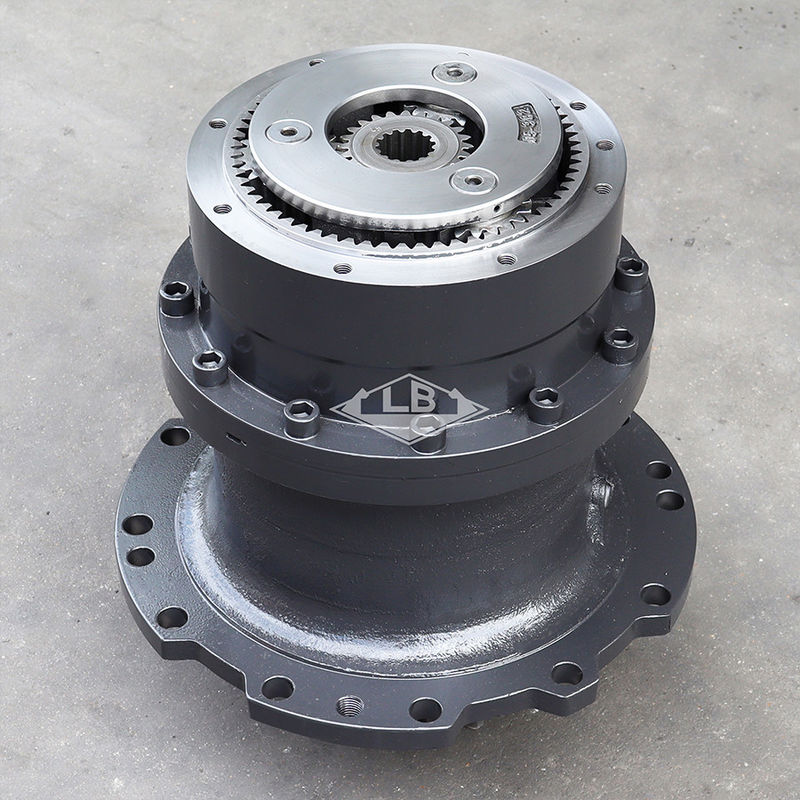

EX200-5 Swing Drive 9148922 Ex200-5 Swing Gearbox For Hitachi Excavator
PRODUCT PARAMETERS
| Part name | EX200-5 swing gearbox | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | 9148922 | |||||
| NO.1 sun gear spline teeth | 14 splines | |||||
| Swing pinion shaft teeth | 13T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 185 KG | |||||
| MOQ | 1 pc | |||||
Product Descriptio

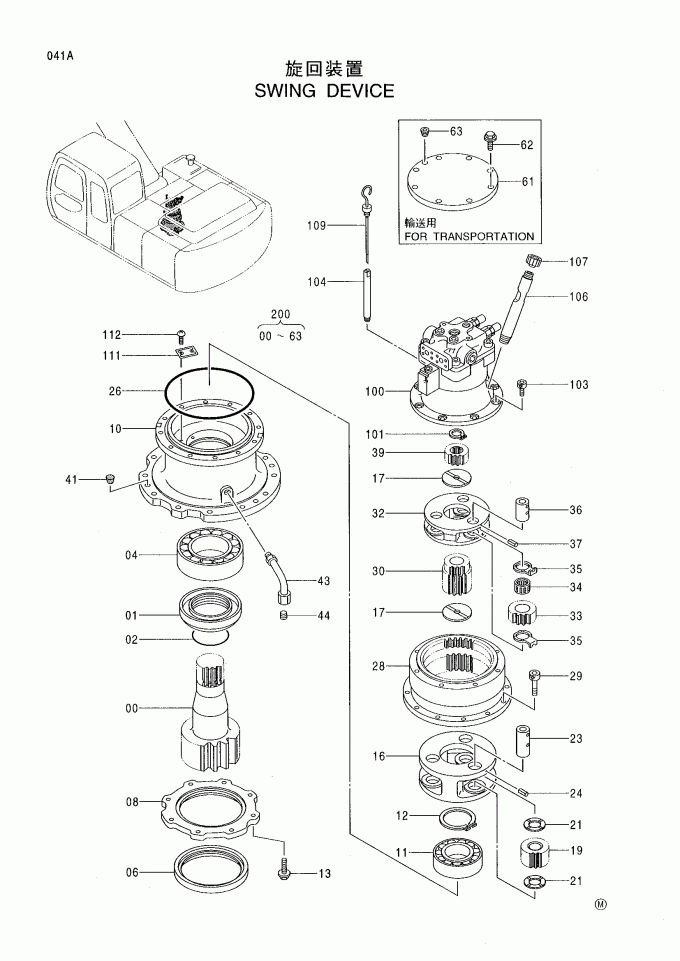

Parts on group SWING DEVICE:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00. | 2036775 | [1] | SHAFT;PROP. | |
| 01. | 3045362 | [1] | SLEEVE | |
| 02. | A811120 | [1] | O-RING | |
| 04. | 4281798 | [1] | BRG.;SPH.ROL. | |
| 06. | 4246275 | [1] | SEAL;OIL | |
| 08. | 3060672 | [1] | COVER | |
| 10. | 1020333 | [1] | HOUSING | |
| 11. | 4364756 | [1] | BRG.;ROL. | |
| 12. | 991352 | [1] | RING;RETAINING | |
| 13. | J011240 | [8] | BOLT;SEMS | |
| 16. | 1020329 | [1] | CARRIER | |
| 17. | 4176073 | [2] | PLATE;THRUST | |
| 19. | 9742777 | [3] | GEAR;PLANETARY | |
| 21. | 4266933 | [6] | PLATE;THRUST | |
| 23. | 4336925 | [3] | PIN | |
| 24. | 4027427 | [3] | PIN;SPRING | |
| 26. | 4337206 | [1] | O-RING | |
| 28. | 1019790 | [1] | GEAR;RING | |
| 29. | M341645 | [12] | BOLT;SOCKET | |
| 30. | 3069514 | [1] | GEAR;SUN | |
| 32. | 1020328 | [1] | CARRIER | |
| 33. | 3069510 | [3] | GEAR;PLANETARY | |
| 34. | 4336945 | [3] | BRG.;NEEDLE | |
| 35. | 4336926 | [6] | PLATE;THRUST | |
| 36. | 4336923 | [3] | PIN | |
| 37. | 4051262 | [3] | PIN;SPRING | |
| 39. | 3069512 | [1] | GEAR;SUN | |
| 41. | 425176 | [2] | CORK | |
| 43. | 8060496 | [1] | PIPE | |
| 44. | 94-2013 | [1] | PLUG | |
| 61. | 8053414 | [1] | COVER | (for transportation) |
| 62. | J011250 | [8] | BOLT;SEMS | (for transportation) |
| 63. | 94-2011 | [1] | PLUG | (for transportation) |
| 100. | 4330222 | [1] | MOTOR;OIL | |
| 101. | 962002 | [1] | RING;RETAINING | |
| 103. | M341228 | [8] | BOLT;SOCKET | |
| 104. | 4264452 | [1] | PIPE | |
| 106. | 4332658 | [1] | PIPE | |
| 107. | 4343365 | [1] | CAP | |
| 109. | 3074223 | [1] | GAUGE;LEVEL | |
| 111. | 3053093 | [1] | NAME-PLATE | |
| 112. | M492564 | [2] | SCREW;DRIVE | |
| 200. | 9148922 | [1] | SWING DEVICE | (WITHOUT MOTOR) |
