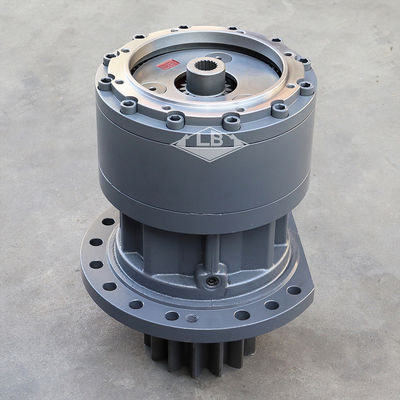

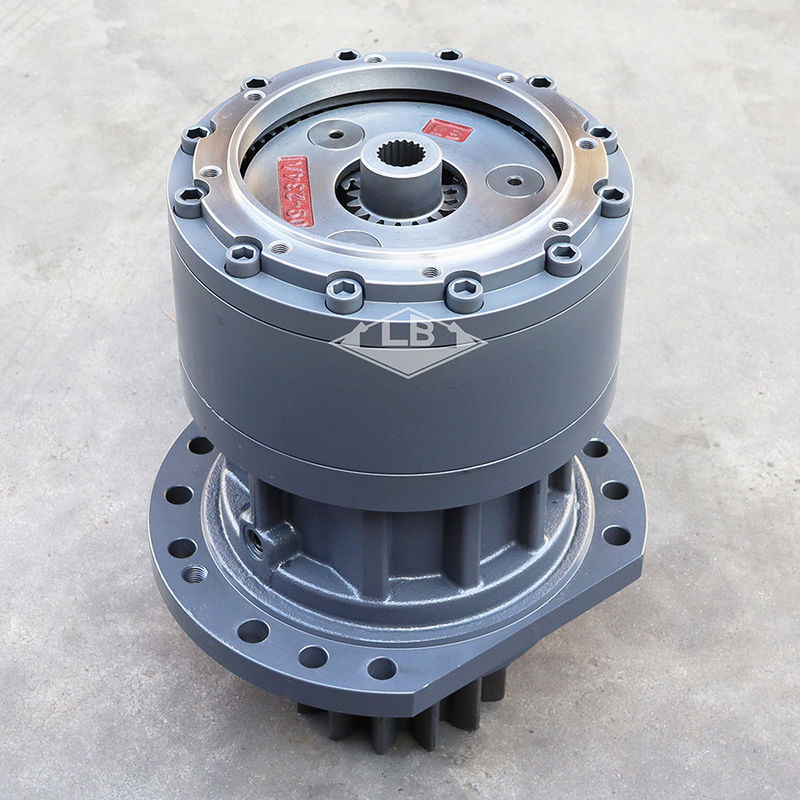

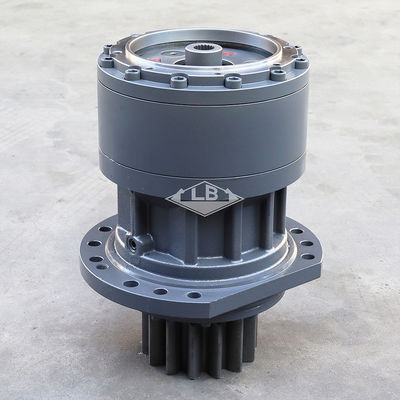

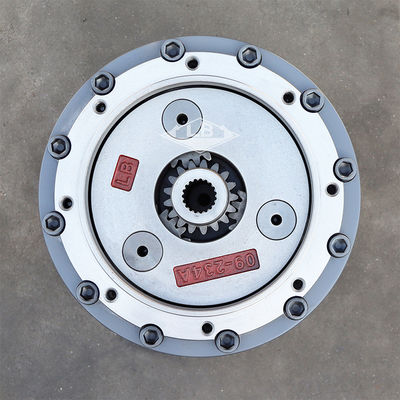

SA7118-30130 SA7118-30140 Swing Gearbox VOE14541030 VOE14521444 EC460
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | SA7118-30130 swing motor gearbox,SA7118-30140 swing motor gearbox,swing drive gearbox VOE14541030 |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | EC460 EC4 swing gearbox | |||||
| Equipment | Apply to VOLVO EXCAVATOR | |||||
| Part no. | SA7118-30130 SA7118-30140 VOE14541030 VOE14521444 | |||||
| NO.1 sun gear spline teeth | 19 splines | |||||
| Swing pinion shaft teeth | 14T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 200 KG | |||||
| MOQ | 1 pc | |||||
Product Descriptio
Parts on group Swing gearbox:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| SA7118-30140 | [1] | Gearbox | SER NO 10001-10410 | |
| VOE14521444 | [1] | Gearbox | SER NO 10411-11387 | |
| VOE14541030 | [1] | Swing gearbox | SER NO 11388- | |
| 1. | SA1020-02081 | [1] | Valve | |
| 2. | SA7118-30500 | [1] | Shaft | SER NO 10001-11387 |
| VOE14540404 | [1] | Shaft | SER NO 11388- | |
| 3. | VOE14509280 | [1] | Collar | SER NO 10001-11387 |
| VOE14540405 | [1] | Collar | SER NO 11388- | |
| 4. | VOE14509281 | [1] | Cover | |
| 5. | VOE990596 | [1] | O-ring | |
| 6. | VOE14508911 | [1] | Seal | |
| 7. | VOE993025 | [10] | Hexagon screw | |
| 8. | VOE14640027 | [1] | Roller bearing | |
| 9. | VOE14558674 | [1] | Roller bearing | |
| 10. | SA9541-01090 | [1] | Retaining ring | |
| 11. | SA7118-30510 | [1] | Case | |
| 12. | SA7118-30350 | [1] | Ring gear | |
| 13. | VOE950677 | [4] | Pin | |
| 14. | SA984363 | [12] | Bolt | |
| 15. | SA7118-30370 | [1] | Plate | |
| 16. | SA7118-30380 | [1] | Thrust ring | |
| 17. | SA7118-30390 | [1] | Gear | |
| 18. | SA7118-30480 | [1] | Washer | |
| 19. | SA7118-30490 | [1] | Sun gear | |
| 20. | SA7118-34510 | [1] | Adapter | |
| 21. | SA7118-30200 | [1] | Planet carrier | |
| 22. | SA7118-30230 | [3] | Pin | |
| 23. | SA7118-30260 | [6] | Washer | |
| 24. | SA9325-08010 | [3] | Spring pin | |
| 25. | VOE14528725 | [1] | Planet carrier | |
| 26. | SA7118-30430 | [3] | Pin | |
| 27. | VOE14550879 | [3] | Needle bearing | |
| 28. | SA7118-30450 | [3] | Washer | |
| 29. | SA7118-30460 | [3] | Washer | |
| 30. | SA9541-01042 | [3] | Retaining ring | |
| 31. | SA9325-08010 | [3] | Spring pin | |
| 100. | VOE14526214 | [1] | Overhaul kit |
