31N8-10180 31N8-10181 R305-7 Swing Gearbox R290-7 R300-7 R305-7 Swing Reduction Gear
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | 31N8-10180 Swing Gearbox,31N8-10181 Swing Gearbox,R305-7 Swing Reduction Gear |
||
|---|---|---|---|
Product Description

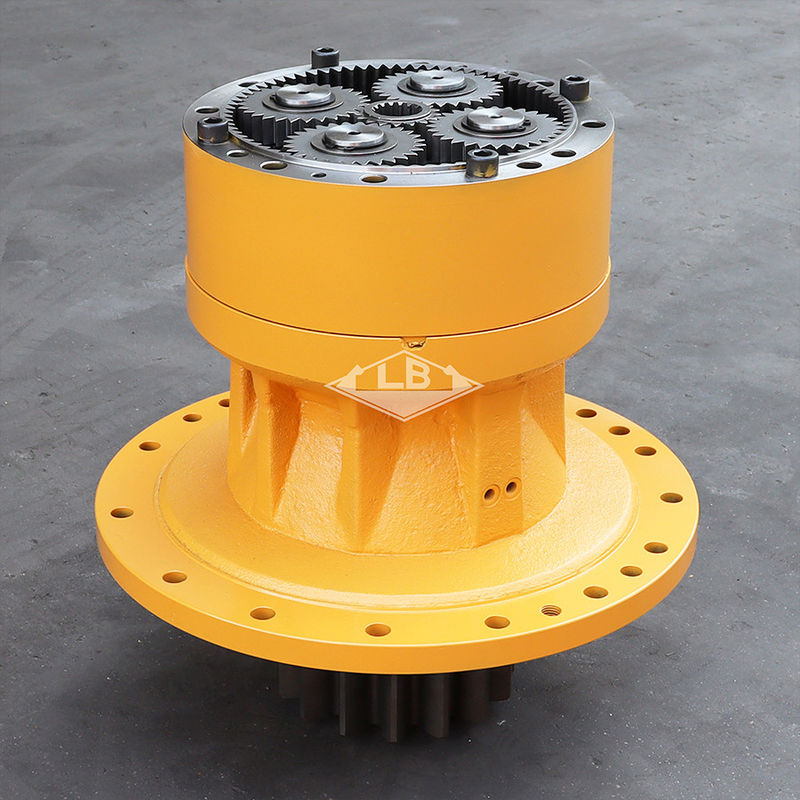

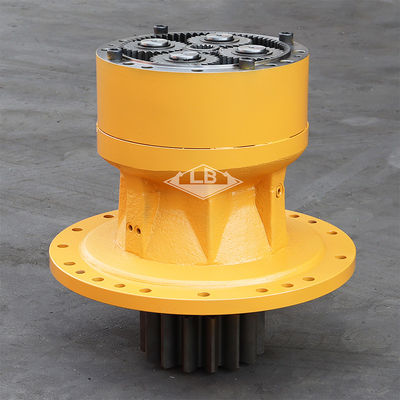

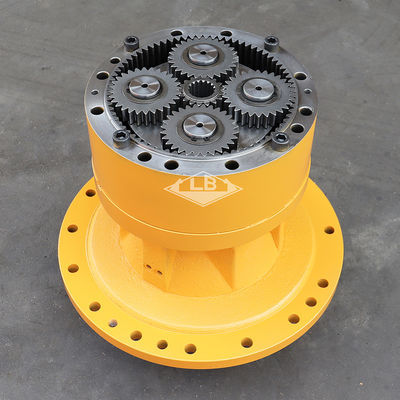

R290-7 R300-7 R305-7 Swing reduction gear 31N8-10180 31N8-10181 R305-7 swing gearbox
PRODUCT PARAMETERS
| Part name | R290-7 R300-7 R305-7 Swing gearbox | |||||
| Equipment | Apply to HYUNDAI EXCAVATOR | |||||
| Part no. | 31N8-10180 31N8-10181 | |||||
| NO.1 sun gear spline teeth | 16 splines | |||||
| Swing pinion shaft teeth | 15T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 345 KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts on group SWING REDUCTION GEAR(TYPE 1, #0479-):
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| *. | @ | [1] | SWING MOTOR ASSY | SEE 4101 |
| *-2. | 31N8-10180 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31N8-10181 | [1] | SWING REDUCTION GEAR | |
| 1. | XKAQ-00427 | [1] | CASING | |
| 2. | XKAQ-00428 | [1] | SHAFT-DRIVE | |
| 2. | XKAQ-00759 | [1] | SHAFT-DRIVE | |
| 3. | XKAQ-00117 | [1] | BEARING-ROLLER | |
| 4. | XKAQ-00119 | [1] | SEAL-OIL | |
| 5. | XKAQ-00120 | [1] | BEARING-ROLLER | |
| 6. | XKAQ-00429 | [1] | CARRIER ASSY-2 | |
| 7. | XKAQ-00430 | [1] | CARRIER-2 | |
| 8. | XKAQ-00431 | [4] | GEAR-PLANET-2 | |
| 9. | XKAQ-00432 | [4] | PIN ASSY-2 | |
| N10. | XKAQ-00433 | [1] | PIN-2 | |
| N11. | XKAQ-00434 | [1] | BUSHING-2 | |
| 12. | XKAQ-00435 | [8] | WASHER-THRUST | |
| 13. | XKAQ-00050 | [4] | PIN-SPRING | |
| 14. | XKAQ-00436 | [1] | GEAR-SUN-2 | |
| 15. | XKAQ-00437 | [1] | CARRIER ASSY-1 | |
| 16. | XKAQ-00438 | [1] | CARRIER-1 | |
| 17. | XKAQ-00439 | [4] | GEAR-PLANET-1 | |
| 18. | XKAQ-00440 | [4] | PIN ASSY 1 | |
| N19. | XKAQ-00441 | [1] | PIN 1 | |
| N20. | XKAQ-00079 | [1] | BUSHING 1 | |
| 21. | XKAQ-00417 | [4] | PLATE 1-SIDE | |
| 22. | XKAQ-00416 | [4] | PLATE 2-SIDE | |
| 23. | XKAQ-00041 | [4] | RING-STOP | |
| 24. | XKAQ-00048 | [4] | PIN-SPRING | |
| 25. | XKAQ-00442 | [1] | GEAR-SUN-1 | |
| 26. | XKAQ-00444 | [1] | GEAR-RING | |
| 27. | XKAQ-00443 | [1] | PLATE-COVER | |
| 28. | XKAQ-00445 | [1] | SPACER | |
| 28. | XKAQ-00758 | [1] | SPACER | |
| 29. | XKAQ-00446 | [1] | RING-SPACER | |
| 30. | XKAQ-00072 | [2] | PIN-KNOCK | |
| 31. | XKAQ-00447 | [1] | PLATE 3-THRUST | |
| 32. | XKAQ-00013 | [1] | GEAR-PINION | |
| 33. | XKAQ-00043 | [1] | PLATE-LOCK | |
| 33. | XKAQ-00757 | [1] | PLATE-LOCK | |
| 34. | XKAQ-00064 | [8] | BOLT-HEX | |
| 35. | XKAQ-00042 | [2] | BOLT-HEX | |
| 35. | XKAQ-00756 | [4] | BOLT-HEX | |
| 36. | XKAQ-00292 | [1] | WASHER-LOCK | |
| 37. | XKAQ-00448 | [12] | BOLT-SOCKET | |
| 38. | XKAQ-00049 | [1] | PLUG | |
| 39. | XKAQ-00066 | [2] | PLUG | |
| 40. | XKAQ-00167 | [1] | PIPE-GAUGE | |
| 41. | XKAQ-00449 | [1] | BAR-GAGE | |
| 42. | XKAQ-00143 | [1] | POST-AIR BREATHER |
