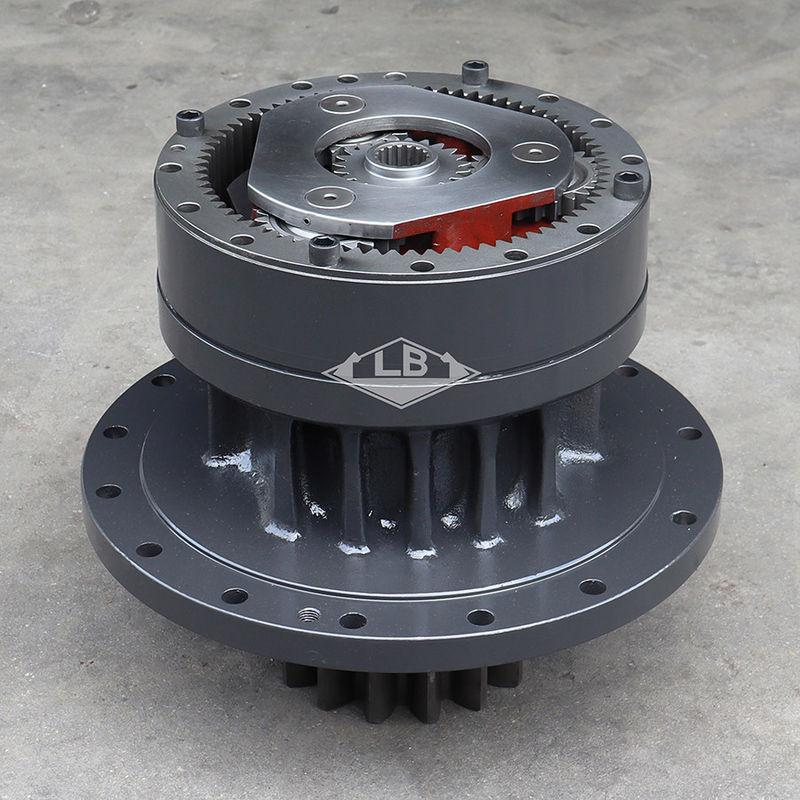

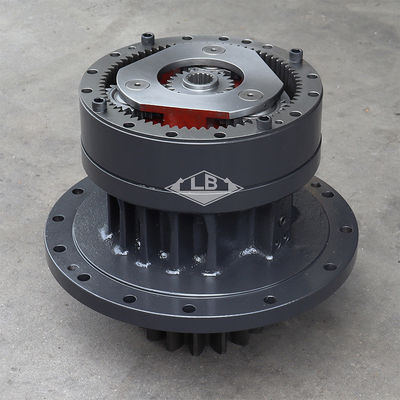

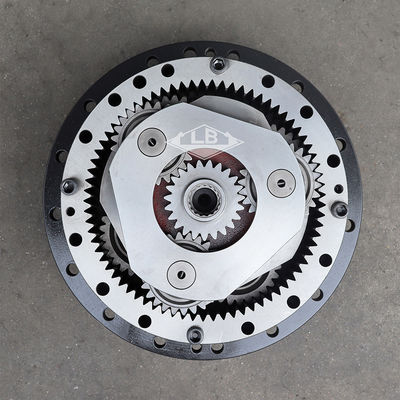

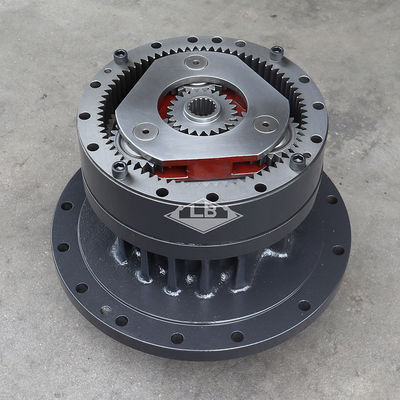

VOE14566202 VOE14724042 EC240 Swing Drive Gearbox EC240 EC250 SWING REDUCER
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | VOE14566202 swing drive gearbox,VOE14724042 EC240 swing drive gearbox,EC240 EC250 SWING REDUCER |
||
|---|---|---|---|
Product Description
PRODUCT PARAMETERS
| Part name | EC240 EC250 Swing gearbox | |||||
| Equipment | Apply to VOLVO EXCAVATOR | |||||
| Part no. | VOE14566202 VOE14724042 | |||||
| NO.1 sun gear spline teeth | 23 splines | |||||
| Swing pinion shaft teeth | 15T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 325 KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts on group Swing gearbox:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14566202 | [1] | Swing gearbox | ||
| VOE14566202 | Swing gearbox | S/N -231281, -245014, -270803, -280131 | ||
| VOE14724042 | Swing gearbox | S/N 231282-, 245015-, 270804-, 280132- | ||
| 1. | VOE14566206 | [1] | Case | |
| 2. | VOE14552874 | [1] | Ring | |
| 3. | VOE14566204 | [1] | Collar | |
| 4. | VOE14566203 | [1] | Shaft | |
| 5. | VOE14566205 | [1] | Cover | |
| 6. | VOE14566209 | [1] | Gear | |
| 7. | VOE947324 | [16] | Hex. socket screw | |
| 8. | VOE984088 | [12] | Hex. socket screw | |
| 9. | VOE14552875 | [1] | Roller bearing | |
| 10. | SA9415-43012 | [1] | Plug | |
| 11. | VOE914167 | [1] | LubriEing nipple | |
| 12. | VOE14566207 | [1] | Seal | |
| 13. | VOE14566208 | [1] | Roller bearing | |
| 14. | VOE914492 | [1] | Snap ring | |
| 15. | SA7118-30380 | [1] | Thrust ring | |
| 16. | VOE14566216 | [1] | Gear | |
| 17. | VOE14880960 | [1] | Retaining ring | |
| 18. | VOE14566222 | [1] | Gear | |
| 19. | VOE14547278 | [1] | Thrust washer | |
| 20. | VOE14540733 | [1] | Pipe | |
| 21. | VOE14566210 | [1] | Planet carrier | |
| 22. | VOE14566211 | [1] | Planet carrier | |
| 23. | VOE14566215 | [4] | Pin | |
| 24. | VOE14566212 | [4] | Gear | |
| 25. | VOE14566213 | [4] | Bushing | |
| 26. | VOE14556491 | [8] | Washer | |
| 27. | SA9325-06012 | [4] | Spring pin | |
| 28. | VOE14566217 | [1] | Planet carrier | |
| 29. | VOE14566218 | [1] | Planet carrier | |
| 30. | VOE14566219 | [3] | Gear | |
| 31. | VOE14566220 | [3] | Bearing | |
| 32. | VOE14566221 | [3] | Pin | |
| 33. | SA9325-06012 | [3] | Spring pin | |
| 34. | VOE14556491 | [6] | Washer | |
| 35. | VOE950677 | [2] | Pin | |
| 36. | VOE949329 | [1] | Gasket | |
| 37. | VOE14722461 | [1] | Draining valve |
